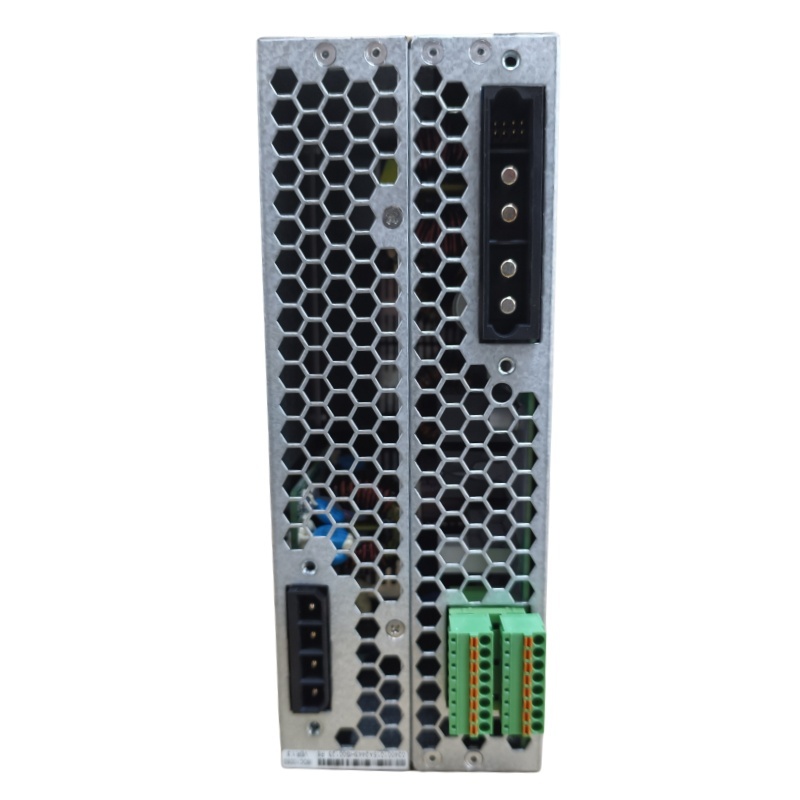

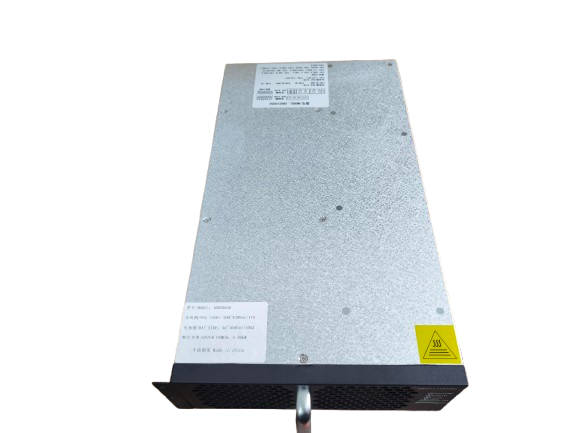

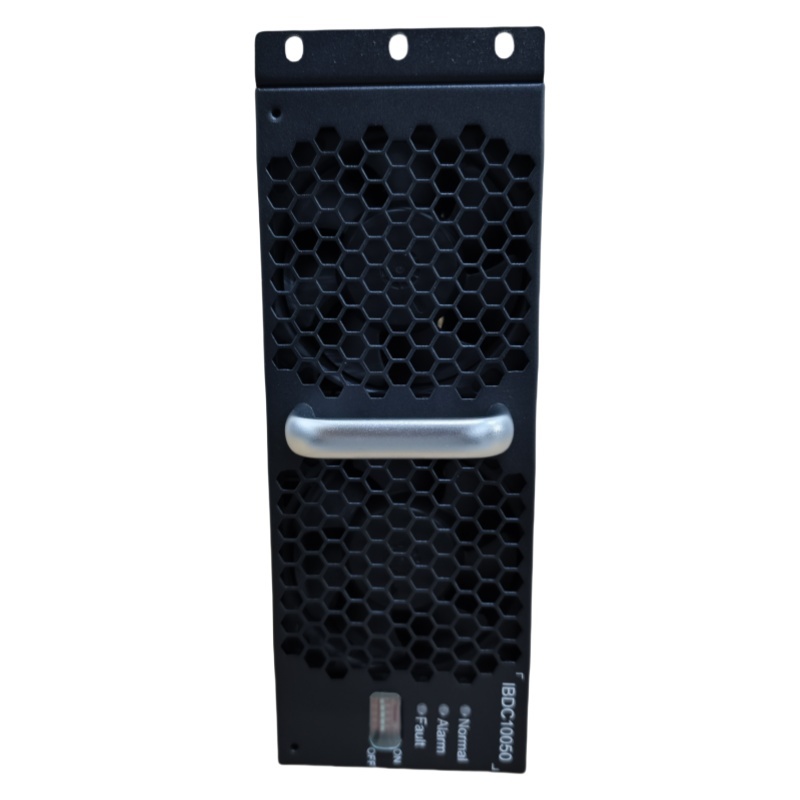

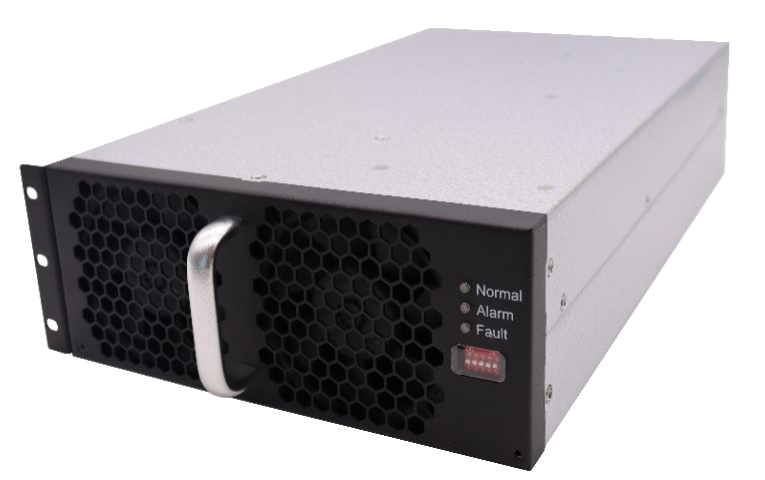

Bidirectional DC/DC BADC10050 Parallel Expansion
Product Name | BADC10050 Bidirectional DCDC Module |
DC bus side | |
Voltage range | 200 ~ 420Vdc |
Rated voltage | 370Vdc |
Max Current | 17 Amax (at 200~290 Vdc, ≤12 A) |
Battery-side | |
Voltage range | 30~100Vdc |
Rated voltage | 60Vdc |
Max Current | 105Amax |
Power rating | 5kW |
Steady-current accuracy | ≤±5% |
Current ripple | <5% |
Voltage ripple | < 2% |
Polarized.. | 450 |
Softstart time | 3s≤ t ≤8s |
Standby power consumption | <30W (Vbat=100Vdc, module dormant) |
