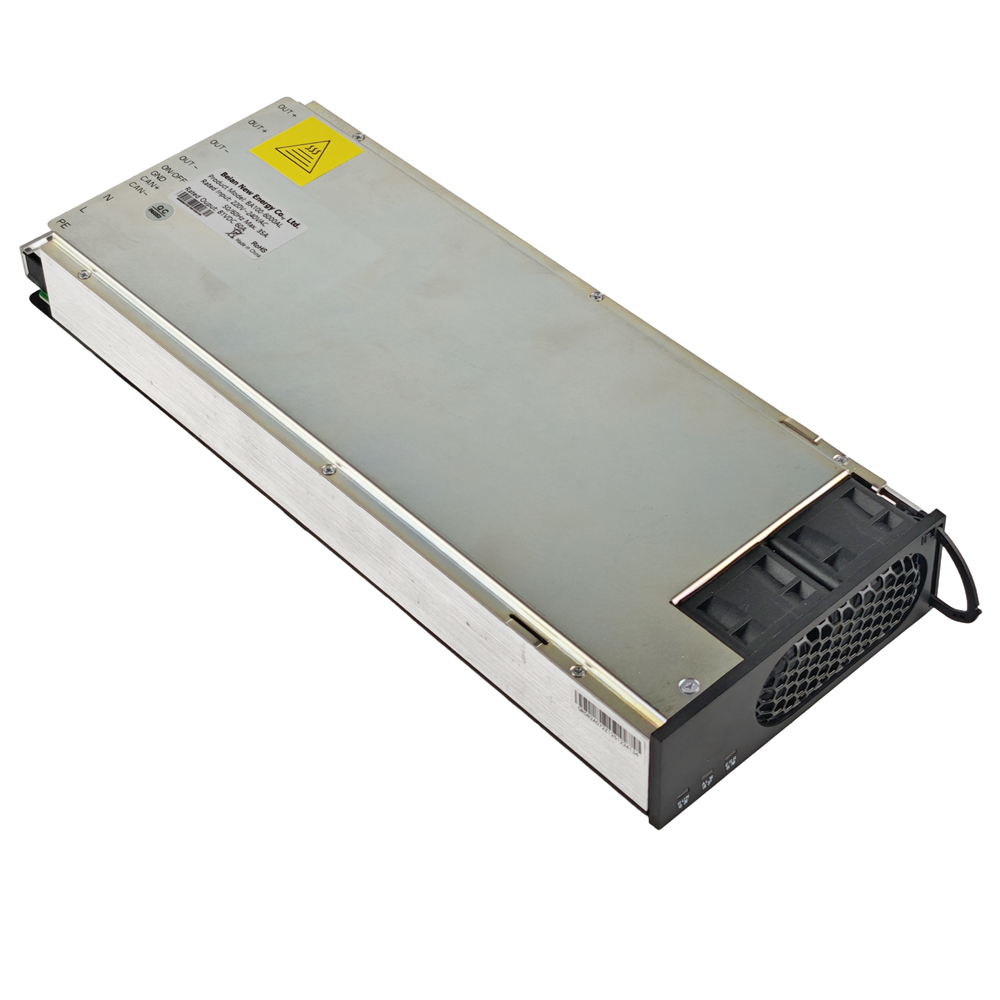

| Item | BA150-6000AL |
|---|---|
| Rated output power | 6 kW |
| Rated output current | 40 A |
| Output voltage range | DC 50V ~ 150V (adjustable) |
| Efficiency | ≥ 94% |
| AC input (phase / voltage) | Single phase, rated AC 220V (L / N / PE) |
| Input voltage range | AC 187V~264V (full power) · AC 85V~187V (reduced output) |
| Input frequency | 45 Hz ~ 65 Hz |
| Power factor | ≥ 0.99 |
| Control mode | Fully digital control |
| Communication | CAN bus |
| Cooling | Built-in fan (front-panel replaceable) |
| Working ambient temperature | -40 ~ +50°C (50 ~ 75°C with reduced output) |
| Storage temperature | -40 ~ +70°C |
| Relative humidity | 0 ~ 95% RH |
| Altitude | < 2000 m (> 2000 m with reduced output) |
| MTBF | > 120,000 hours |
| Dimensions (L×W×H) | 332 × 124 × 41.5 mm |
| Net weight | 2.7 kg |

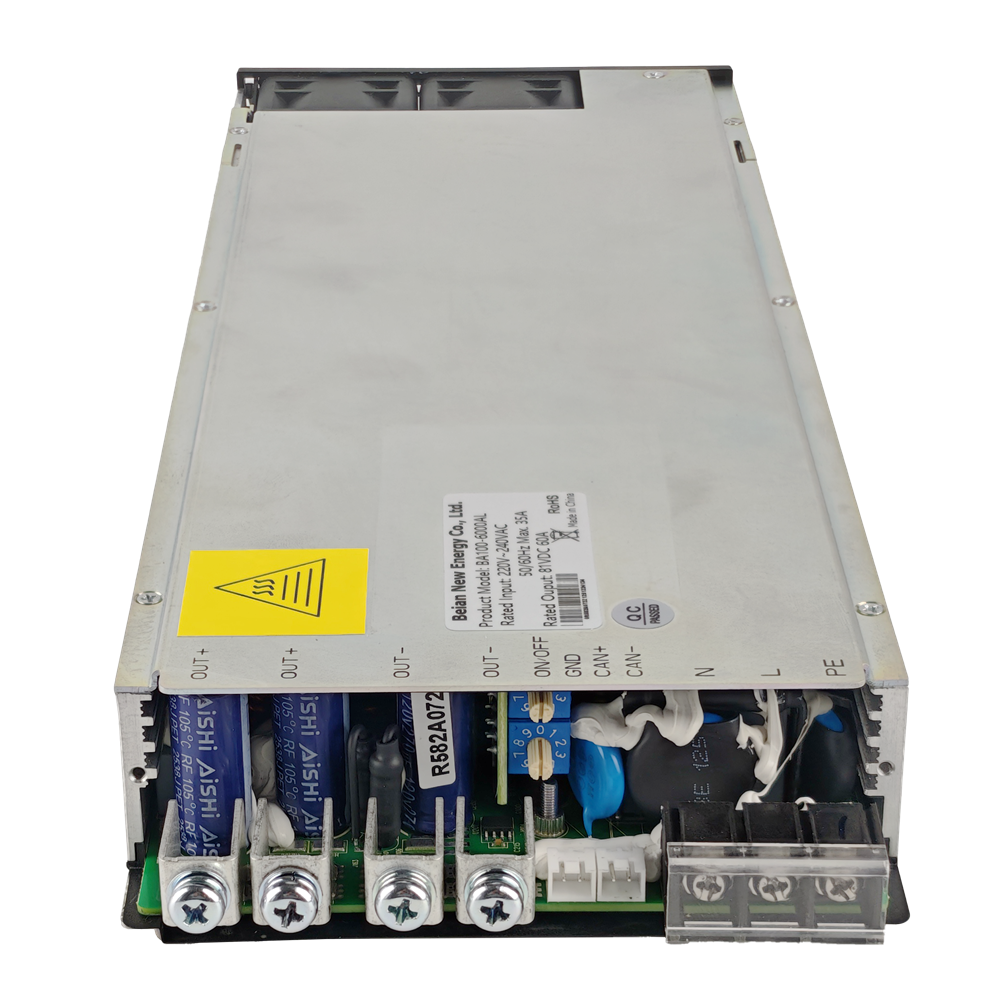

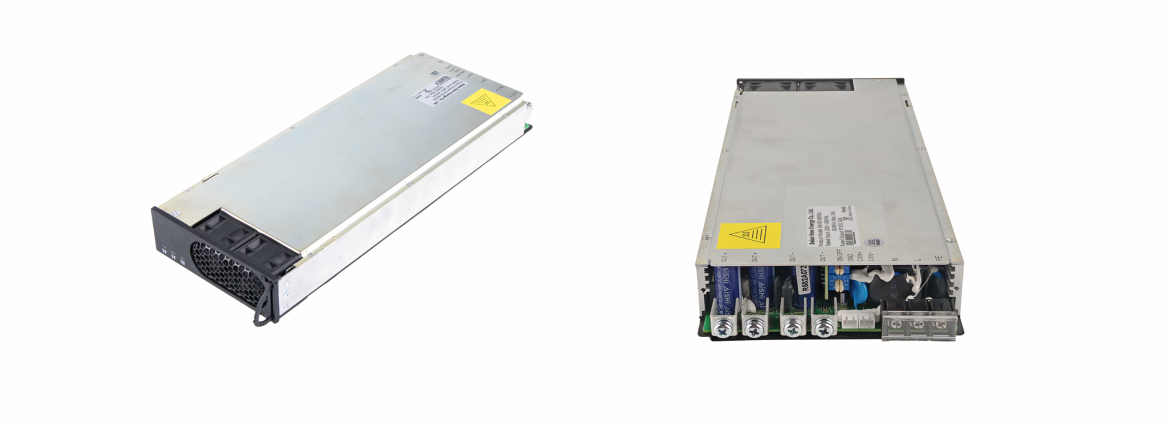

 Wiring side · OUT+ / OUT− (parallel bolts), ON/OFF, GND, CAN+/CAN−, N / L / PE |
| 1 True single-phase 220V design Runs from ordinary AC 187~264V single-phase mains (L/N/PE) at full 6 kW - no three-phase supply needed for workshops, labs, charging cabinets and mobile equipment. | 2 Wide DC50~150V output One module covers 48V / 60V / 72V / 96V / 120V / 144V battery systems with continuously adjustable output up to 150V DC. |
| 3 40A @ high efficiency Full 40A output capability with ≥94% efficiency and power factor ≥0.99 - cool running and gentle on the grid even at full load. | 4 CAN + fully digital control ON/OFF enable, voltage/current setting, status and alarms all reportable over CAN bus; supports parallel operation for higher power. |

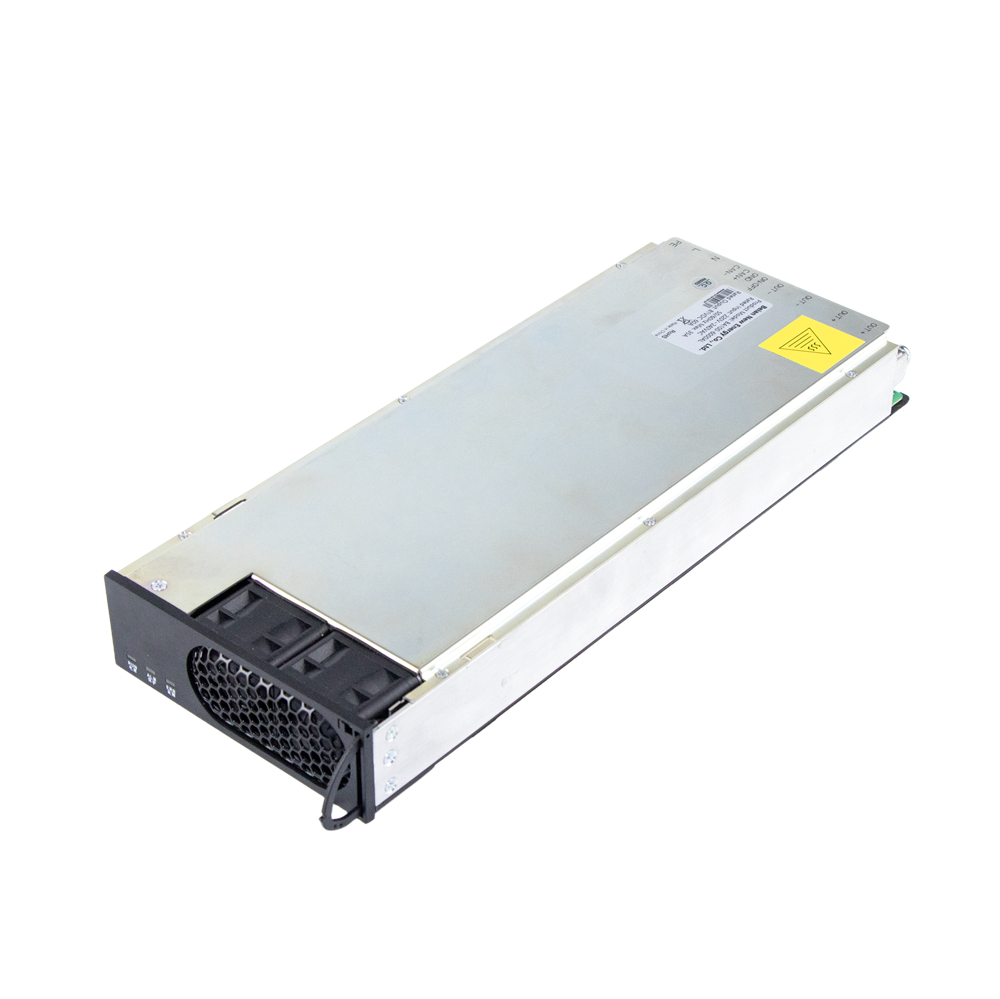

| 5 Slim hot-swap style mechanics 332×124×41.5 mm, only 2.7 kg, with front handle - drops into 1U-high charging cabinets and rack shelves. | 6 Wide environment tolerance -40~+50°C full output (derated to 75°C), 0~95% RH, up to 2000 m altitude; MTBF > 120,000 h for demanding field duty. |
 USBCAN adapter, USB-RS485 tool and touchscreen display for bench testing |  PC software for module configuration, monitoring and firmware upgrade |
Low-Voltage Battery Charging 48V~144V lithium / lead-acid packs for AGV, golf carts, forklifts and cleaning machines | Single-Phase Charging Cabinets Slim hot-swap modules for residential / commercial charging cabinets on ordinary 220V mains | Industrial DC Power Adjustable DC source for test benches, telecom / energy-storage auxiliaries and process equipment |
| Item | Detail |
|---|---|
| Brand / Origin | BEIAN (Jiangsu Beian New Energy Co., Ltd.) · Jiangsu, China |
| Ordering Model | BA150-6000AL - DC50~150V / 40A, 6kW, single-phase AC220V input Companion models: BA30-6000X (DC10~30V / 190A, 6kW) · BA100-10000 (DC30~100V / 100A, 10kW) · BA180-20000A / BA400-20000A (20kW three-phase) |
| MOQ | Flexible - contact sales for sample & volume pricing |
| Lead Time | Typically 7-15 days (confirm with sales) |
| Payment | T/T, Trade Assurance, etc. (confirm with sales) |
| Support & Customization | Hardware test tool (USBCAN / USB-RS485 / display) and PC software provided for secondary development; other output voltage ranges per project on request |
| Warranty | 1 year |
Q1: What input supply does the BA150-6000AL need?
A: Ordinary single-phase AC 220V (L/N/PE). Full 6kW output is available from AC187~264V; between AC85~187V the module keeps running with reduced output.
Q2: Can one module charge different battery voltages (48V / 72V / 96V...)?
A: Yes. The DC output is continuously adjustable from 50V to 150V; set the target voltage/current via CAN or the host controller - no hardware change needed.
Q3: Can modules work in parallel for more power?
A: Yes. With CAN-based digital control, multiple modules can share current in the same cabinet; contact us for the paralleling guideline.
Q4: How is the module controlled and monitored?
A: ON/OFF enable terminals plus CAN bus. Full PC software and USBCAN test hardware are available so your team can integrate and commission quickly.
Q5: Does it derate at high temperature or altitude?
A: Full output from -40 to +50°C; above 50°C (up to 75°C) and above 2000 m altitude the output is reduced - see the specification table.
Q6: What if I need three-phase input or a different voltage range?
A: The BEIAN family also offers BA30-6000X (DC10~30V/190A), BA100-10000 (10kW) and 20kW three-phase BA180/BA400 modules; custom ranges are available per project.
