| Item | BA1000-60000B |
|---|---|
| Rated Output Power | 60 kW |
| Rated Output Current | 200 A |
| Output Voltage Range | DC 200V ~ 1000V (adjustable) |
| Efficiency | ≥ 97% (peak) |
| AC Input (Phase / Voltage) | Three-phase · AC 380V / 480V |
| Input Voltage Range | AC 325V ~ 520V (full power) |
| Input Frequency | 45 Hz ~ 65 Hz |
| Power Factor | ≥ 0.99 |
| Control Mode | Fully digital control |
| Communication | CAN bus |
| Cooling | Front-panel fan array with status display |
| Working Ambient Temperature | -40 ~ +70°C |
| Storage Temperature | -40 ~ +70°C |
| Relative Humidity | 5 ~ 95% RH |
| Altitude | < 2000 m (> 2000 m with reduced output) |
| MTBF | > 200,000 hours |
| Dimensions (L×W×H) | 390 × 445 × 84 mm |
| Net Weight | 22 kg |

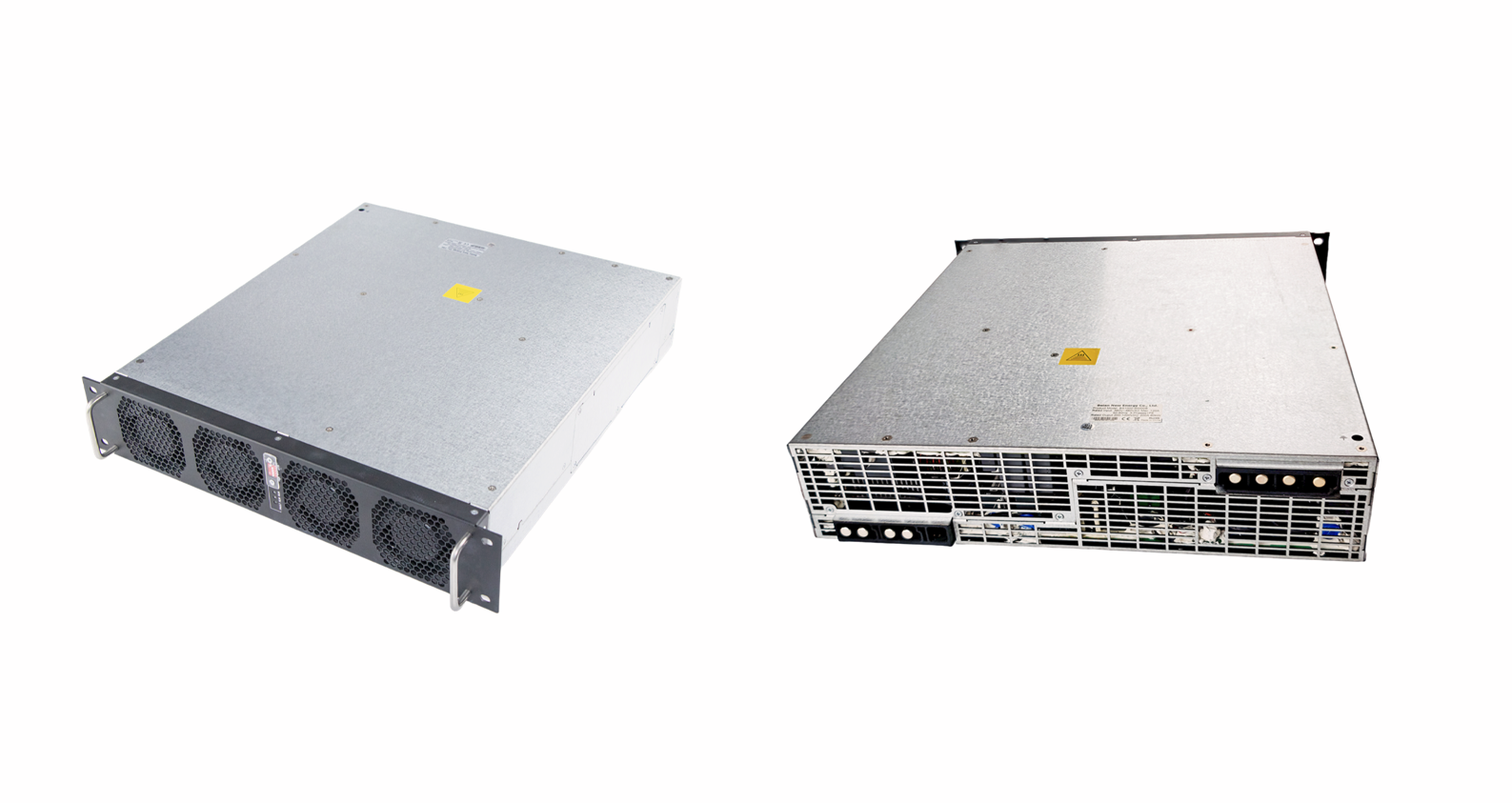

 Front & rear views |
 BEIAN AC-DC module family (BA1000-60000B is the 60kW high-voltage member) |
| Advantage | Benefit for Your Application |
|---|---|
| ✅ Up to 1000V DC Output | Covers 200~1000V continuously adjustable - ready for 800V-class passenger EVs, commercial trucks, buses and high-voltage energy storage systems. |
| ✅ 60kW in a 2U Chassis | 390×445×84 mm rack-mount body delivers 60kW - 45kW/m2-class power density for compact charging cabinets and skids. |
| ✅ ≥97% Peak Efficiency | Best-in-family peak efficiency with PF ≥ 0.99 cuts heat and operating cost; MTBF > 200,000 h for continuous fleet duty. |
| ✅ CAN + Fully Digital Control | Voltage/current settings, status and alarms over CAN bus; front status display for local readout; supports multi-module parallel cabinets. |
| ✅ -40~+70°C Wide Temperature | Works from arctic cold starts to high-temperature cabinet environments; 5~95% RH and up to 2000 m altitude coverage. |
| ✅ Three-Phase 325~520V Input | Full 60kW output across AC325~520V - one hardware platform for 380V and 480V grids worldwide. |
 USBCAN adapter, USB-RS485 tool and touchscreen display for bench testing |  PC software for module configuration, monitoring and firmware upgrade |
High-voltage DC scenarios for the BA1000-60000B.
DC Fast Charging Stations Core module for 500V/800V/1000V-class fast chargers serving passenger EVs, trucks and buses | High-Voltage Energy Storage Charge / discharge and test power for 200~1000V battery clusters and ESS integrators | Industrial & Test Power High-voltage DC source for motor drive testing, electroplating, labs and process equipment |
| Item | Detail |
|---|---|
| Brand / Origin | BEIAN (Jiangsu Beian New Energy Co., Ltd.) · Jiangsu, China |
| Ordering Model | BA1000-60000B - DC200~1000V / 200A, 60kW, three-phase AC380V/480V input |
| Companion Models | BA30-6000X (DC10~30V / 190A) · BA150-6000AL (DC50~150V / 40A, single-phase) · BA100-10000 (DC30~100V / 100A) · BA180-20000A / BA400-20000A (20kW) |
| MOQ | Flexible - contact sales for sample & volume pricing |
| Lead Time | Typically 7-15 days (confirm with sales) |
| Payment | T/T, Trade Assurance, etc. (confirm with sales) |
| Support & Customization | Hardware test tool (USBCAN / USB-RS485 / display) and PC software provided for secondary development; other output voltage ranges per project on request |
| Warranty | 1 year |
Q1. Is the BA1000-60000B suitable for 800V EV platforms?
A: Yes. The output range is DC200~1000V, covering 400V, 500V, 800V and up to 1000V charging architectures with continuously adjustable setpoints via CAN.
Q2. Can several modules be paralleled in one cabinet?
A: Yes. With CAN-based digital control, multiple modules can share current for higher total power; contact us for the paralleling and cabinet design guideline.
Q3. What input supply does it need?
A: Three-phase AC380V or 480V. Full 60kW output is available across AC325~520V, so one hardware version serves 380V and 480V grids.
Q4. How do I integrate and commission it?
A: ON/OFF enable terminals plus CAN bus. We provide USBCAN test hardware and full PC software for configuration, monitoring and firmware upgrade.
Q5. Does it really work up to +70°C ambient?
A: The rating table lists -40~+70°C; as with any fan-cooled module, continuous full-power operation at the top of the range depends on cabinet airflow - share your thermal design with us and we will confirm the derating curve.
Q6. What if I need a different voltage or power class?
A: The BEIAN family also offers BA30-6000X (DC10~30V/190A), BA150-6000AL (single-phase 220V, DC50~150V/40A), BA100-10000 (10kW) and 20kW BA180/BA400 modules; custom ranges are available per project.
