SINOFUSE RSZ307-01-EVLM-400A 500A 630A 750V High Voltage DC Fuses
SINOFUSE RSZ307-01-EVLM-400A 500A 630A 750V High Voltage DC Fuses
Product Detail Reference
Number | Model | Size code | Rated current A | Breaking capacity data | Power dissipation | |
Before the arc | Fusing | |||||
1 | RSZ307-01-EVLH-630 750V | 1 | 630 | 82000 | 355000 | 86 |

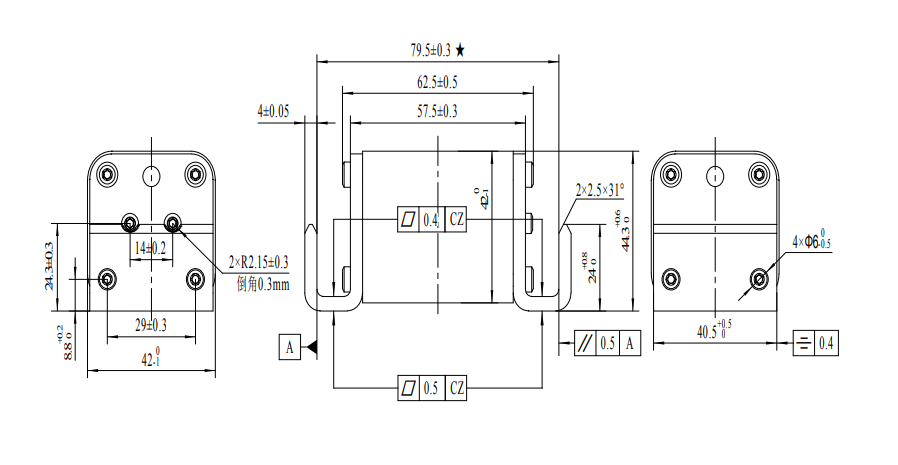

Product Structure Size
- Warranty:
- 3 Years
- Application:
- Electric vehicle
- Brand Name:
- SINO FUSE
- Model Number:
- RSZ307-01-EVLM-400A 500A 630A 750V
- Place of Origin:
- China
- Usage:
- High Voltage
- Breaking Capacity:
- High
- Safety Standards:
- IEC
- Rated voltage:
- 750V
- Rated current A:
- 400A 500A 630A
- Size code:
- /
- Power consumption W:
- 86
- Breaking capacity:
- 30kA L/R=2ms
- Performance reference:
- UL248 IEC60269
- certification:
- ISO8820 GB/T31465
