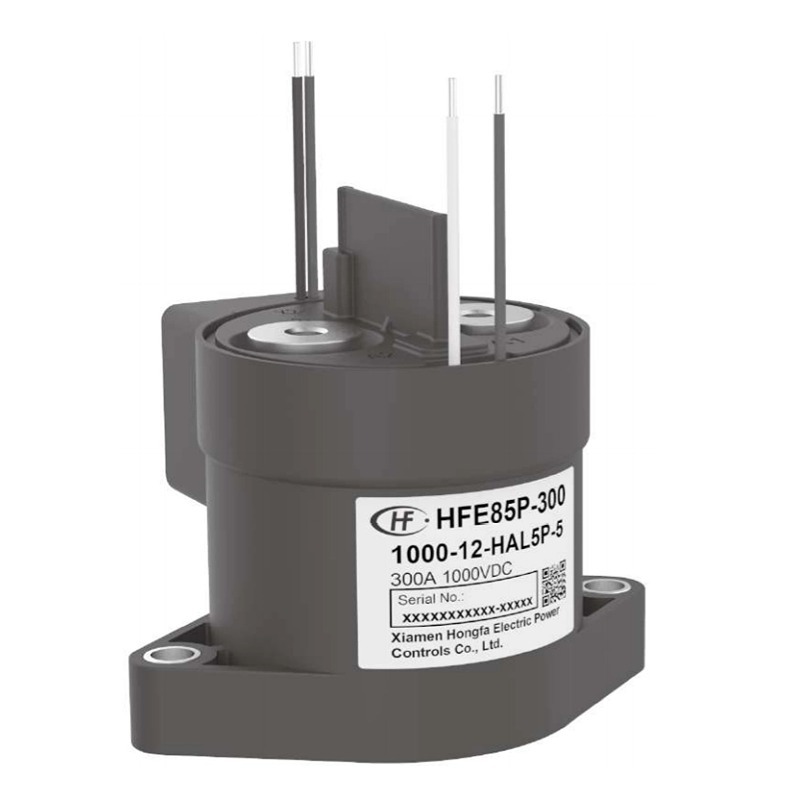

HFE85P-300 HONGFA High Voltage DC Contactor 1000V 300A

1000V DC High-Voltage Switching

Rated for 1000V DC load voltage with 2000A max breaking current and 450kW max switching power — sized for commercial PV strings and high-voltage ESS DC links.

300A Continuous at 85°C

Carries 300A continuously at 85°C ambient while contact resistance stays ≤0.3 mΩ to minimize heat rise and power loss in battery and PV circuits.

Energy-Saving PWM Coil: 26W On / 3W Holding

The single-coil PWM drive draws 26W only during switch-on, then holds at 3W — cutting coil losses by up to 88% and reducing heat inside battery cabinets and inverter compartments.

Ceramic Brazed Hermetic Seal

Ceramic-to-metal sealing with hydrogen gas fill suppresses DC arcs and prevents contact oxidation; the contact block meets IP67 protection against dust and moisture ingress.

Built-In Auxiliary Contact Option

An optional 1 Form A auxiliary contact provides main-contact position feedback for BMS and inverter logic without external monitoring hardware.

HONGFA Quality & Global Certifications

Manufactured by Xiamen Hongfa with UL, CUL, VDE, TUV and CQC certifications, IEC 60664-1 compliant. Test reports and OEM support are available from X Contactor for volume projects.

UL / CUL — North American safety listing for relay and contactor components.
VDE / TUV — German/European safety certification for high-voltage DC switching.
CQC — China Quality Certification for electrical products.
IEC 60664-1 — Insulation coordination for equipment within low-voltage supply systems.
Factory Test Reports — Contact resistance, dielectric strength and endurance test data available on request.

Energy Storage Systems

Battery main contactor for high-voltage ESS racks and commercial BESS cabinets.

PV Inverters & Combiner Boxes

DC-side switching in string inverters and DC combiner/re-combiner boxes up to 1000V.

EV Charging Infrastructure

High-voltage DC output control in fast-charger power modules and DC distribution.

Industrial DC Power

Load-break and safety-disconnect switching for 1000V-class industrial DC bus systems.

Q1: What does the "P" in HFE85P-300 mean?

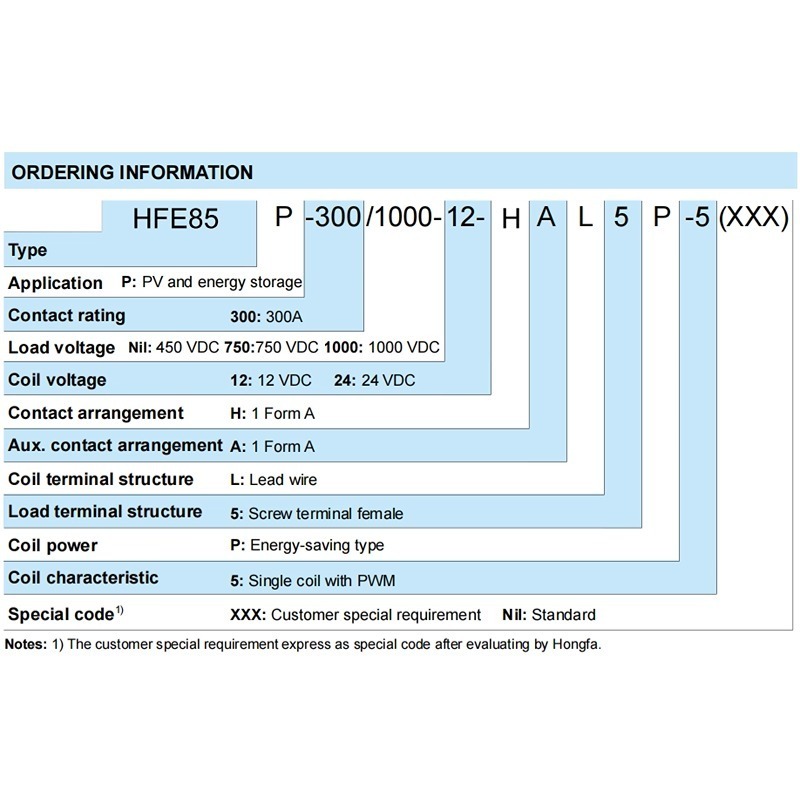

Per HONGFA ordering information, P designates the PV and energy-storage application family. The sample code 1000-12-HAL5P-5 means 1000V DC load voltage, 300A contact rating, 12V DC coil, 1 Form A main contact, 1 Form A auxiliary contact, lead-wire coil termination, M6 internal-thread load terminal, energy-saving coil with single-coil PWM drive.

Q2: How does the energy-saving coil work?

The single coil is driven by a PWM economizer: it draws 26W to pick up and seal the armature, then the duty cycle is reduced to hold at only 3W. This cuts holding losses by up to 88%, reducing heat and auxiliary power draw in ESS cabinets.

Q3: Is HFE85P-300 polarity sensitive?

Yes. Both the load circuit and the coil drive have a polarity requirement, so + and - terminals must be wired correctly. The auxiliary contacts (when fitted) are non-polarized. Follow the wiring diagram printed on the product drawing.

Q4: How does HFE85P-300 compare with HFE85P-150 and HFE85P-250?

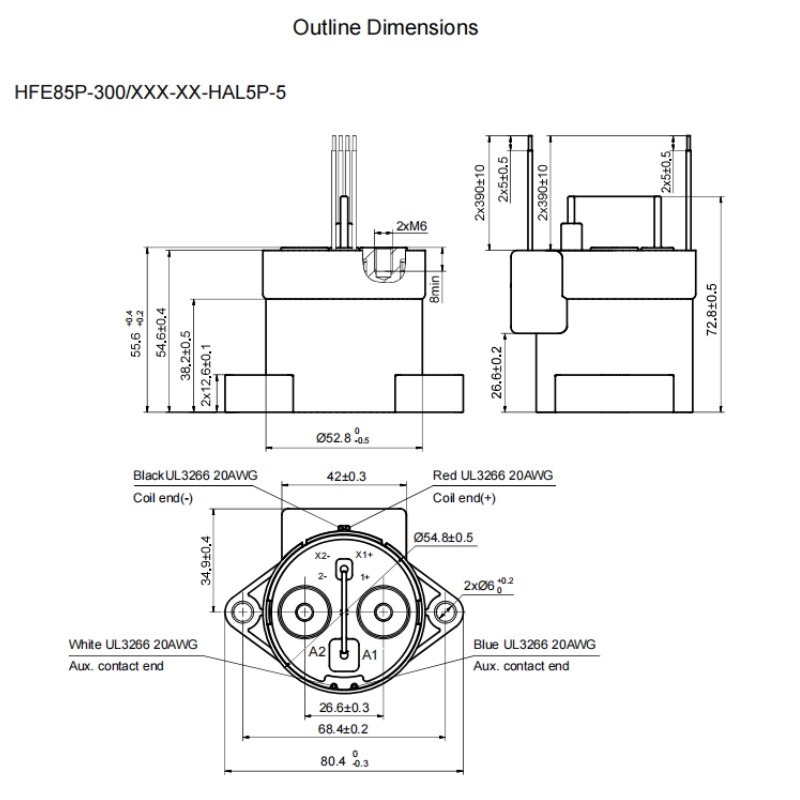

All three share the same 80.4 × 62.3 × 72.8 mm sealed package. HFE85P-150 is rated 150A continuous / 1000A max breaking / 300kW, HFE85P-250 is rated 250A continuous / 2000A max breaking / 400kW, and HFE85P-300 is rated 300A continuous / 2000A max breaking / 450kW. Choose by the continuous current of your DC circuit.

Q5: Can X Contactor provide samples and OEM support?

Yes. We stock HONGFA HFE85P-300 (12V and 24V coil variants) and can supply samples, the full datasheet and factory test reports. Contact us for volume pricing and lead time.
