EVU8.0-200A Hudson Fuse 200A for EV Charger ESS
Technical Specifications
| Parameter | Value |
|---|---|
| Model | EVU8.0-200-B (EVU8.0-200A) |
| Brand | HUDSON · Electric Vehicle Fast-Acting Fuse |
| Rated Current | 200A |
| Rated Voltage | 800VDC |
| Breaking Capacity | 60kA @ 800VDC, L/R = 10ms |
| Fuse Characteristic | Fast-acting, gEV (EV semiconductor protection class) |
| Pre-Arcing I2t | 5,237 A2s |
| Total Clearing I2t | 21,470 A2s |
| Power Loss (100% In) | 27 W |
| Dimensions (B type, 100-400A) | 97 × 75mm (L × B), fuse body Ø31mm, terminal 8×13mm |
| Safety Standard | IEC · CE (label marks ISO 8820 / IEC 60269 family) |
| Typical Applications | EV chargers · Energy storage systems (ESS) · PDU / DC-DC · IGBT & semiconductor devices · Compressors · Motor drives |
| Warranty | 3 years |
Product Details

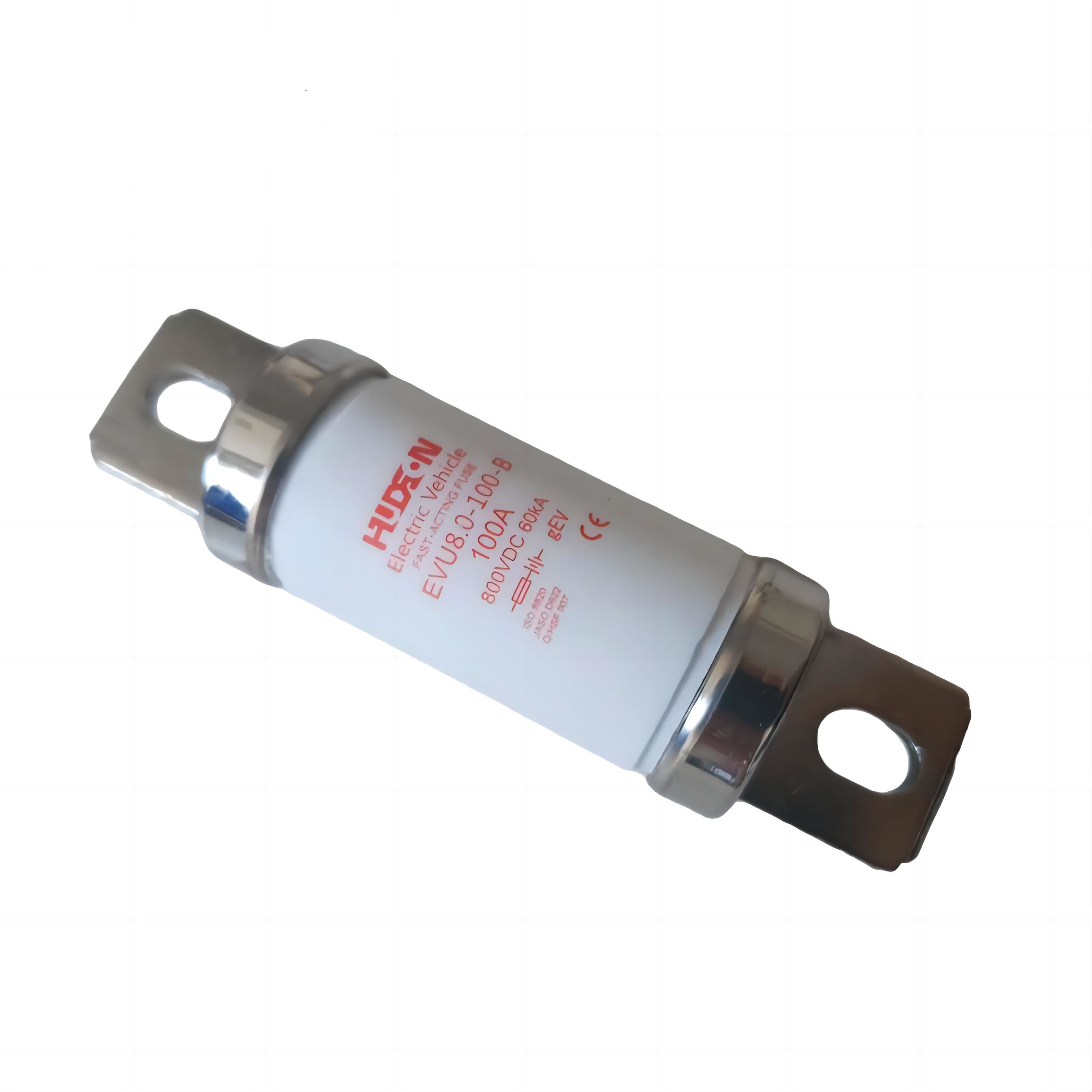

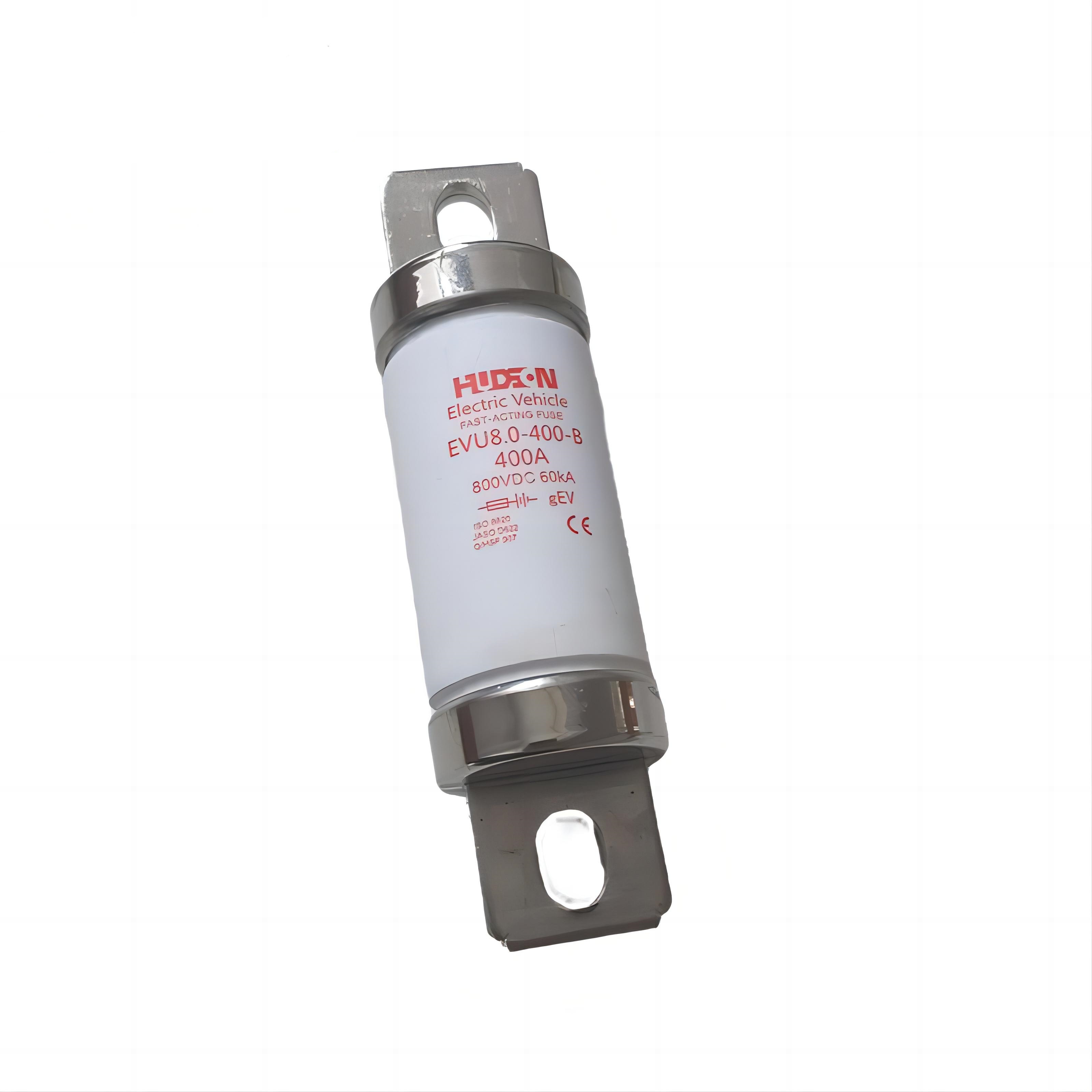

 HUDSON EVU8.0 series B-type (800VDC 60kA class) - white ceramic body, offset knife-end terminals; all 100-400A B fuses share the same Ø31mm footprint as the 200-B |  Rating marking detail - rated current, 800VDC 60kA and gEV fast-acting symbol printed in red on the ceramic body with CE mark |
Product Structure & Size
Reference Data - EVU8.0-□-B Series (60kA @ 800VDC, L/R=10ms)
| Reference Number | Rated Current | Pre-Arcing I2t (A2s) | Total Clearing I2t (A2s) | Watts Loss (W) |
|---|---|---|---|---|
| EVU8.0-100-B | 100A | 1,309 | 5,368 | 11 |
| EVU8.0-150-B | 150A | 2,946 | 12,077 | 18.8 |
| EVU8.0-200-B ★ | 200A | 5,237 | 21,470 | 27 |
| EVU8.0-250-B | 250A | 8,182 | 33,548 | 38.8 |
| EVU8.0-300-B | 300A | 11,782 | 48,308 | 45 |
| EVU8.0-350-B | 350A | 16,037 | 65,753 | 50 |
| EVU8.0-400-B | 400A | 20,947 | 85,881 | 60 |
★ = this listing. The EVU8.0 family also covers 10-50A (30kA), A-type 100-400A (50kA), and C/D-type up to 600A (60kA) - full reference table available on request.
Why Choose the EVU8.0-200-B?
| Advantage | Benefit for Your Application |
|---|---|
| ✅ 60kA @ 800VDC Breaking | Clears the highest fault currents in 800V-class EV charging, ESS and DC distribution systems - rated with L/R=10ms time constant typical of battery circuits. |
| ✅ Fast-Acting gEV Protection | Current-limiting action with only 5,237 A2s pre-arcing I2t - reacts faster than IGBT/SiC short-circuit withstand, protecting expensive semiconductor devices in PDU, DC-DC and motor drives. |
| ✅ Low 27W Power Loss | Efficient at 100% load - less heat in sealed charging-pile cabinets and battery boxes, lower cooling burden and stable continuous 200A operation. |
| ✅ One Footprint 100-400A | All B-type ratings share the identical 97 × 75mm, Ø31mm body - upgrade protection rating later without redrawing the busbar or mount. |
| ✅ Full 10-600A Family | From 10A aux circuits to 600A main loops (30/50/60kA classes) in one brand - simplify sourcing for chargers, PDUs and storage racks. |
| ✅ Certified, 3-Year Warranty | IEC standard compliance with CE marking; backed by a 3-year warranty - dependable for EV charger and ESS OEM projects. |
Product Applications
EV Charging DC fast-charge piles and charging stations - main and branch circuit protection at 800VDC | Energy Storage (ESS) Battery cluster and rack-level DC protection in BESS containers and cabinets | PDU & DC-DC Power distribution units, DC-DC converters and high-voltage wiring harness protection |
IGBT / Semiconductor Fast-acting backup for IGBT and SiC devices in inverters and motor drives | Electric Vehicles Main contactor backup and HV circuit protection in electric vehicles | Compressors & Drives Electric compressors, motor drives and other high-current DC branch circuits |
Ordering & Factory Info
| Item | Detail |
|---|---|
| Brand | HUDSON (as listed on xcontactor.com) |
| Ordering Model | EVU8.0-200-B - 200A / 800VDC / 60kA (L/R=10ms), fast-acting gEV, B-type 97 × 75mm body |
| Series Options | B-type 100-400A (60kA) · C-type 350-450A · D-type 500-600A (60kA) · A-type 100-400A (50kA) · 10-50A (30kA) - same series, one datasheet |
| Warranty | 3 years |
| Certificate | IEC · CE |
| MOQ | Flexible - contact sales for sample & volume pricing |
| Lead Time | Typically 7-15 days (confirm with sales) |
| Payment | T/T, Trade Assurance, etc. (confirm with sales) |
Frequently Asked Questions
Q1. What is the EVU8.0-200-B used for?
A: It is a 200A / 800VDC fast-acting fuse for EV chargers, energy storage systems, PDUs (DC-DC conversion), IGBT and other semiconductor devices, electric vehicles, compressors and motor drives - anywhere a high-voltage DC branch or main circuit needs short-circuit protection.
Q2. Why does "fast-acting" matter for semiconductors?
A: IGBT and SiC devices tolerate fault current for only microseconds to milliseconds. The gEV fast-acting element limits let-through energy to just 5,237 A2s (pre-arcing), clearing the fault before the semiconductor's short-circuit withstand is exceeded.
Q3. What does 60kA @ 800VDC (L/R=10ms) mean?
A: The fuse can safely interrupt a prospective short-circuit current of 60,000A at 800VDC in a circuit with a 10ms time constant - the inductive profile typical of battery-backed DC systems in EV and storage applications.
Q4. How do I select between B-type ratings?
A: Pick the rating to match continuous load current (with derating for ambient temperature and enclosure), then verify the I2t coordination: the fuse's total clearing I2t (21,470 A2s for 200A) must stay below the protected device's withstand. All B ratings share the same 97 × 75mm footprint, so upsizing needs no remounting.
Q5. What are the mounting dimensions?
A: B-type (100-400A): 97mm overall length, 75mm terminal span, Ø31mm ceramic body, 8×13mm knife terminals with mounting holes - see the dimension drawing above; C and D types (350-600A) use larger Ø38/Ø51 bodies.
Q6. What certification and warranty are provided?
A: Manufactured to IEC standards with CE marking (label also references the ISO 8820 / IEC 60269 family), and covered by a 3-year warranty. Certificate copies are available on request.
