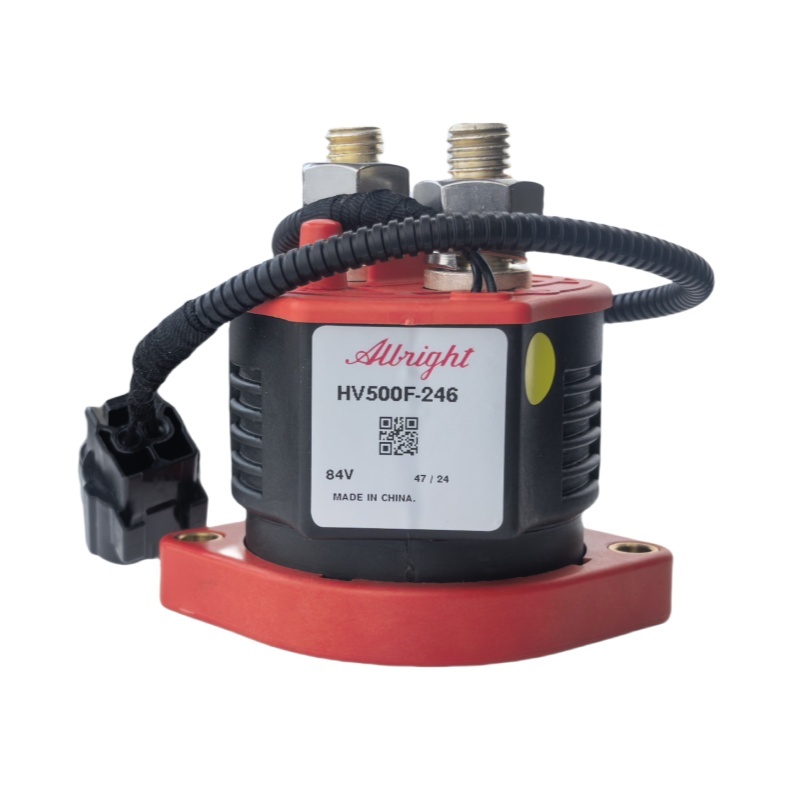

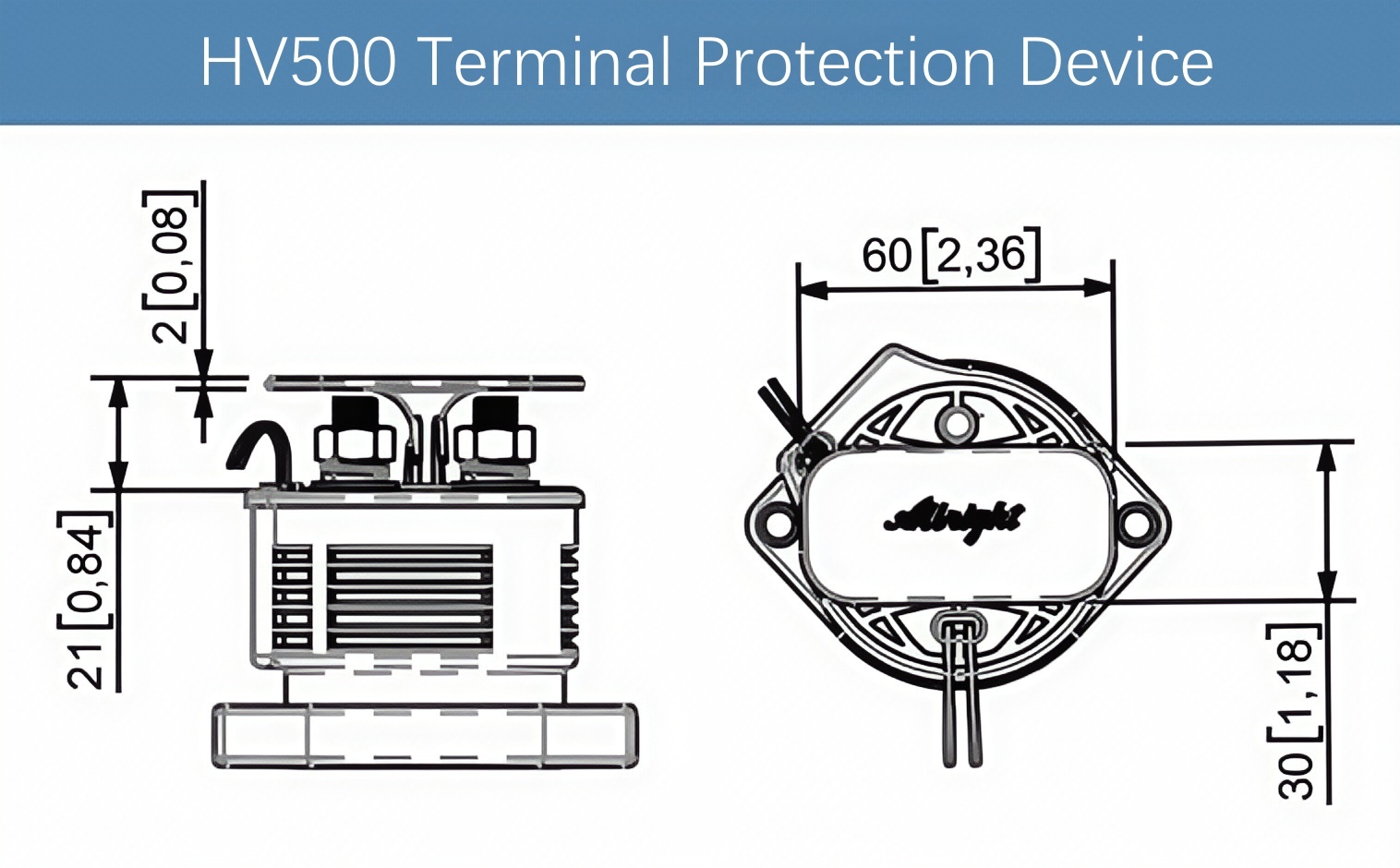

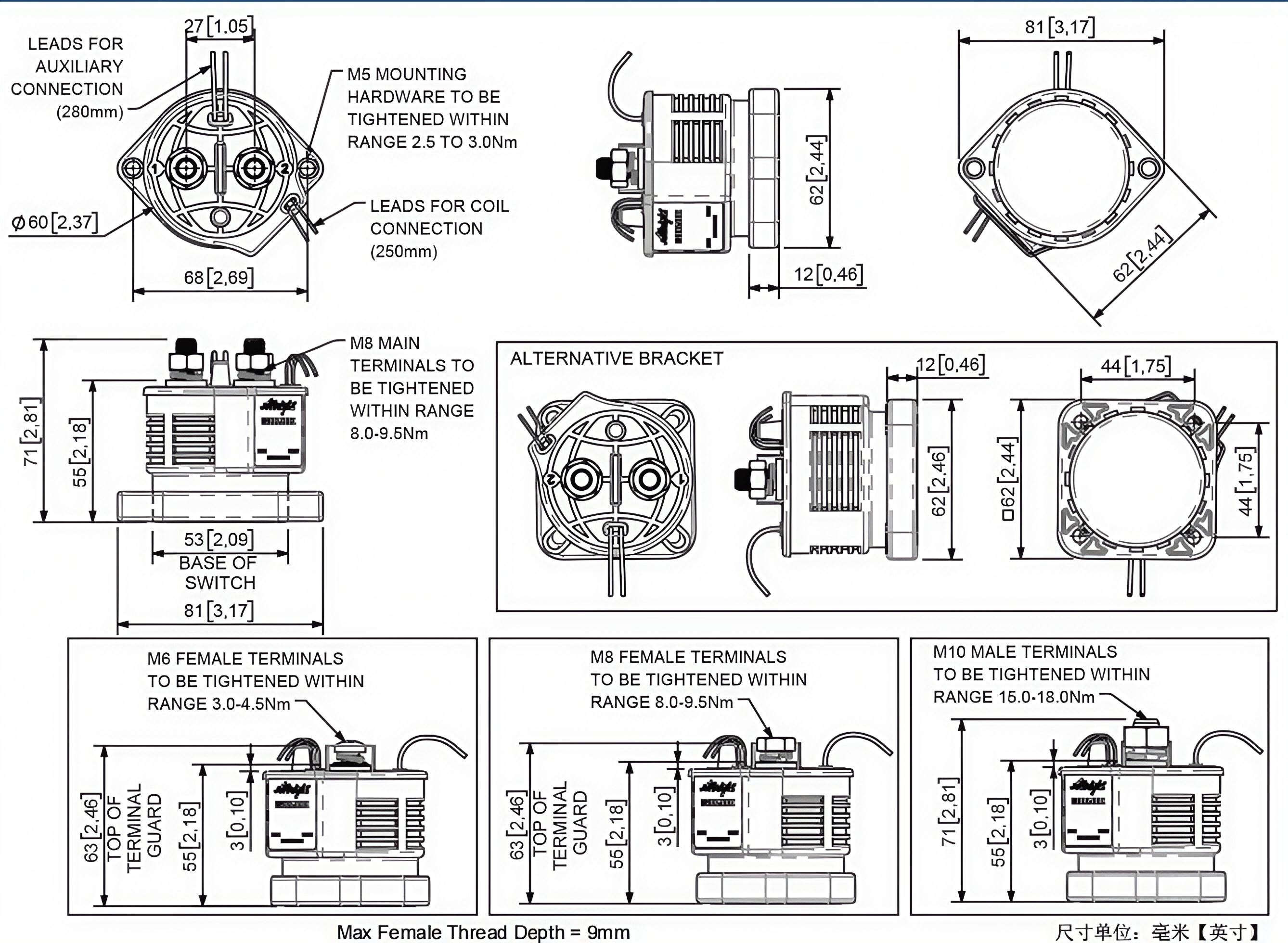

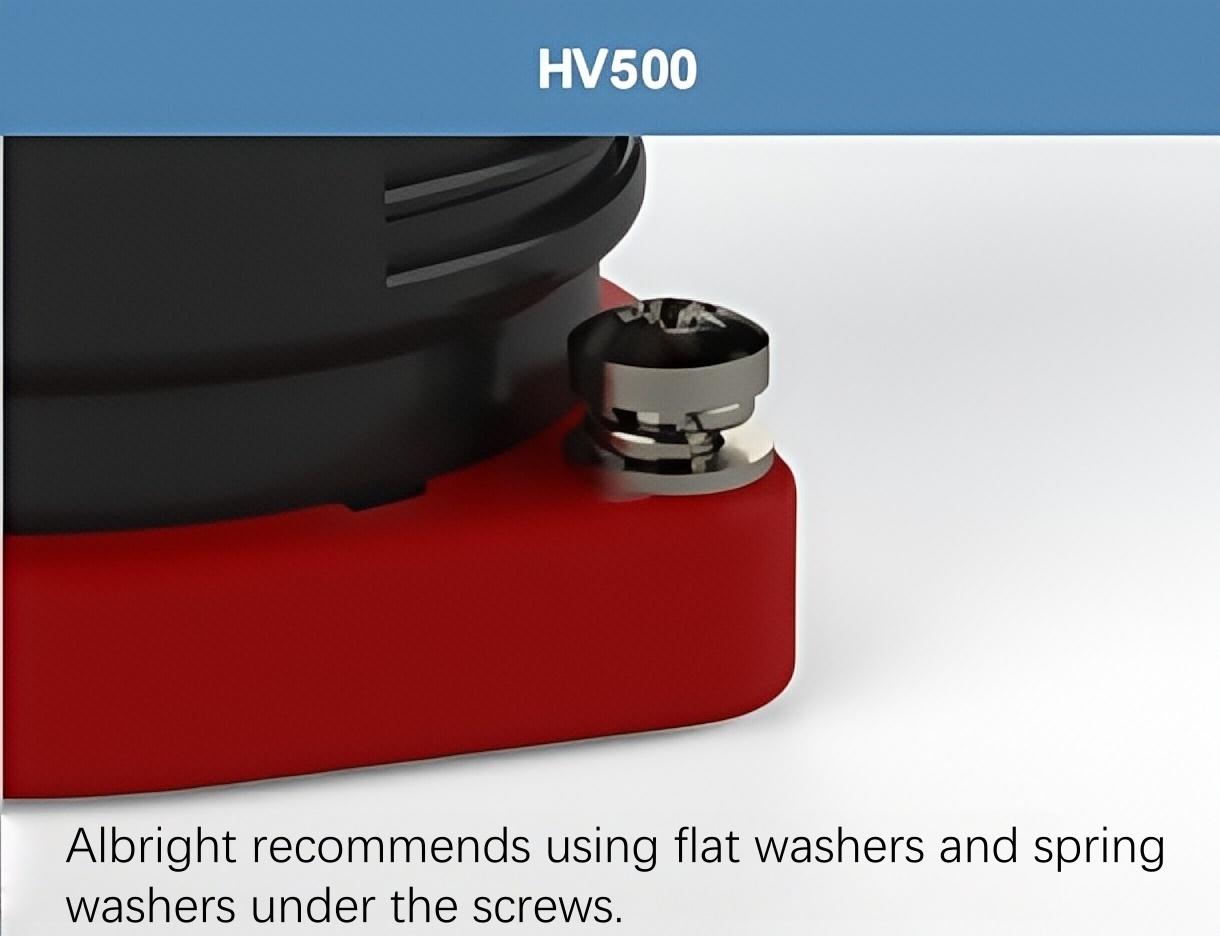

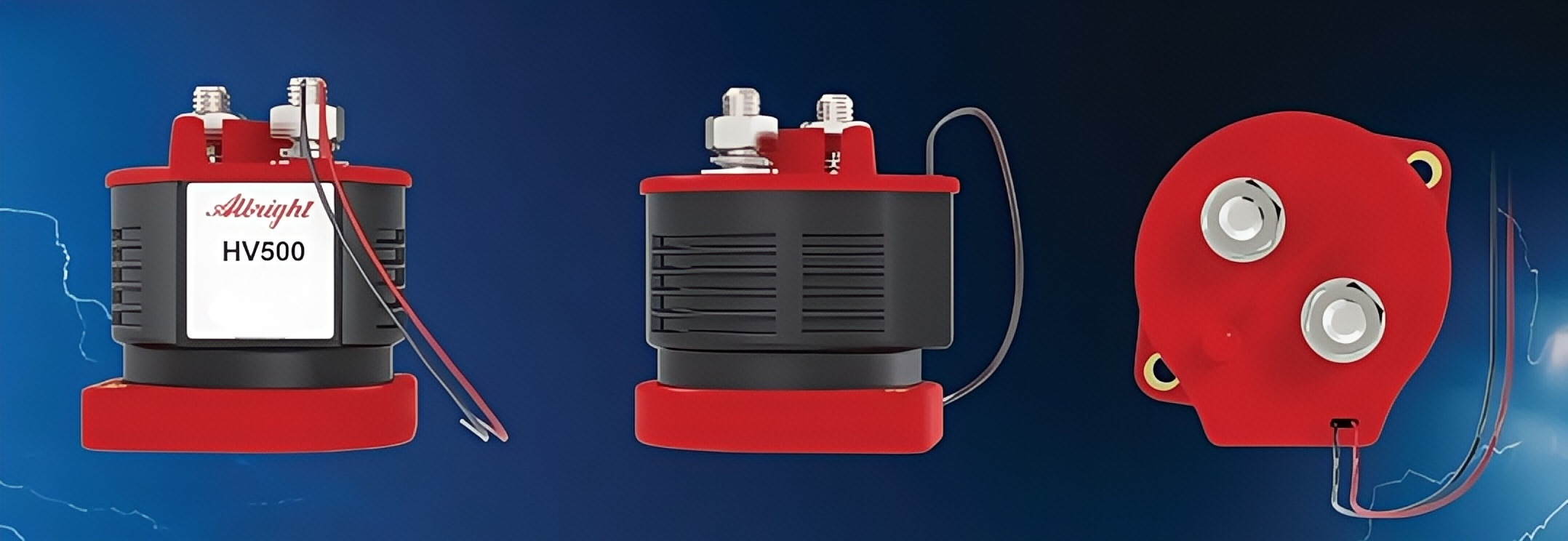

Single-pole Normally Open Full-sealed High-voltage contactors HV500F-246
Product Detai Reference
|
Modle |
HV500F-246 |
||
|
Rated Contact Voltage |
12V-1000V D.C. |
||
|
Continuous Operating Current |
250A (50mm? or 1-1/0 AWG cables) |
||
|
Continuous Operating Current (Max) |
500A (190mmor350 MCM busbars) |
||
|
Coil Voltage Range |
12V D.C.-96V D.C |
||
|
Contact Arrangement: |
Main |
SPST-NO |
|
|
Auxiliary: |
|
||
|
Voltage Drop |
Typically <30mV at 100A |
||
|
Insulation Resistance |
>200MQ |
||
|
Dielectric Withstand Test (at SeaLevel): |
4000V D.C.Leakage <1mA |
||
|
Maximum Altitude |
3000m |
||
|
Environmental Seal |
Contacts, Auxiliary and PWM CircuitHemetically Sealed
-Exceeds lP67 |
||
|
Weight: |
Switch:400 gms |
||
|
Bracket:20 gms |
|||
|
Connection Wire Length: |
Coil:250mm |
||
|
Auxiliary:280mm |
|||
|
Shock, 1/2 Sine, 11ms (G): |
Closed:20G Peak |
||
|
Open:20G Peak |
|||
|
Vibration, Sinusoidal |
80-2000Hz Peak 20G |
||
|
Temperature -Operating |
(-45°C
to + 85°C) |
||
|
Temperature - Storage |
(-45°C
to + 120°C) |
||
|
Humidity |
5-85% |
||

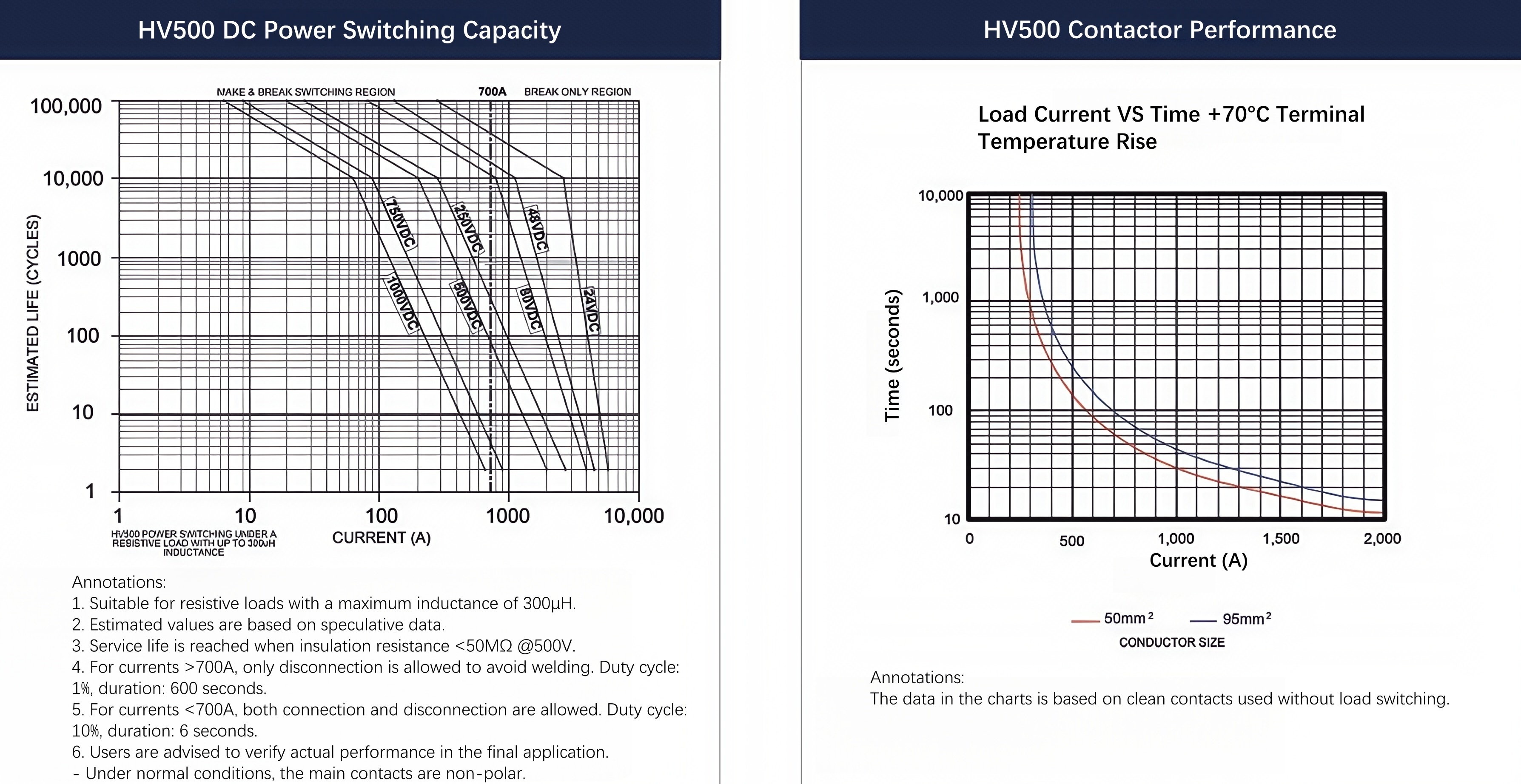

- Electrical Life Line Chart &Current Time Line Chart
- Product Characteristics
- Warranty:
- 2 Years
- Application:
- Charging piles
- Breaking Capacity:
- DC320V 1000A
- Number of Pole:
- 2
- Phase:
- 2
- Place of Origin:
- Shanghai, China
- Brand Name:
- LAZZEN
- Model Number:
- NDZ3W-300
- Package type:
- Epoxy package
- Load polarity:
- Without polarity
- Operating voltage range:
- DC12-1000V
- Contact Resistance:
- 0.5mOhm(at50A)
- Control coil:
- DC12V DC24V
- Mechanical life:
- 1 million times
- Auxiliary contact:
- 1NO 1NC 1NC+1NO
- Electrical life:
- DC500V 300A 6000times
- Weight:
- 460g
- Certification:
- CCC CB CE TUV UL
