Single-pole Normally Open Full-sealed High-voltage Contactors HV500F-121
Product Description
Product Name | HV500F-121 |
Rated Contact Voltage | 12V - 1000V D.C. |
Continuous Operating Current | 250A (50mm2 or 1-1/0 AWG cables) |
Continuous Operating Current (Max) | 500A (190mm2 or 350 MCM busbars) |
Coil Voltage Range | 12V D.C. - 96V D.C. |
Contact Arrangement: | |
Main | SPST-NO |
Auxiliary | SPST-NO |
SPST-NC | |
SPST-NC Mirror | |
Mechanical Durability | >1000000 Cycles |
Auxiliar | >1000000 Cycles |
Voltage Drop | Typically <30mV at 100A |
Insulation Resistance | >200M |
Dielectric Withstand Test (at Sea Level) | 4000V D.C./Leakage <1mA |
Maximum Altitude | 3000m |
Environmental Seal | Contacts, Auxiliary and PWM Circuit Hermetically Sealed - Exceeds IP67 |

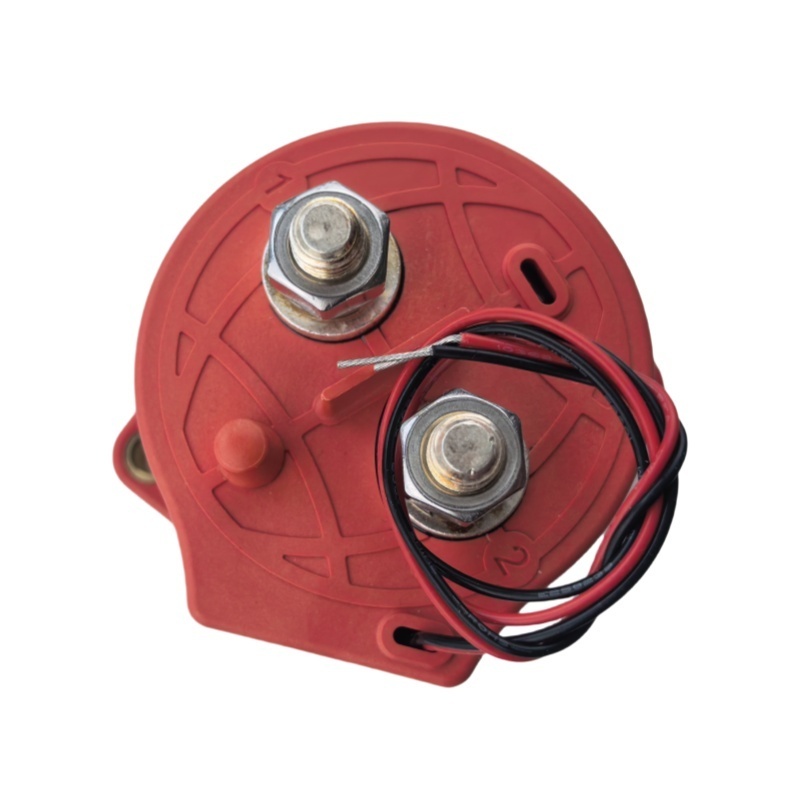

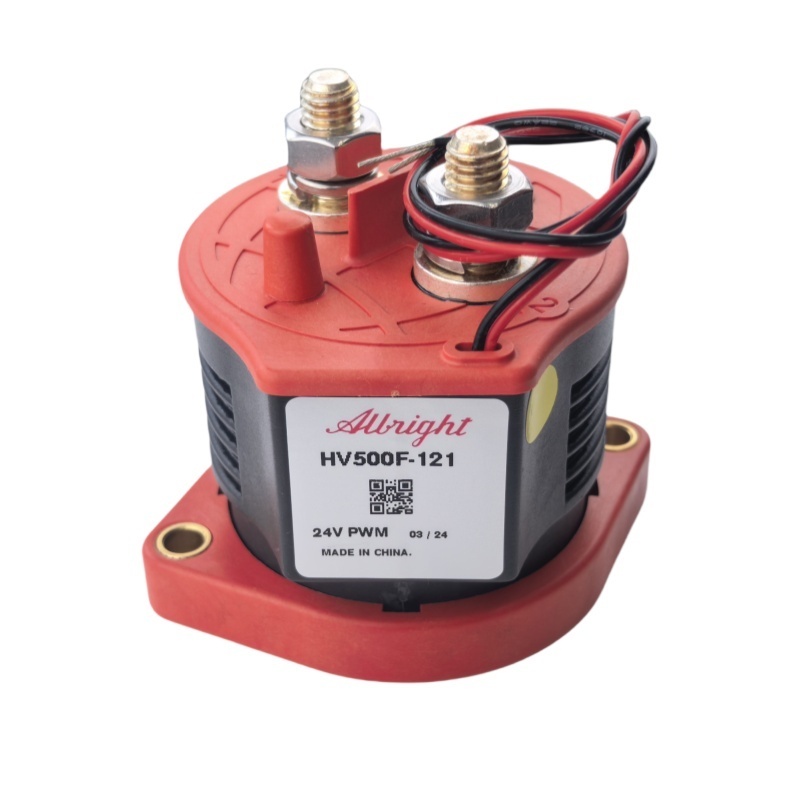

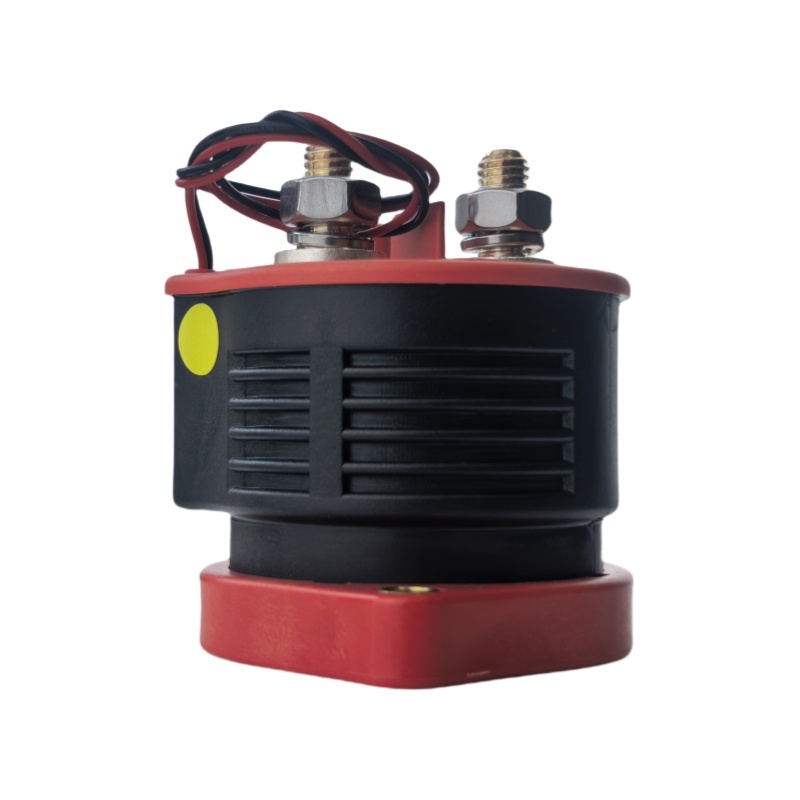

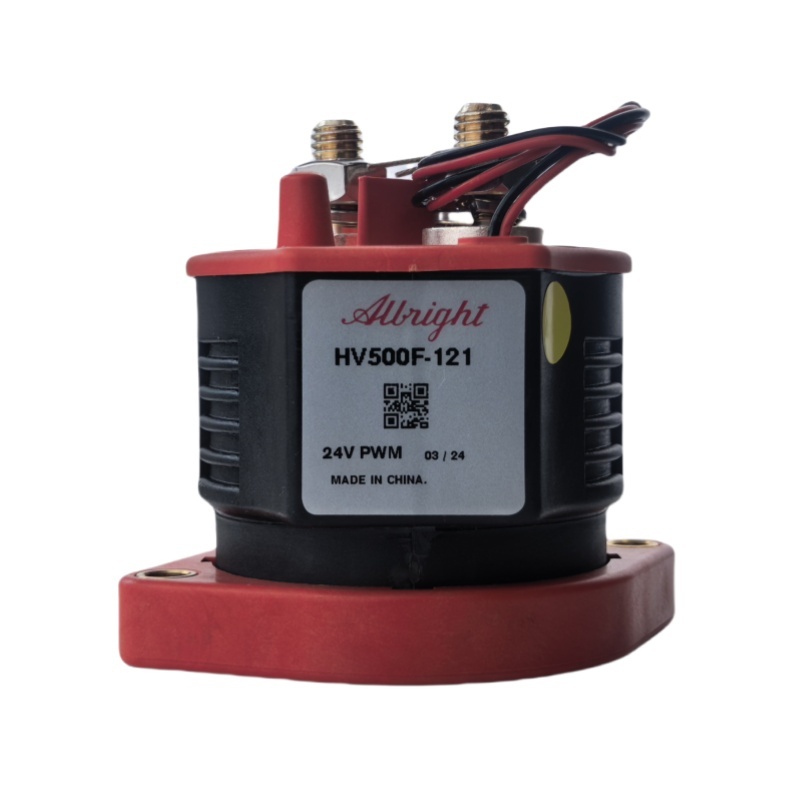

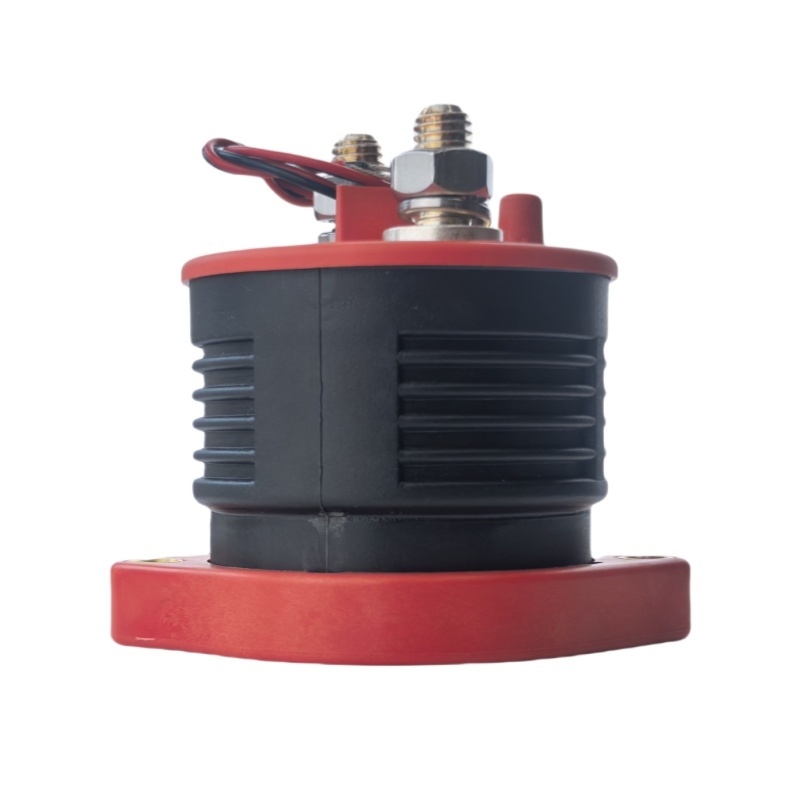

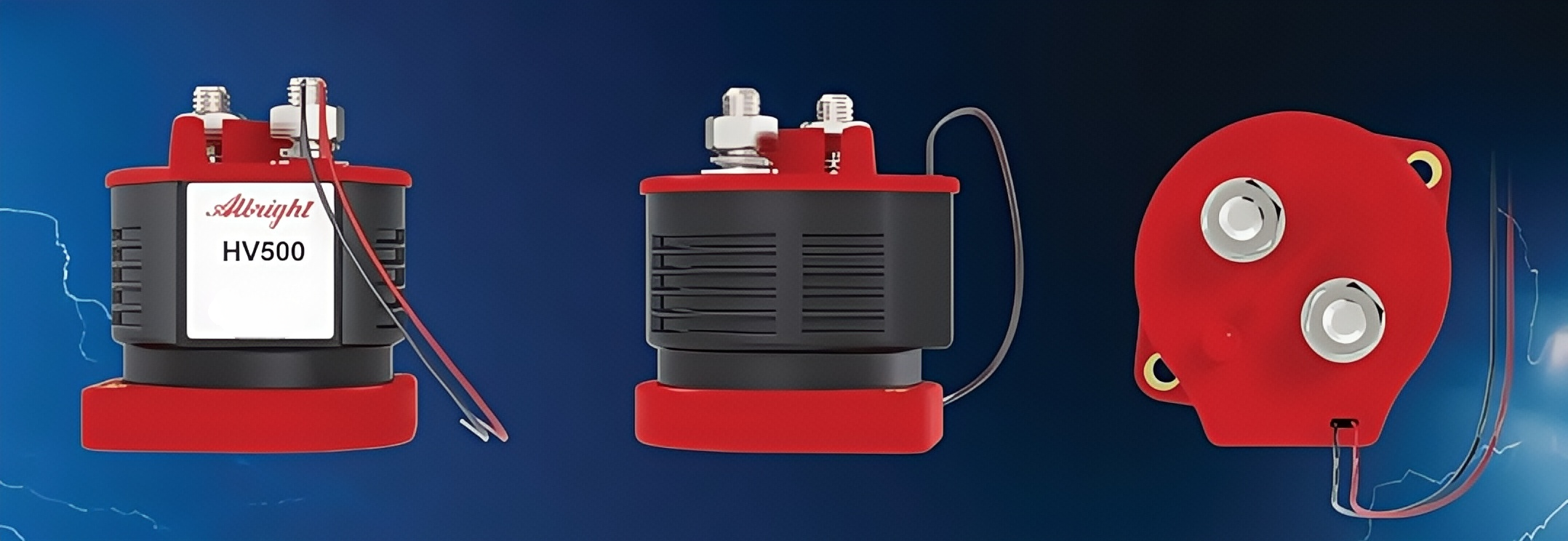

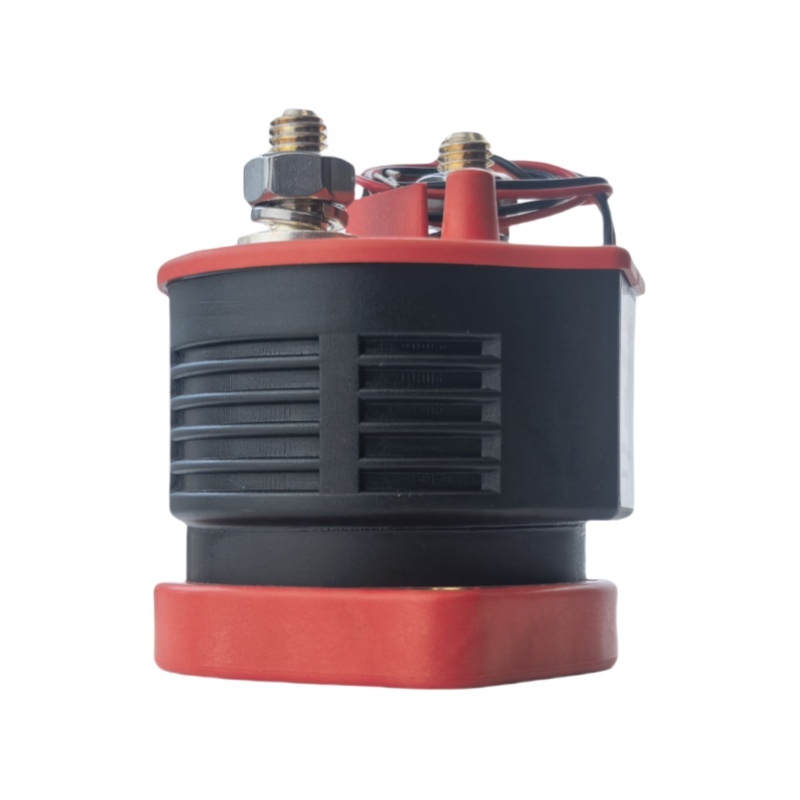

Product Images

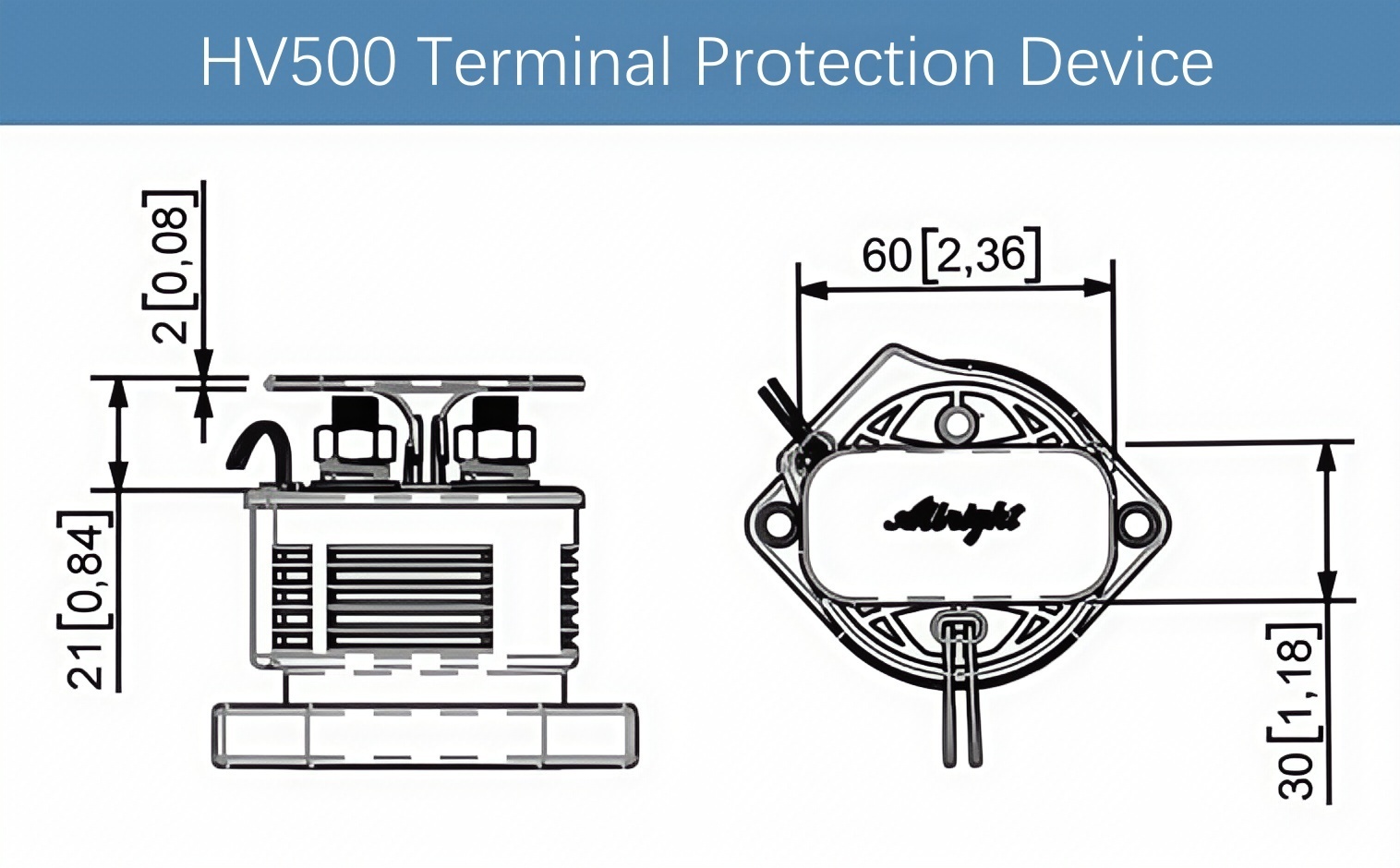

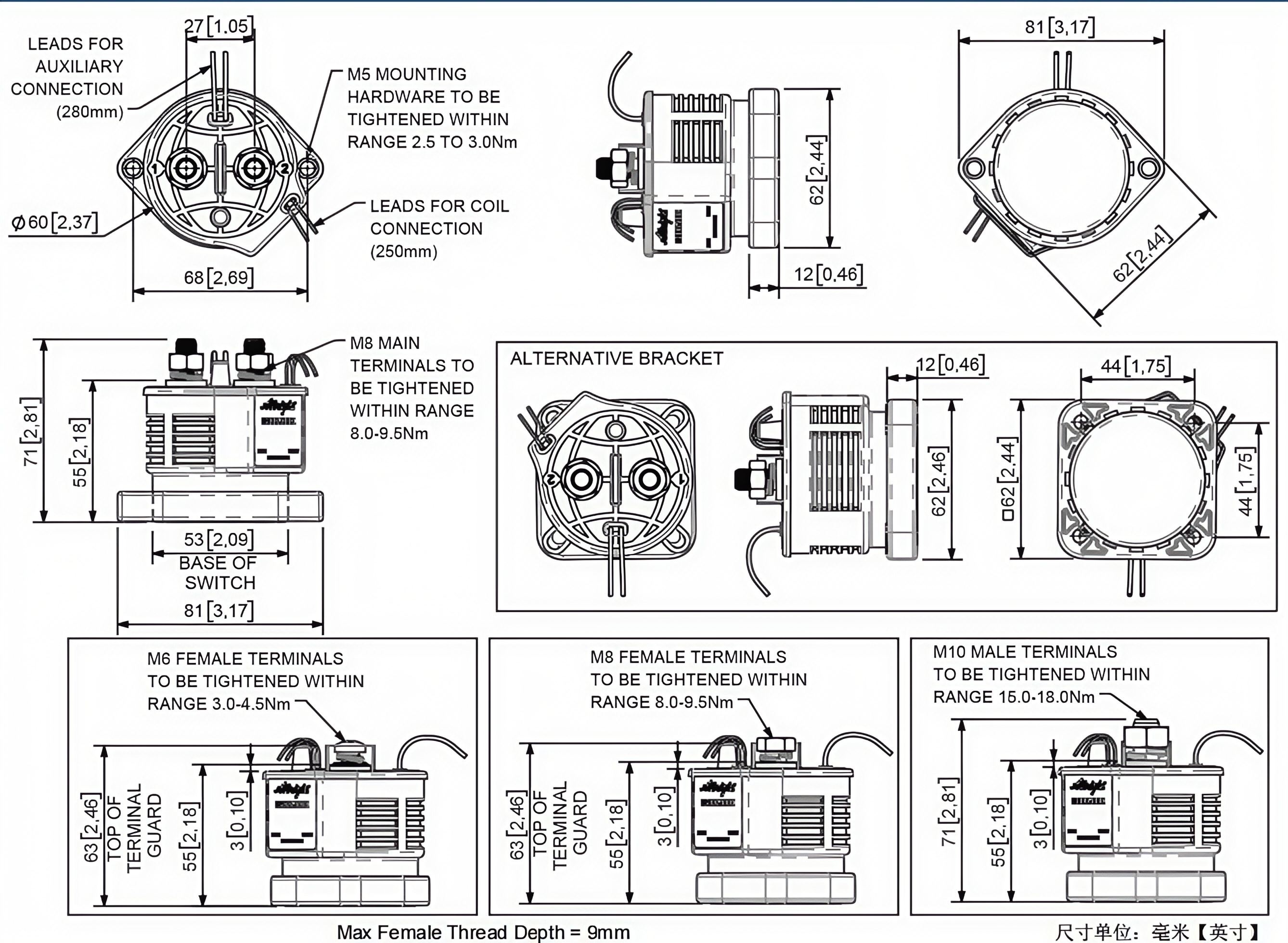

Product Dimension
- Number of Pole:
- 1
- Phase:
- Single
- Model Number:
- HV500F-121
- Rated Contact Voltage:
- 12V - 1000V D.C.
- Continuous Operating Current:
- 250A (50mm2 or 1-1/0 AWG cables)
- Continuous Operating Current (Max):
- 500A (190mm2 or 350 MCM busbars
- Weight:
- 400gms
