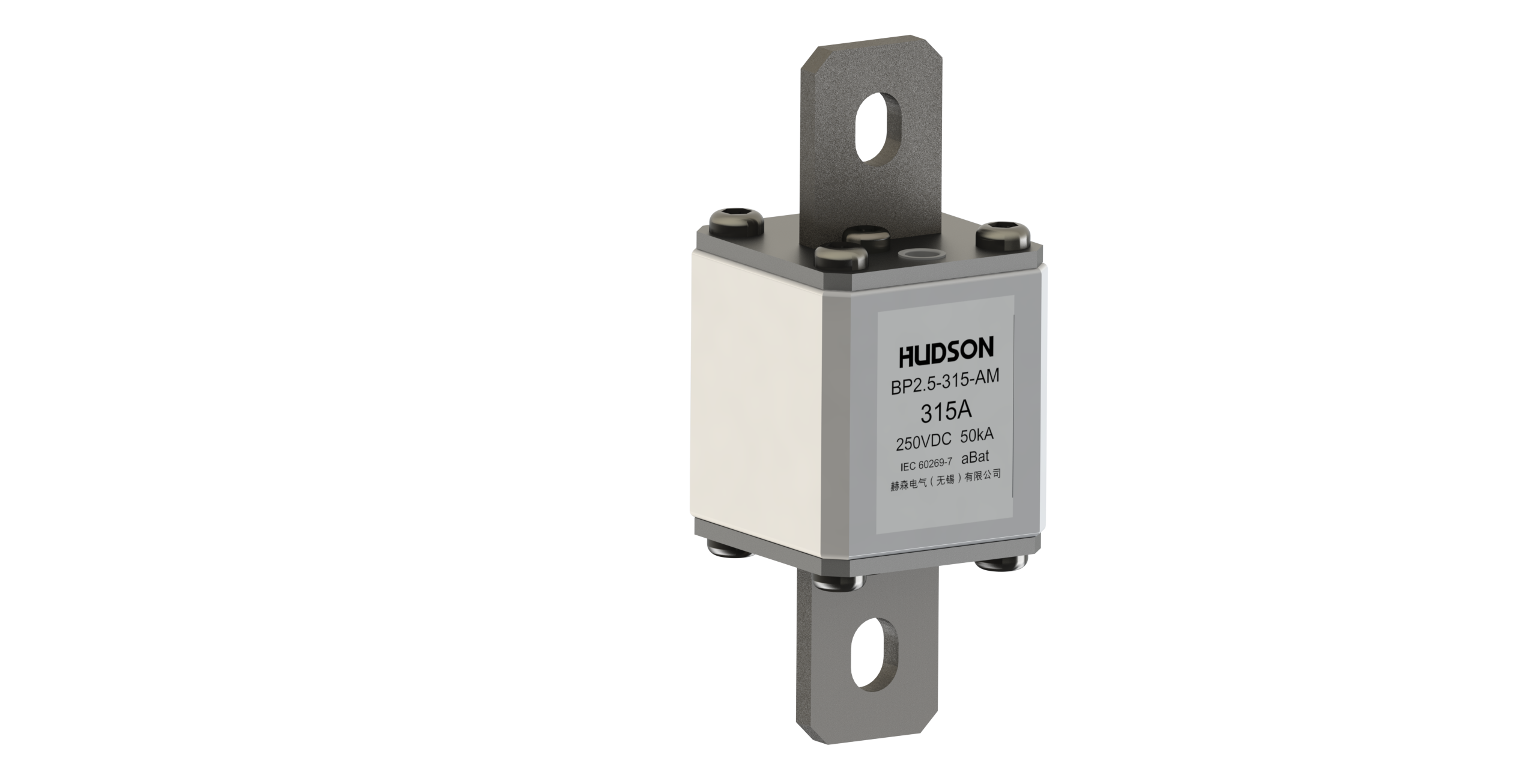

Hudson Fuse Low Voltage BP2.5-AM Series DC Fuses for Battery Pack Protection Protection Category
stars, based on 0reviews
Quantity
Price
100+
$57.00
1000+
$54.00
Product Detai Reference
| Item | DC | Amp | Breaking capacity | W Powerloss |
| BP2.5-200-AM BP2.5-200-AM1 | 250V | 200 | 50kA | 4 |
| BP2.5-250-AM BP2.5-250-AM1 | 250V | 250 | 50kA | 6 |
| BP2.5-315-AM BP2.5-315-AM1 | 250V | 315 | 50kA | 9 |
| BP2.5-450-AM BP2.5-450-AM1 | 250V | 450 | 50kA | 16 |
| BP2.5-550-AM BP2.5-550-AM1 | 250V | 550 | 50kA | 24 |
| BP2.5-630-AM BP2.5-630-AM1 | 250V | 630 | 50kA | 30 |

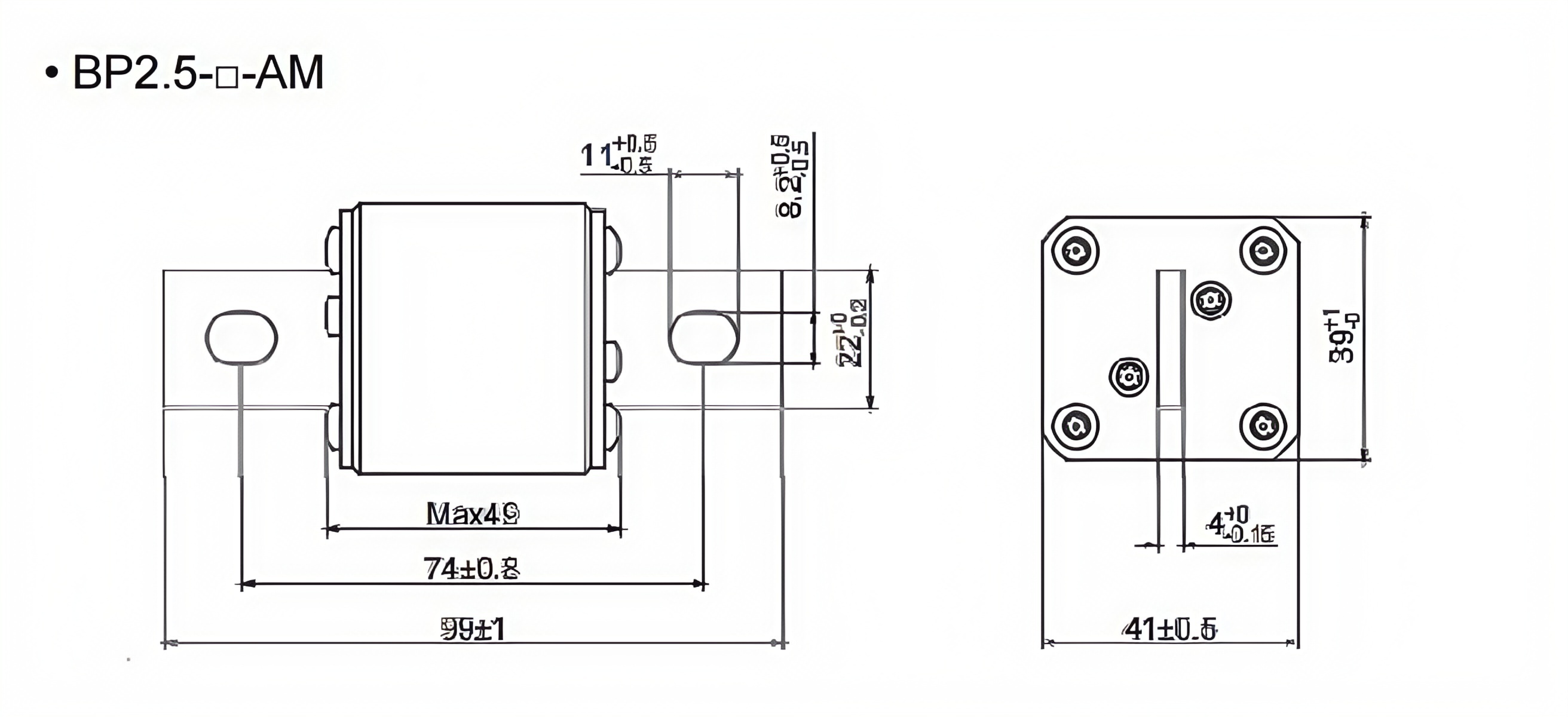

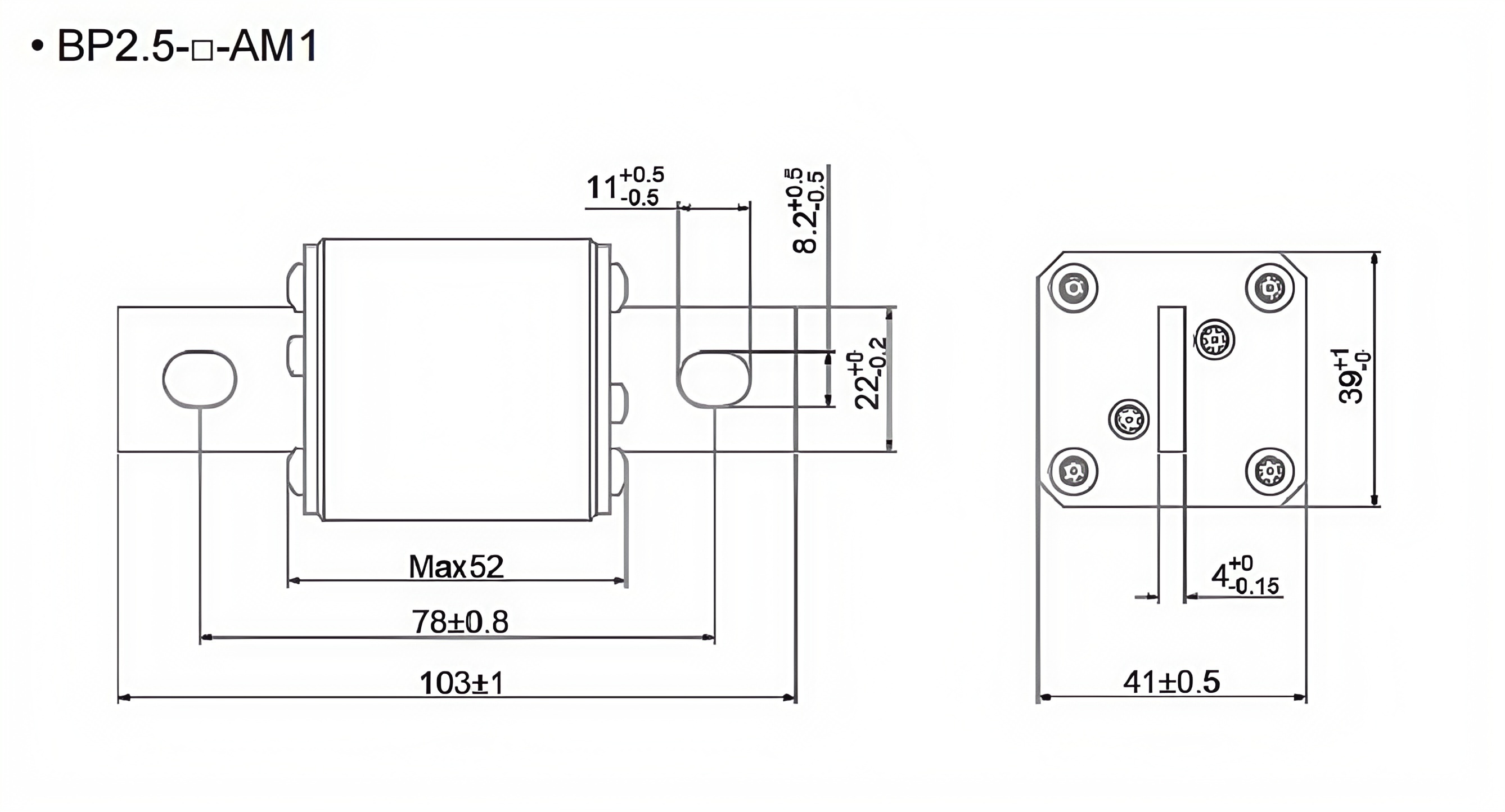

Product Structure Size
- Warranty:
- 3 Years
- Application:
- Electric vehicle
- Brand Name:
- Hudson
- Model Number:
- BP2.5-AM
- Place of Origin:
- China
- Usage:
- High Voltage
- Breaking Capacity:
- High
- Safety Standards:
- IEC
- Rated voltage:
- 250V
- Rated current A:
- 200-630A
- Size code:
- /
- Power consumption W:
- 4-30
- Breaking capacity:
- 50kA
- Performance reference:
- UL248 IEC60269
- certification:
- ISO8820 GB/T31465
