SINOFUSE RS309-MD-1000A-1200A 500V High Voltage DC/AC Fuses

stars, based on 0reviews

$47.90 piece

Quantity Price

100+ $42.63

1000+ $39.76

Product Detai Reference

Number	Model	Size code	Rated current A	Breaking capacity data		Power dissipation	Remark
Number	Model	Size code	Rated current A	Before the arc	Fusing	Power dissipation	Remark
1	RS309-MD-35A	3XA	35	46	175	9	Installation bolt M8, recommended torque 12±1N.m
2	RS309-MD-40A		40	95	355	8
3	RS309-MD-45A		45	150	480	8
4	RS309-MD-50A		50	190	750	8
5	RS309-MD-60A		60	280	870	10
6	RS309-MD-70A	4ZA	70	350	1090	11
7	RS309-MD-80A		80	430	1490	13
8	RS309-MD-90A		90	560	1750	15
9	RS309-MD-100A		100	810	2650	18
10	RS309-MD-125A	5ZA	125	1250	3700	28
11	RS309-MD-150A		150	1850	7100	32
12	RS309-MD-175A		175	3400	15000	36
13	RS309-MD-200A		200	5840	23500	40
14	RS309-MD-225A	6ZA	225	8800	33100	40	Install bolt M10, recommended torque 21±1N.m
15	RS309-MD-250A		250	11200	39000	42
16	RS309-MD-275A		275	14700	46200	47
17	RS309-MD-300A		300	18800	61500	52
18	RS309-MD-325A		325	22500	72500	55
19	RS309-MD-350A		350	26200	81500	60
20	RS309-MD-400A		400	31000	108500	66
21	RS309-MD-450A	7ZB	450	39500	146000	75
22	RS309-MD-500A		500	48000	178500	85
23	RS309-MD-600A		600	59000	255000	110
24	RS309-MD-700A	8ZB	700	75000	366000	120	Installation of bolt M2, recommended torque 28±1N.m
25	RS309-MD-800A	8ZB	800	113000	488000	130
26	RS309-MD-1000A	9ZA	1000	180000	570000	145
27	RS309-MD-1200A	9ZA	1200	250000	700000	180

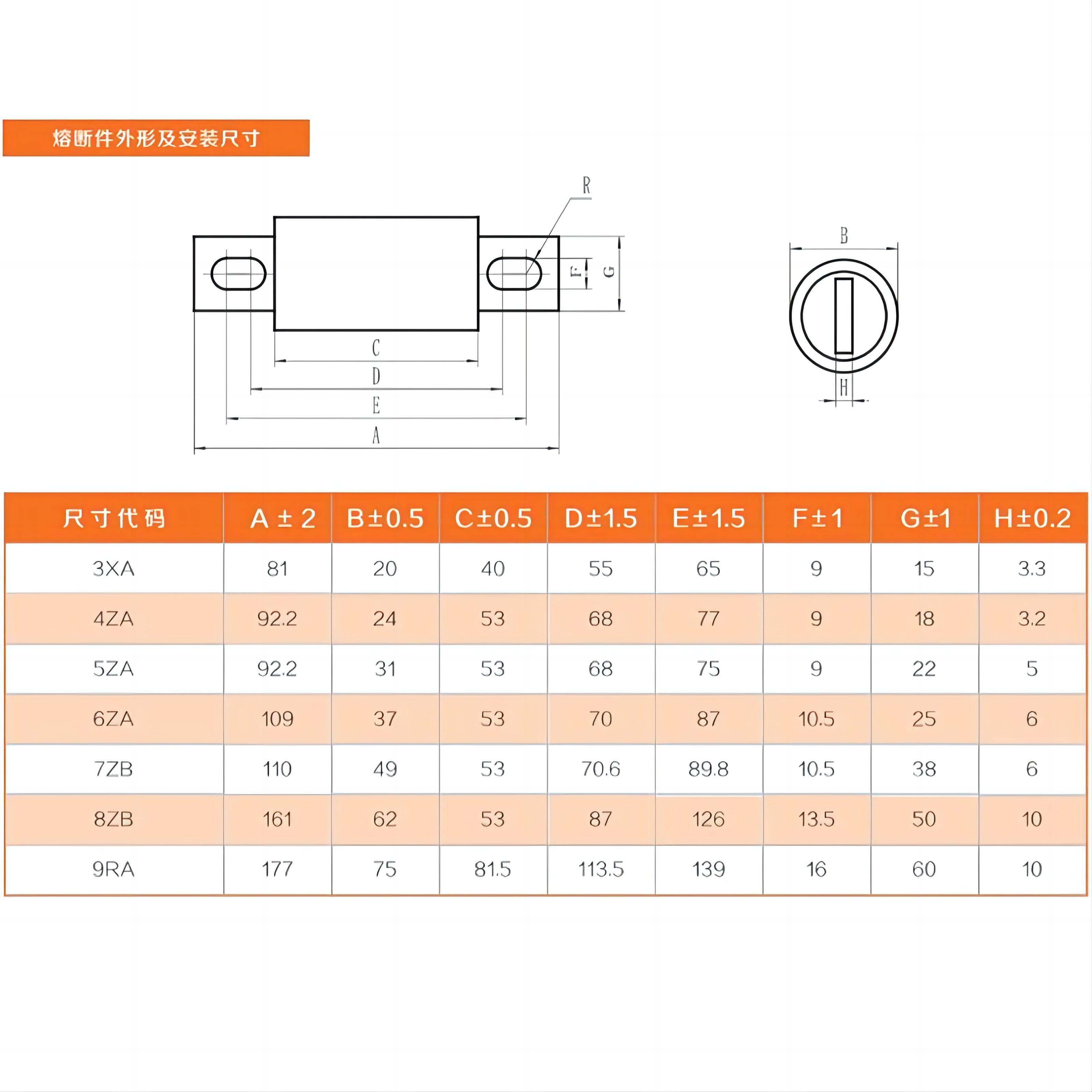

Product Structure Size

SINOFUSE RS309-MD-1000A-1200A 500V High Voltage DC/AC Fuses

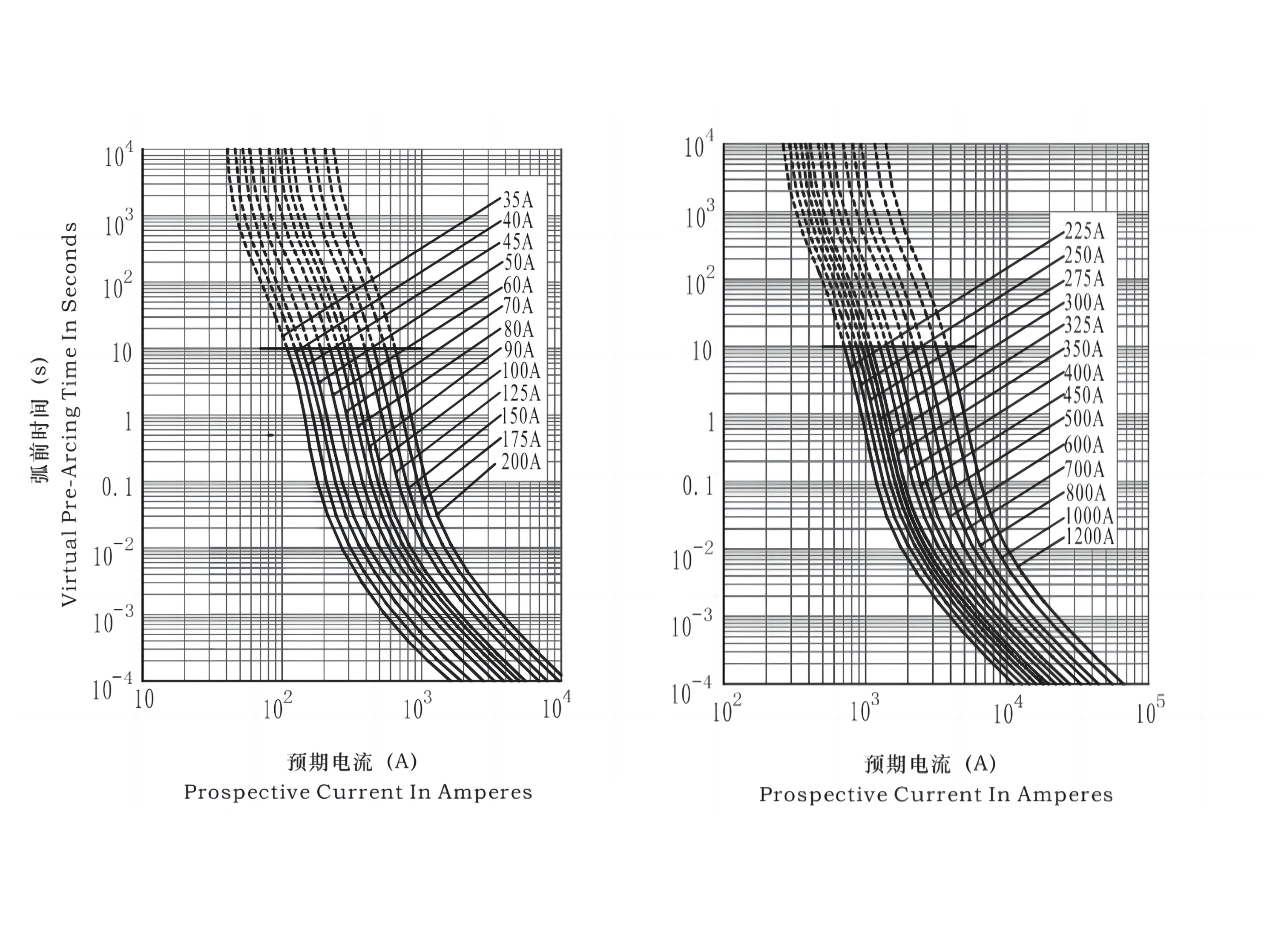

Time Current Characteristic Curve

SINOFUSE RS309-MD-1000A-1200A 500V High Voltage DC/AC Fuses

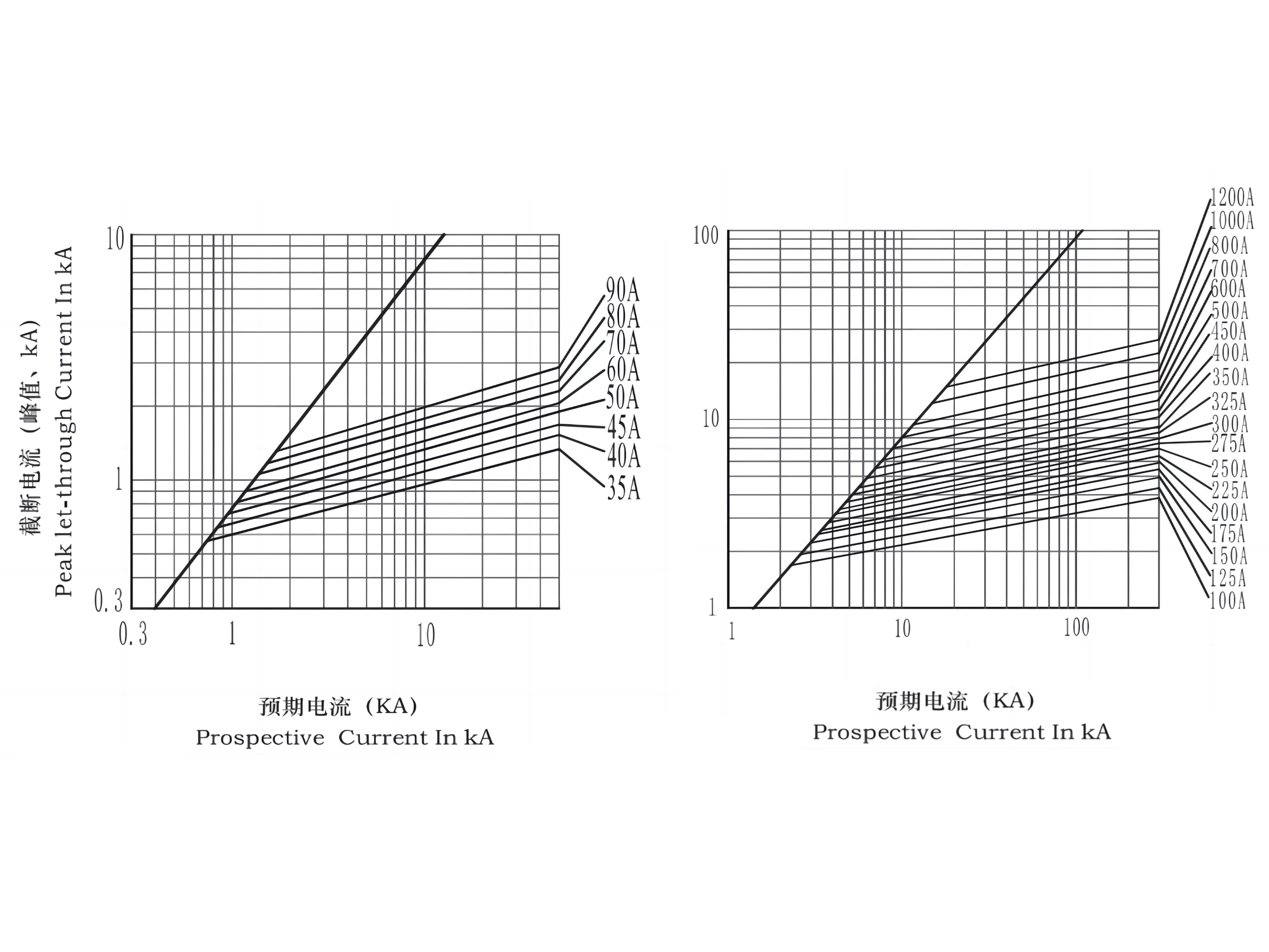

Truncation current characteristic diagram

SINOFUSE RS309-MD-1000A-1200A 500V High Voltage DC/AC Fuses
