SINOFUSE EV315-M-5M100A 500V 100Amps High Voltage DC Fuses

Number

Model

Size code

Rated current A

Breaking capacity data

Power dissipation

Color code

Breaking capacity

Remark

Before the arc

Fusing

1

EV315-L-3E10A

L-3E

10

19

64

2.5

Red

500VDC,10kA L/R<6ms

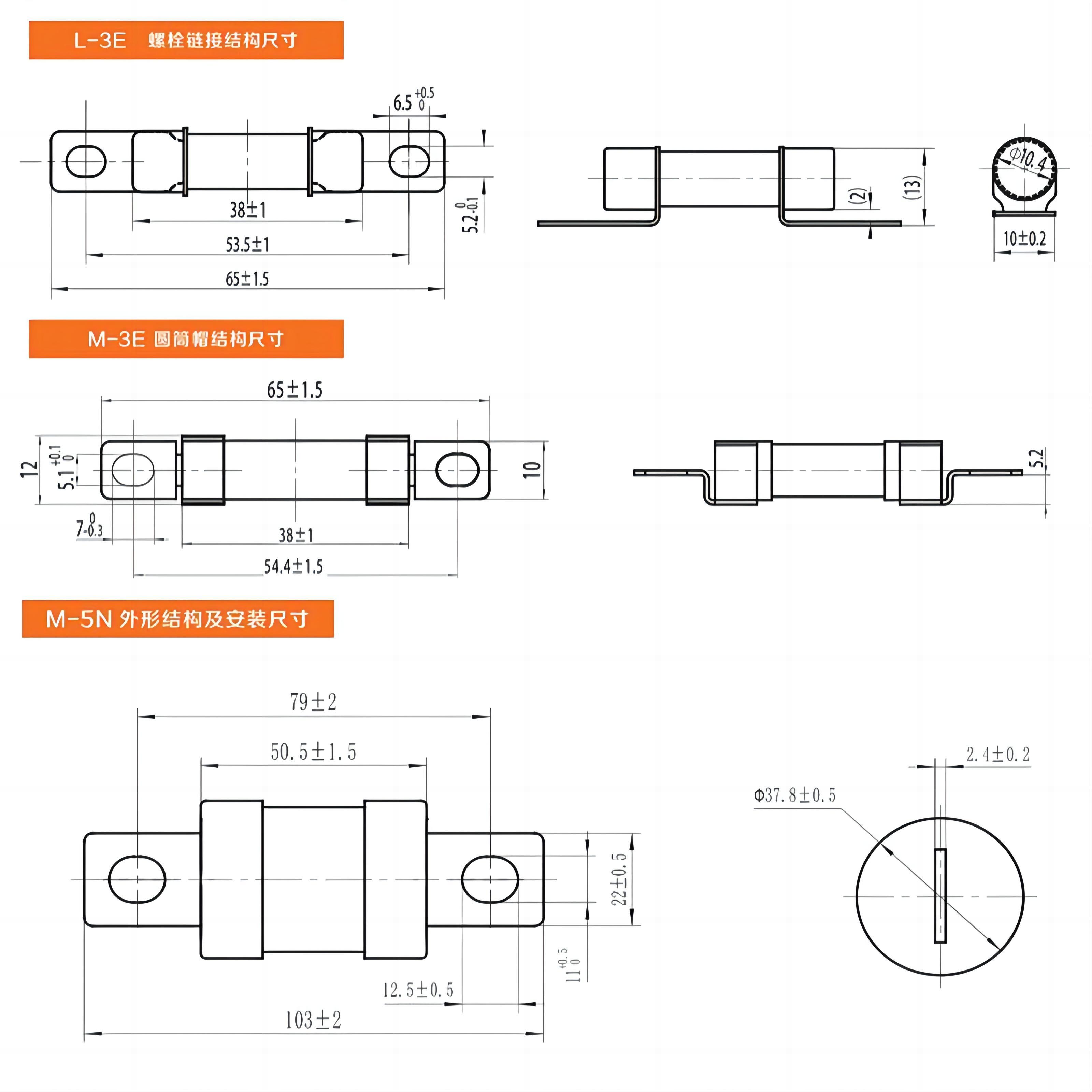

Lower bolt connection structure Mounting bolt M5 Recommended torque (4.0±0.8) N.m

2

EV315-L-3E15A

15

38

128

3.6

Blue

3

EV315-L-3E20A

20

85

288

4.8

Yellow

4

EV315-L-3E30A

30

206

698

6.6

Green

5

EV315-L-3E40A

40

419

1424

8.2

orange

6

EV315-L-3E50A

50

604

2050

10

White

500VDC,6kA L/R<6ms

7

EV315-C-3E10A

C-3E

10

19

64

2.5

Red

500VDC,10kA L/R<6ms

8

EV315-C-3E15A

15

38

128

3.6

Blue

9

EV315-C-3E20A

20

85

288

4.8

Yellow

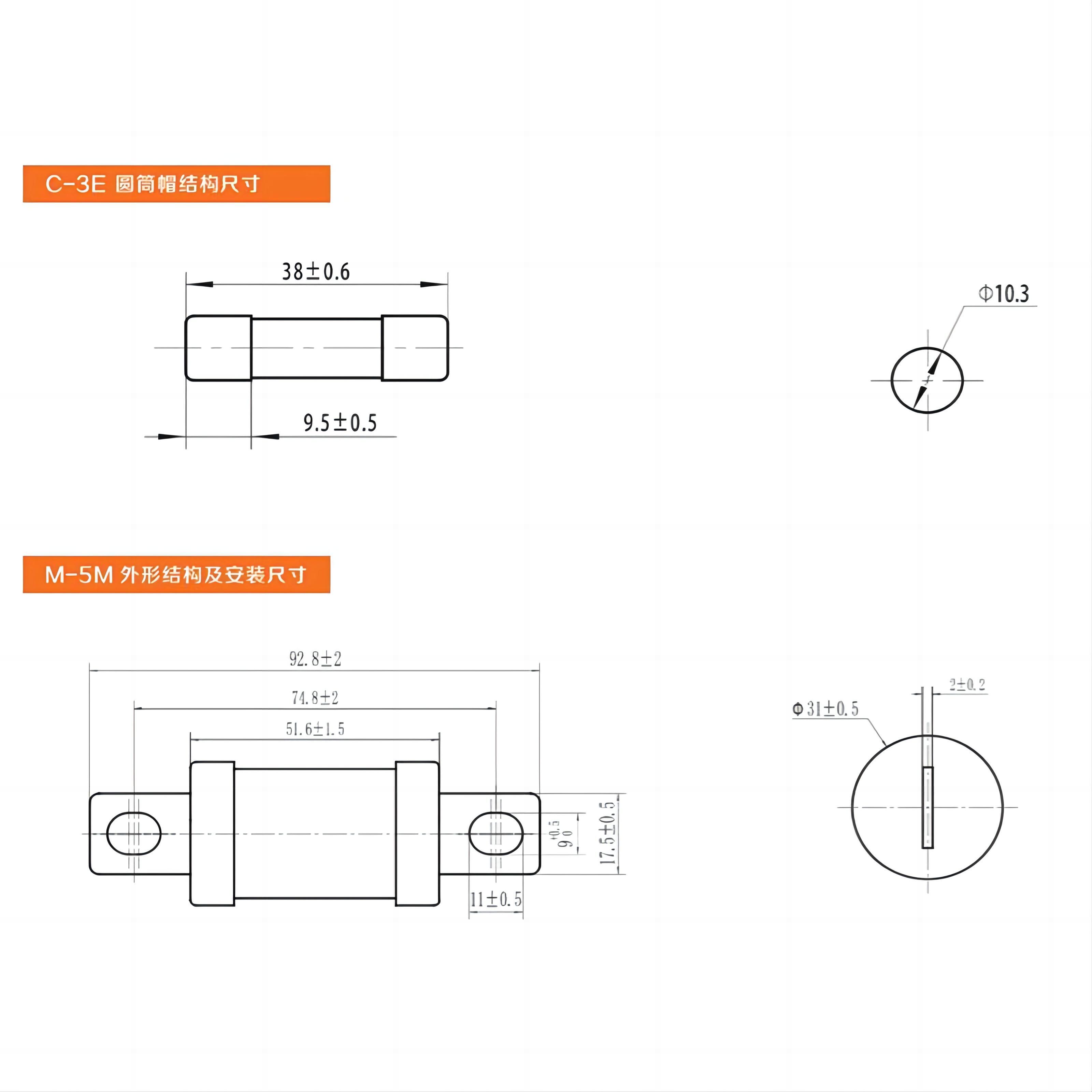

Cap structure

10

EV315-C-3E30A

30

206

698

6.6

Green

11

EV315-C-3E40A

40

419

1424

8.2

orange

12

EV315-C-3E50A

50

604

2050

10

White

500VDC,6kA L/R<6ms

13

EV315-M-3E10A

M-3E

10

19

64

2.5

Red

500VDC,10kA L/R<6ms

Bolt connection in cylinder cap structure Installation bolt M5 Recommended torque (4.0±0.8) N.m

14

EV315-M-3E15A

15

38

128

3.6

Blue

15

EV315-M-3E20A

20

85

288

4.8

Yellow

16

EV315-M-3E30A

30

206

698

6.6

Green

17

EV315-M-3E40A

40

419

1424

8.2

orange

18

EV315-M-3E50A

50

604

2050

10

White

500VDC,6kA L/R<6ms

19

EV315-M-5M100A

M-5M

100

1850

5482

19

―

500VDC,20kA L/R<8ms

Center bolt connection structure Mounting bolt M8 Recommended torque 11N.m

20

EV315-M-5M125A

125

3058

9062

24

―

21

EV315-M-5M150A

150

4778

14159

28.5

―

22

EV315-M-5M175A

175

7399

21928

33.2

―

23

EV315-M-5M200A

200

11561

34262

38

―

24

EV315-M-5M225A

225

16648

49337

40.5

―

25

EV315-M-5M250A

250

22659

67153

45

―

26

EV315-M-5M275A

275

29596

87710

48

―

400VDC,20kA L/R<8ms

27

EV315-M-5M300A

300

38656

114560

50

―

28

EV315-M-5M350A

350

60400

179000

63

―

Center bolt connection structure Mounting bolt M10 Recommended torque 21N.m

29

EV315-M-5N300A

M-5N

300

24859

65000

54

―

500VDC,20kA L/R<8ms

30

EV315-M-5N315A

315

28537

74617

56

―

31

EV315-M-5N350A

350

36117

94437

59.5

―

32

EV315-M-5N400A

400

50733

132653

68

―

33

EV315-M-5N500A

500

79270

207270

80

―

450VDC,20kA L/R<6ms
