PEC500 1500V500A Energy Storage Battery System Connector

                                                                                     Modle

Paramenter name

PEC500 Series

Workplace Temperature

（-40℃～+85℃）

Ingress protection

IPXXB；IPXXD

Housing

High-strength flame retardant plastic

Rated voltage

1500VDC

Contact

 Copper alloy, silver-plated

Rated current

500A Max.

Terminal connection resistor

≤ 0.6 mΩ

Test voltage

6000VDC ; 4000VAC

Minimum number of mating and unplugging cycles

After more than 100 cycles of engagement and disengagement, there are no electrical or mechanical defects.

Salt spray resistance

48 hours, 96 hours

Shield

Without

High-voltage interlocks

Without

Dielectric strength

Leakage current (DC) ≤ 1 mA ; Leakage current (AC) ≤ 5 mA

Vibration resistant

In each of the three mutually perpendicular planes, after a sinusoidal vibration level with a frequency of 10 to 1000 Hz and an acceleration of 10G, there is no unlocking,and exhibited no mechanical or physical damage. The connection resistance varies continuously by more than 7Ω's for less than 1 ms.

Thermal shock

After 20 test cycles from -40° C to +125° C, there were no cracks, chips, or leaks.

RoHS

Satisfy

Project

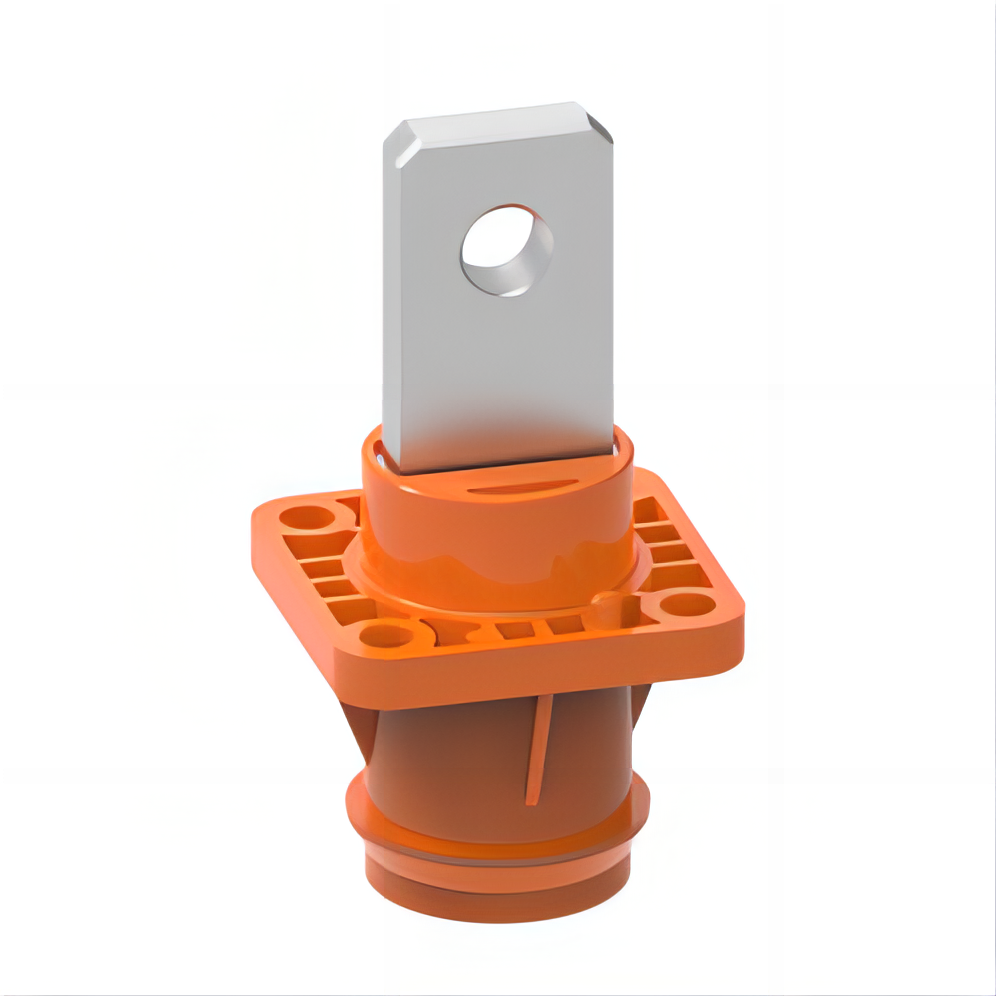

Copper bar type (threaded hole)

Project

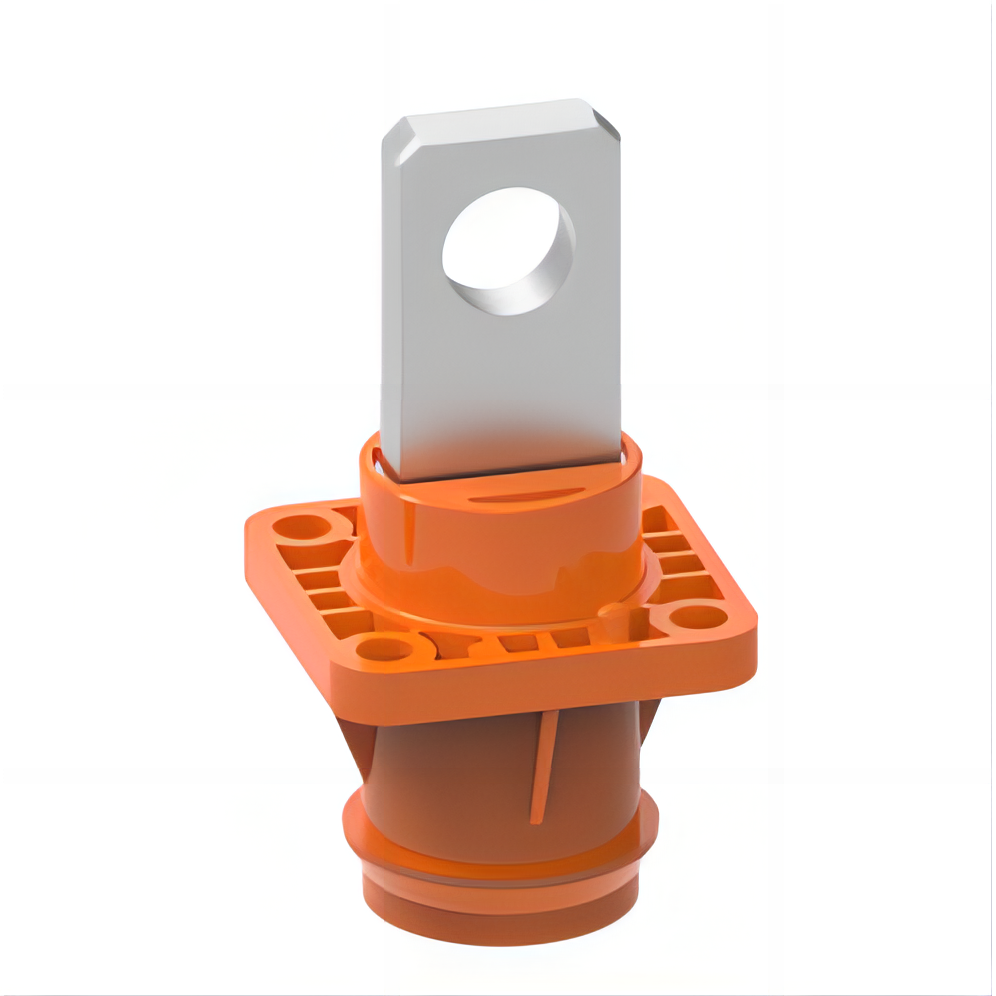

Copper bar type (through hole）



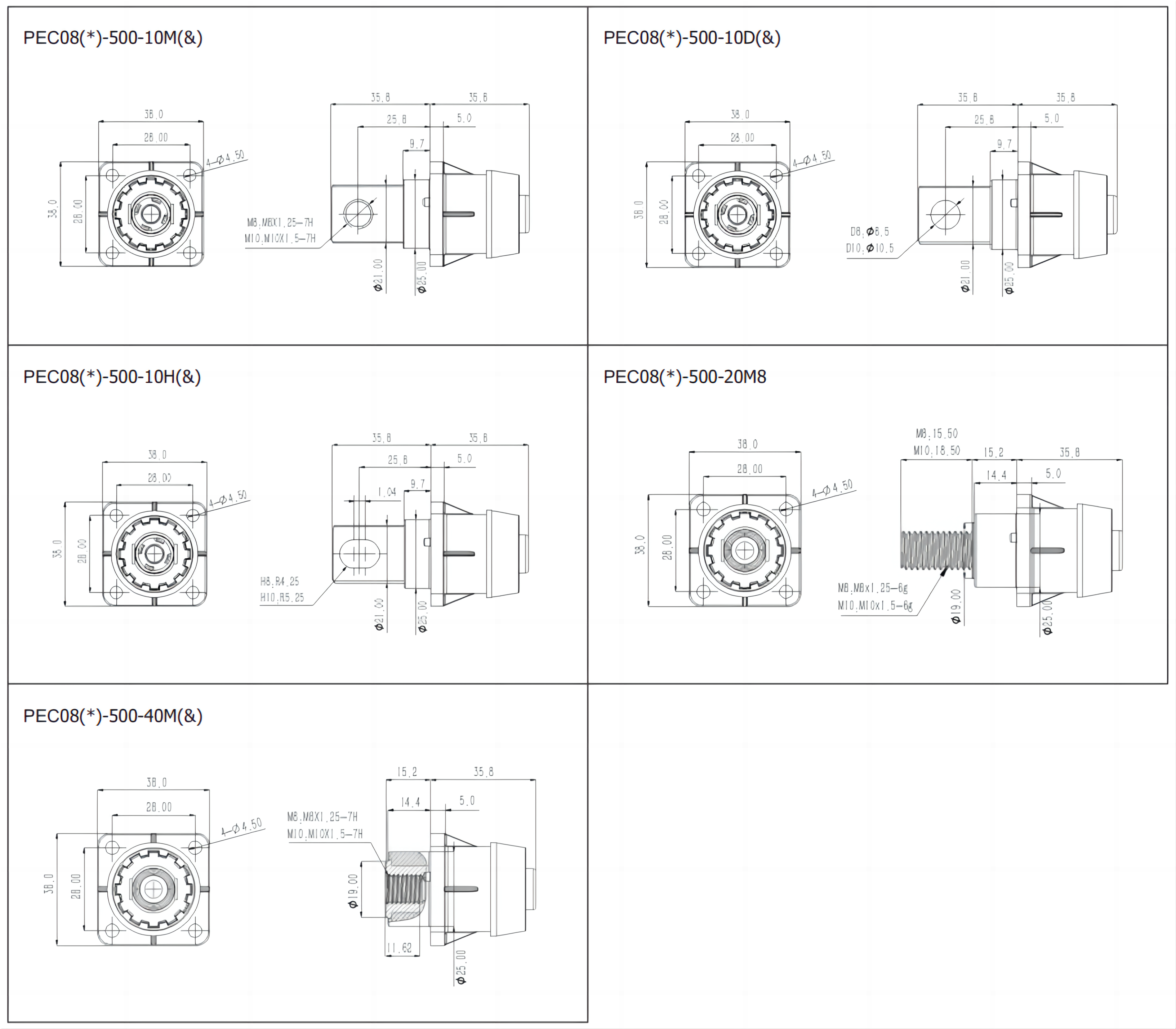

Product Code

PEC08(*)-300-10M(&)

Product Code

PEC08(*)-300-10D(&)

Project

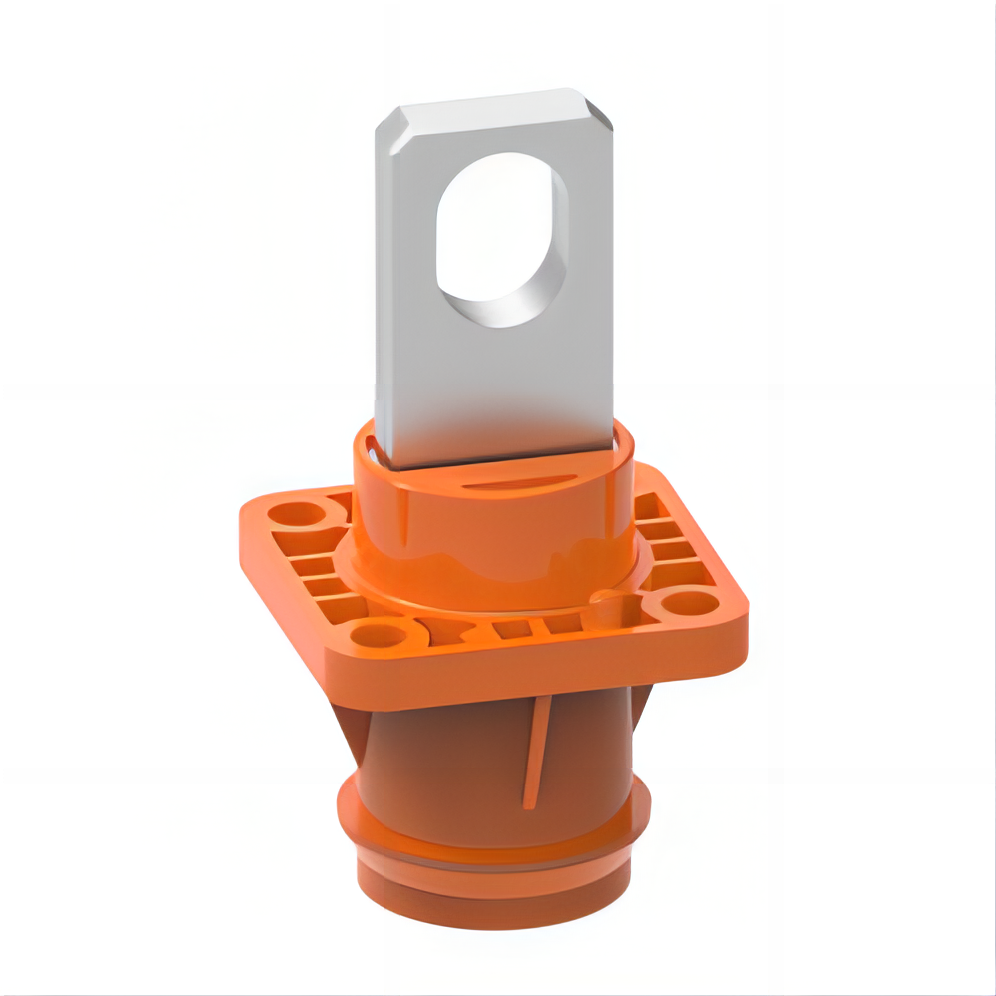

Copper bar type (waist hole)

Project

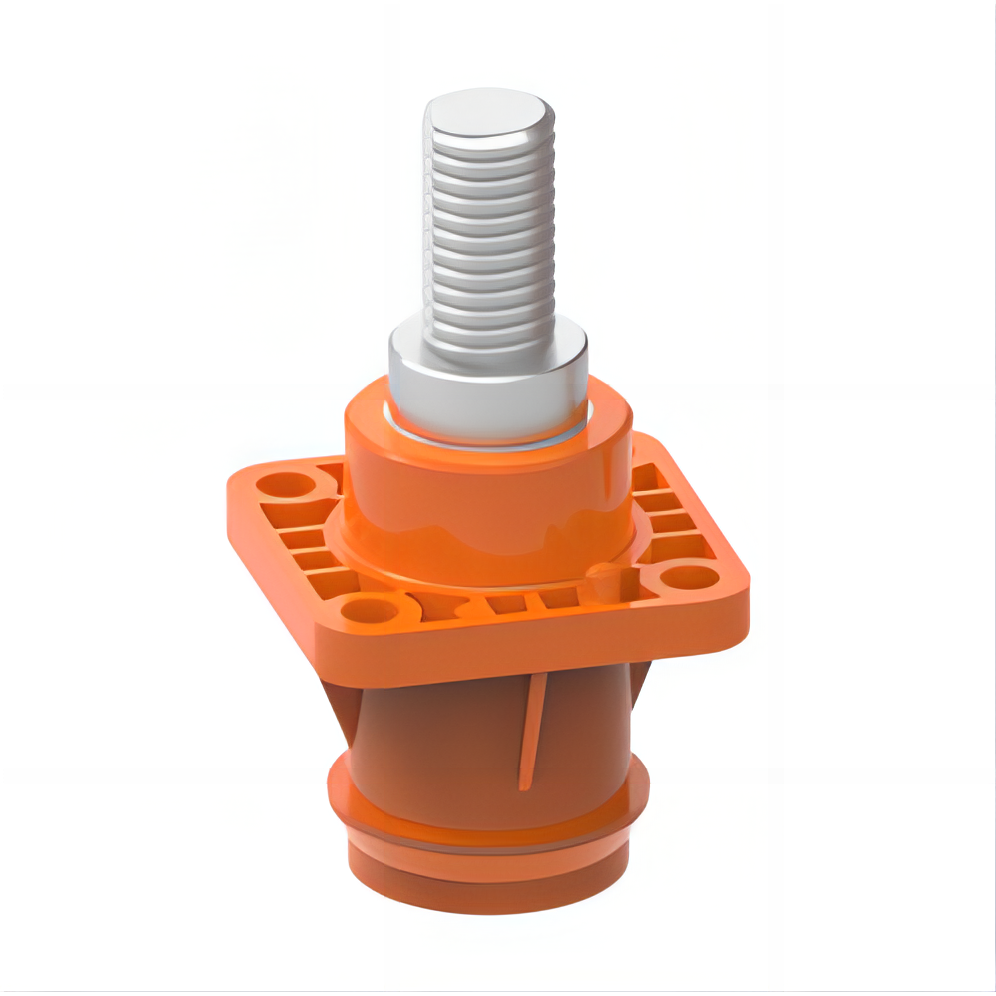

Stud type



Product Code

PEC08(*)-300-10H(&)

Product Code

PEC08(*)-300-20M(&)

Project

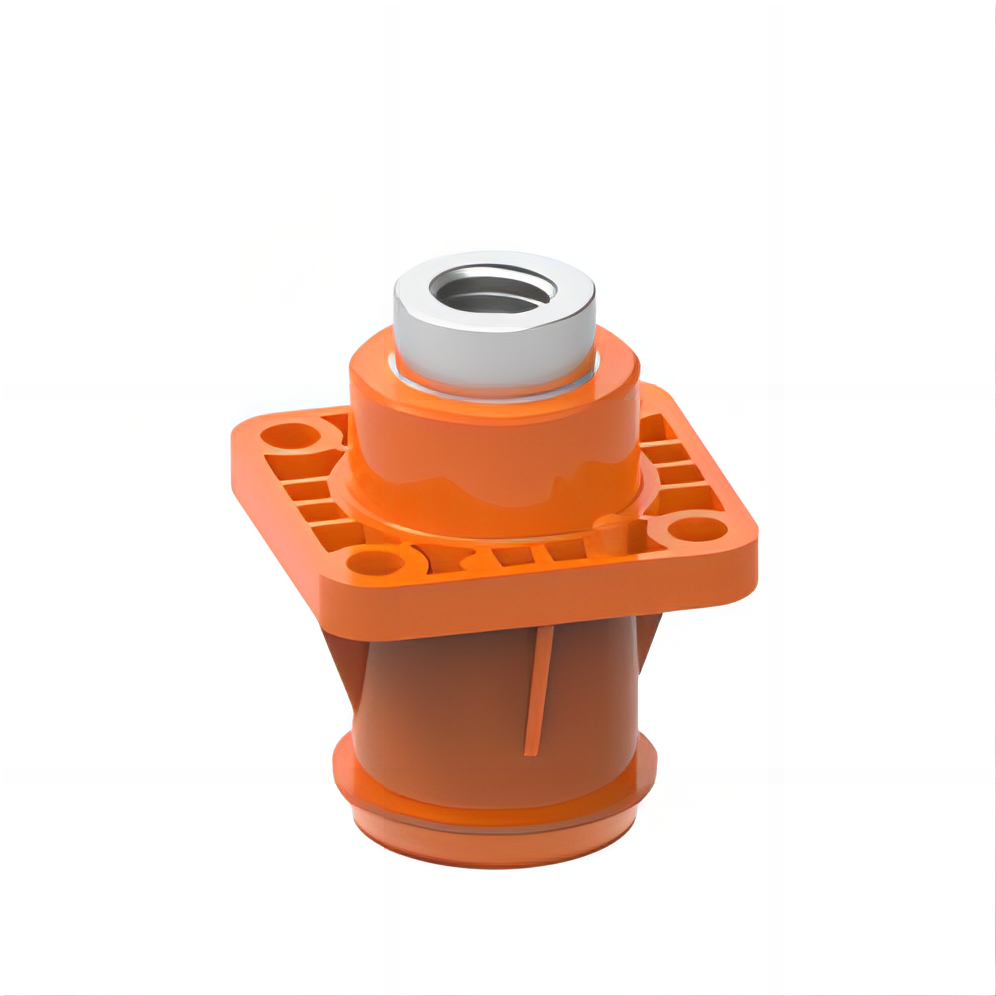

Inner screw hole type


Product Code

PEC08(*)-300-40M(&)

Series

Applicable cable specifications

Rated voltage

Current rating

Product number

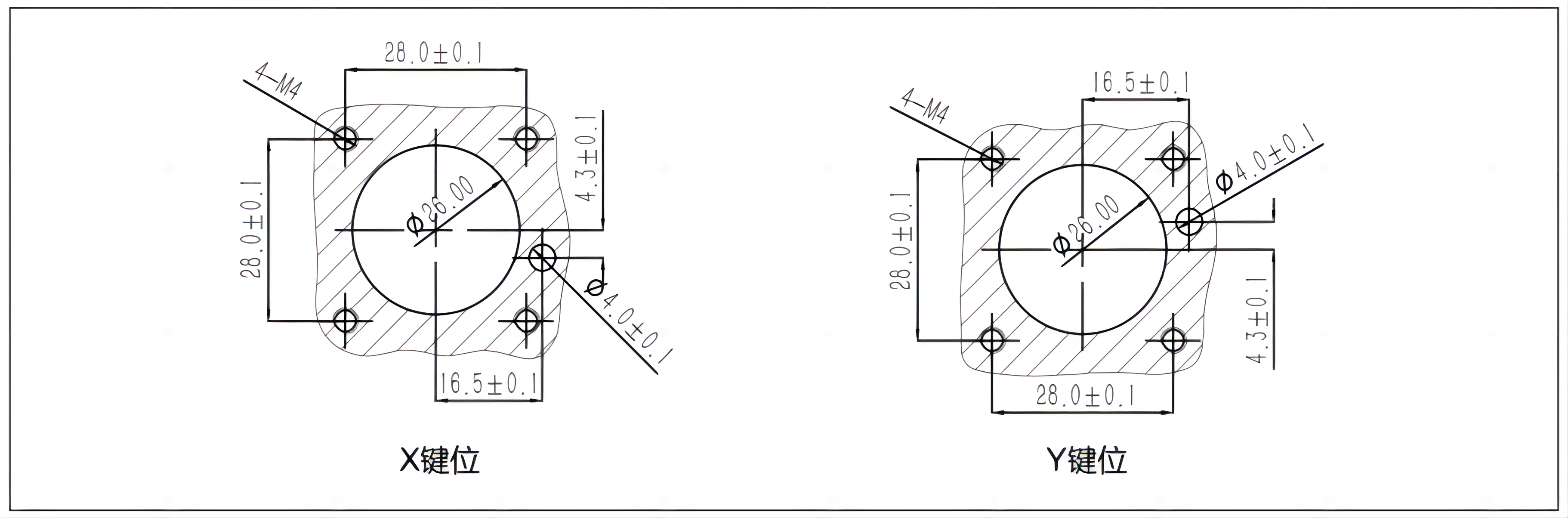

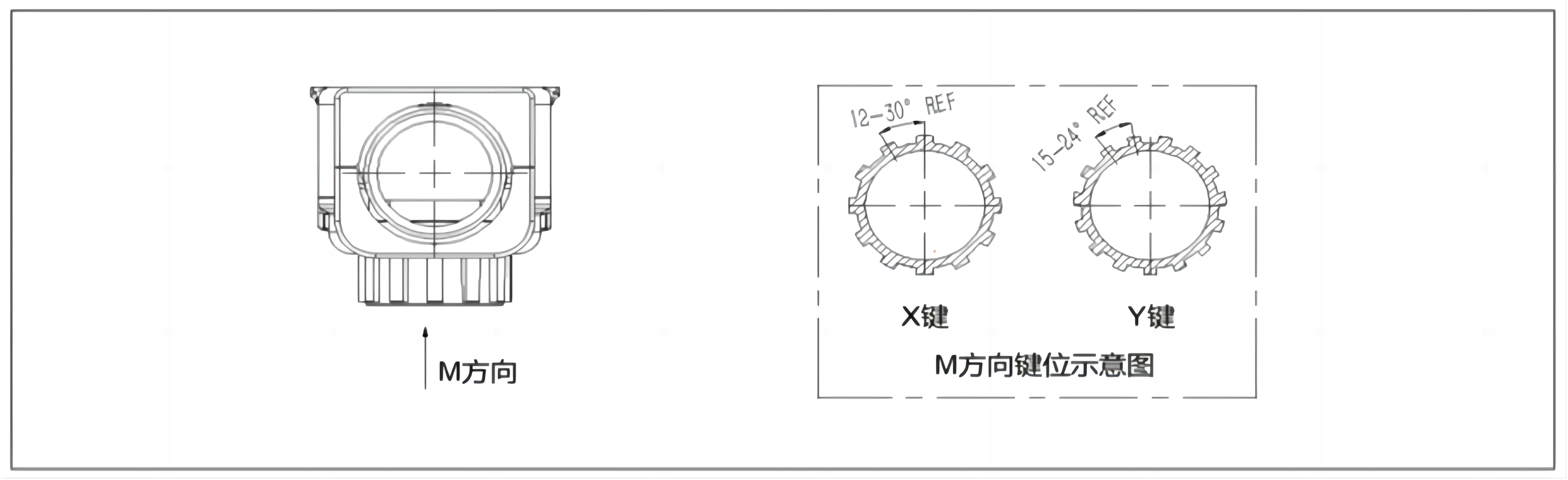

500 Series (X-key)

120mm2

1500V

350A

PEC58X-500-120

135mm2

1500V

400A

PEC58X-500-135

150mm2

1500V

450A

PEC58X-500-150

500 Series (Y-key)

120mm3

1500V

350A

PEC58Y-500-120

135mm3

1500V

400A

PEC58Y-500-135

150mm3

1500V

450A

PEC58Y-500-150
