PEC300 1500V300A Energy Storage Battery System Connector

                                                                                    Modle


Paramenter name

PEC300 Series

Workplace Temperature

（-40℃～+85℃）

Ingress protection

IPXXB ；IPXXD

Housing

High-strength flame retardant plastic

Rated voltage

1500VDC

Contact

Copper alloy, silver-plated

Rated current

300A Max.

Terminal connection resistor

≤ 0.6 mΩ

Test voltage

6000VDC ; 4000VAC

Minimum number of mating and unplugging cycles

After more than 100 cycles of engagement and disengagement, there are no electrical or mechanical defects.

Salt spray resistance

48 hours, 96 hours

Shield

Without

High-voltage interlocks

Without

Dielectric strength

Leakage current (DC) ≤ 1 mA ; Leakage current (AC) ≤ 5 mA

Vibration resistant

In each of the three mutually perpendicular planes, after a sinusoidal vibration level with a frequency of 10 to 1000 Hz and an acceleration of 10G, there is no unlocking,and exhibited no mechanical or physical damage. The connection resistance varies continuously by more than 7Ω's for less than 1 ms.

Thermal shock

After 20 test cycles from -40° C to +125° C, there were no cracks, chips, or leaks.

RoHS

Satisfy

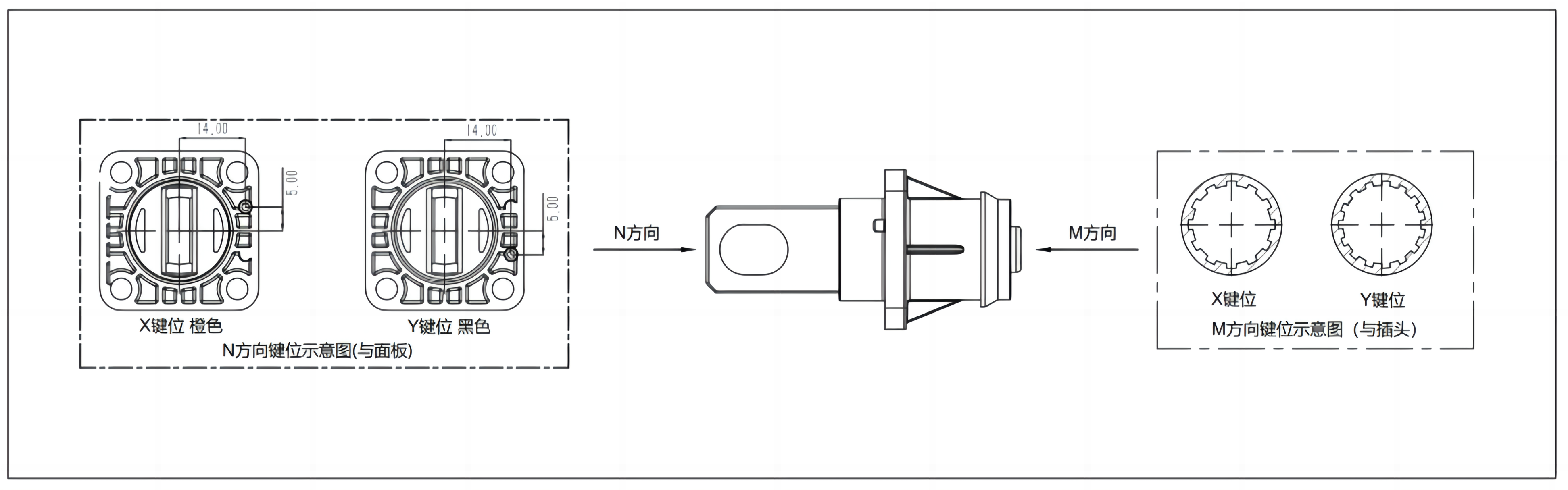

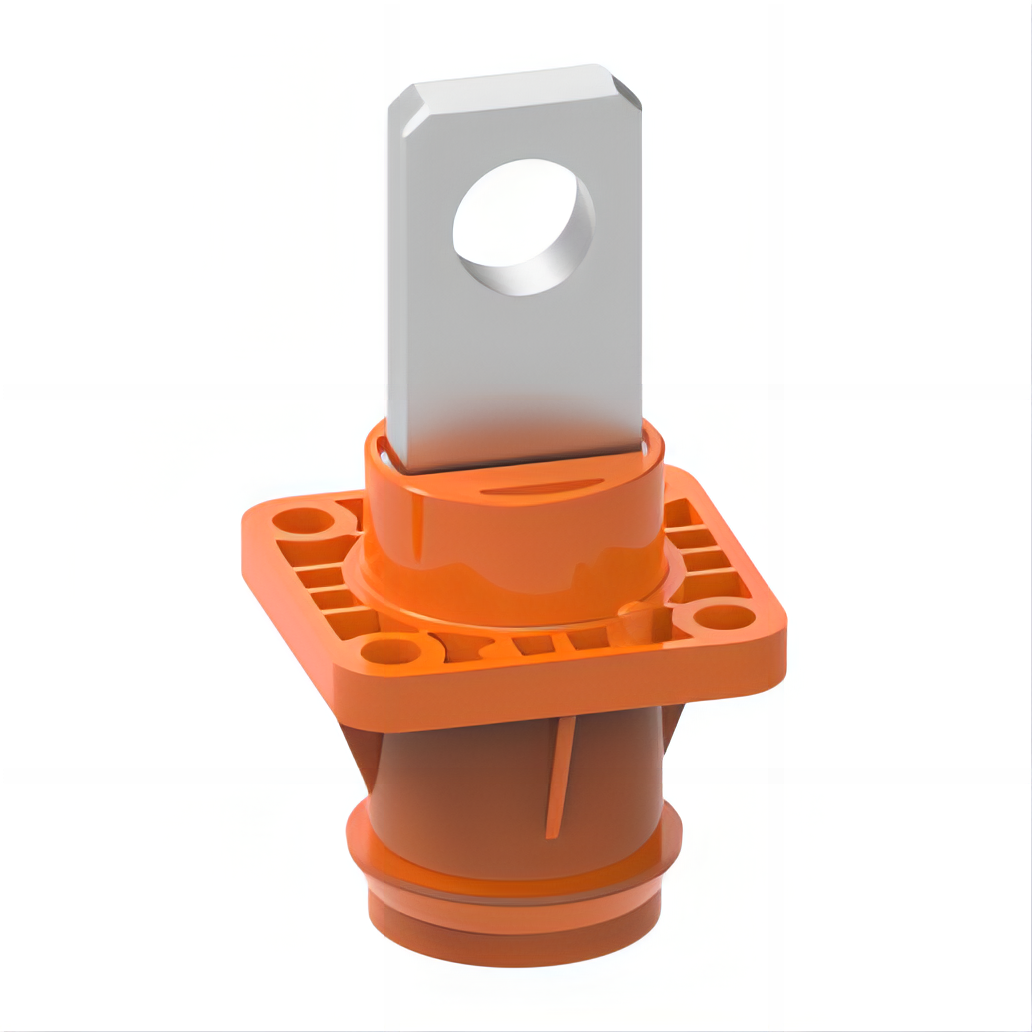

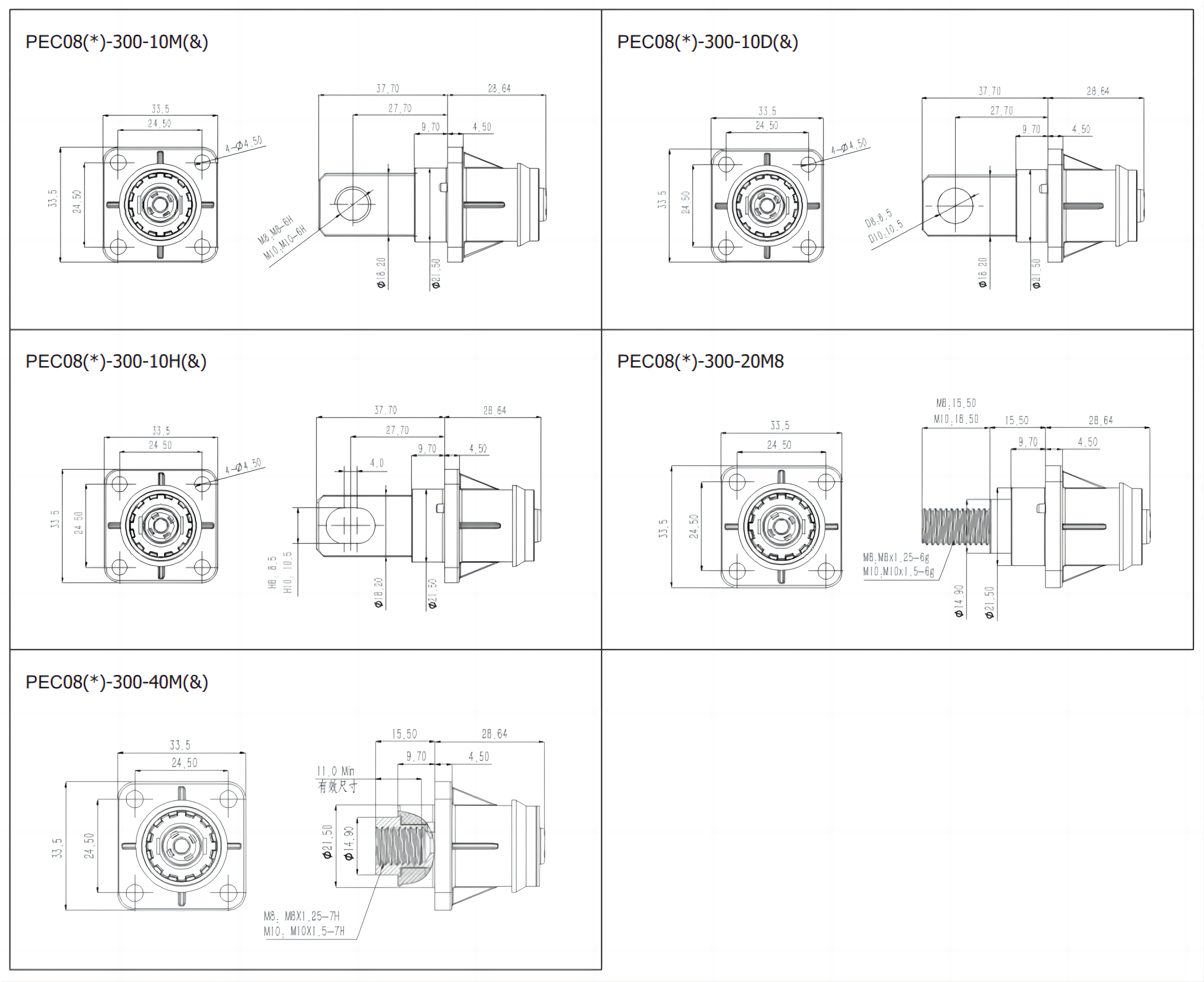

Project

Copper bar type (threaded hole)

Project

Copper bar type (through hole）



Product Code

PEC08(*)-300-10M(&)

Product Code

PEC08(*)-300-10D(&)

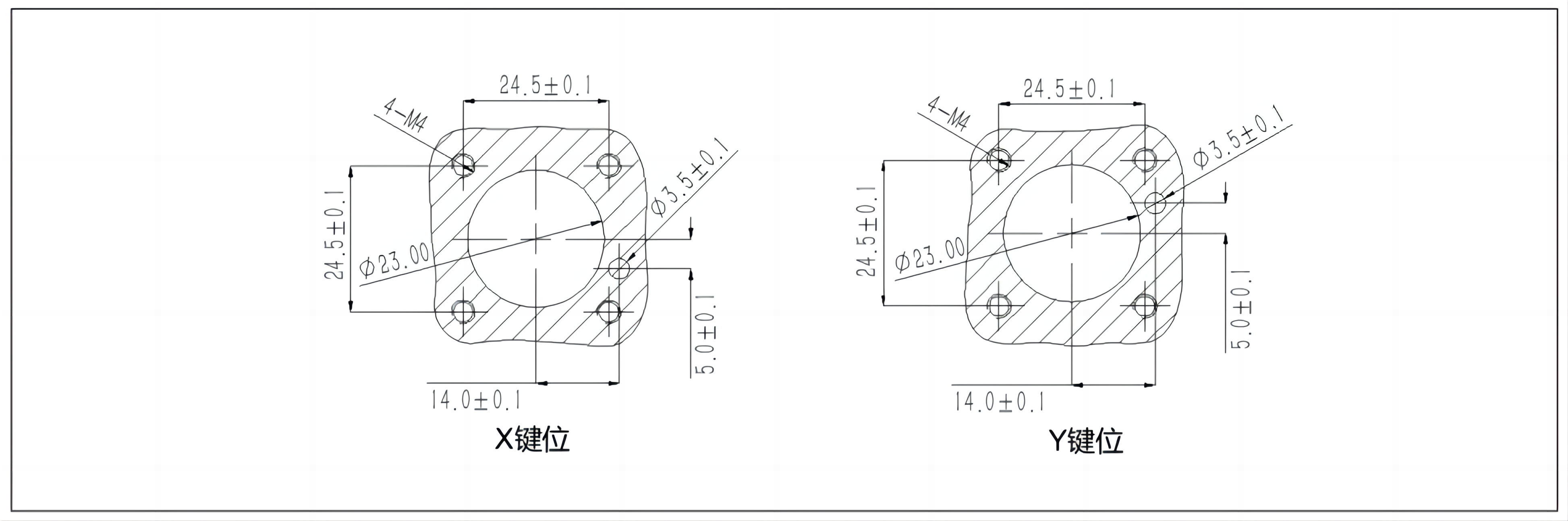

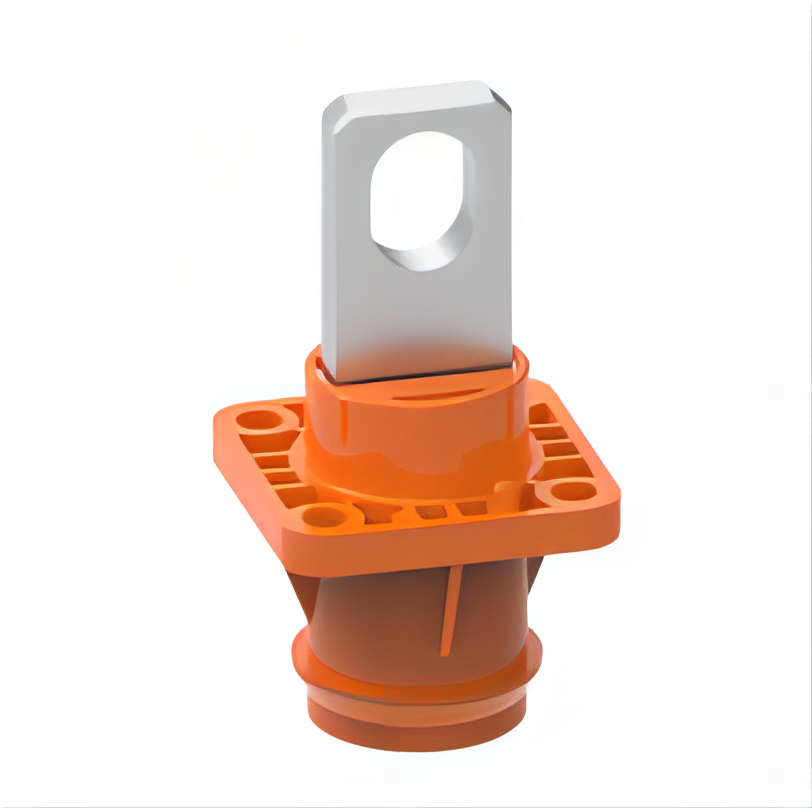

Project

Copper bar type (waist hole)

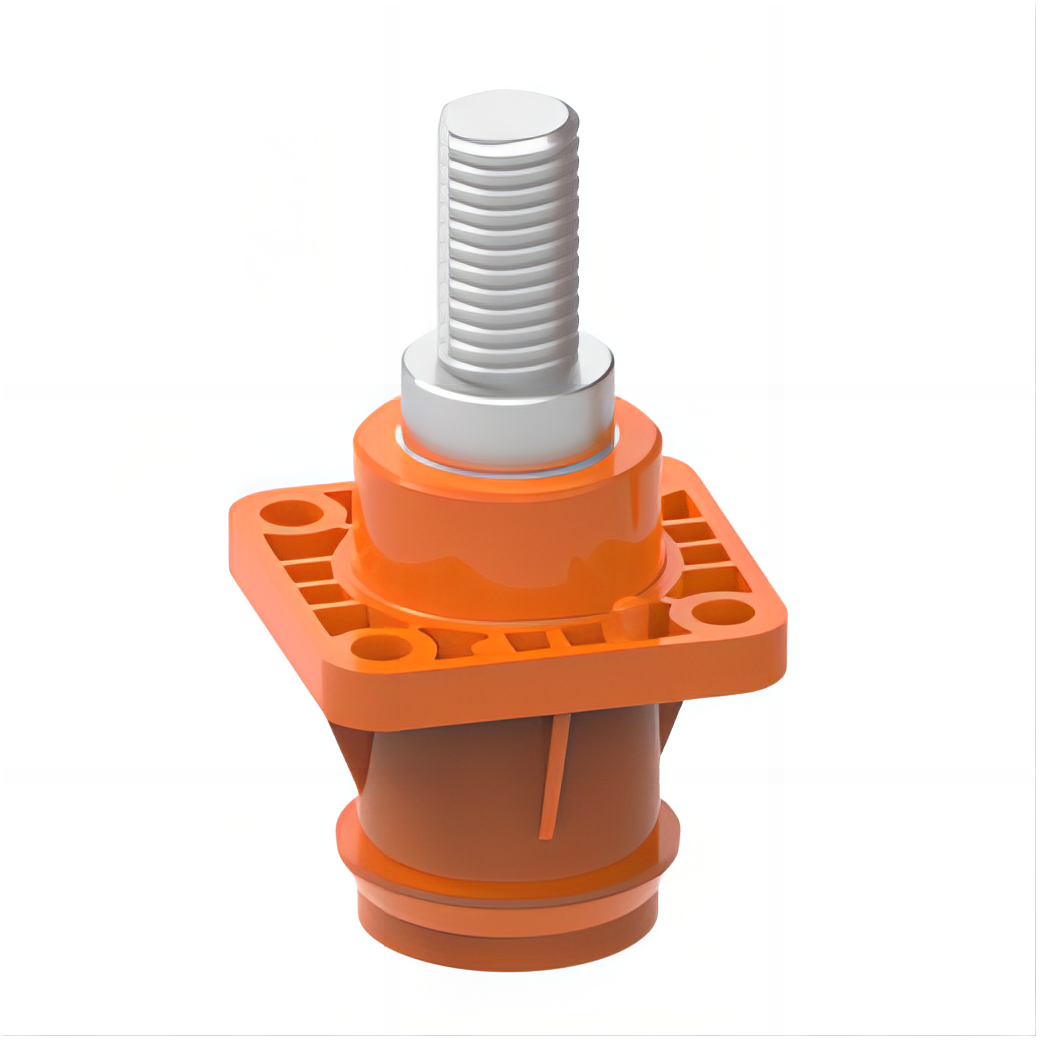

Project

Stud type



Product Code

PEC08(*)-300-10H(&)

Product Code

PEC08(*)-300-20M(&)

Project

nner screw hole type


Product Code

PEC08(*)-300-40M(&)

Series

Applicable cable specifications

Rated voltage

Current rating

Product number

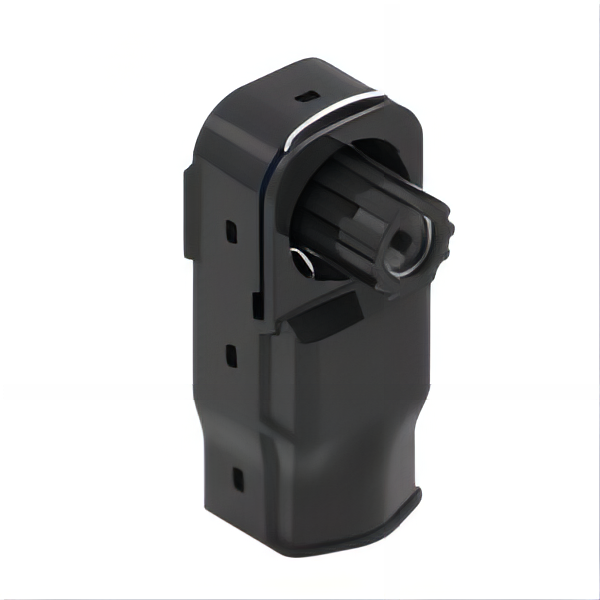

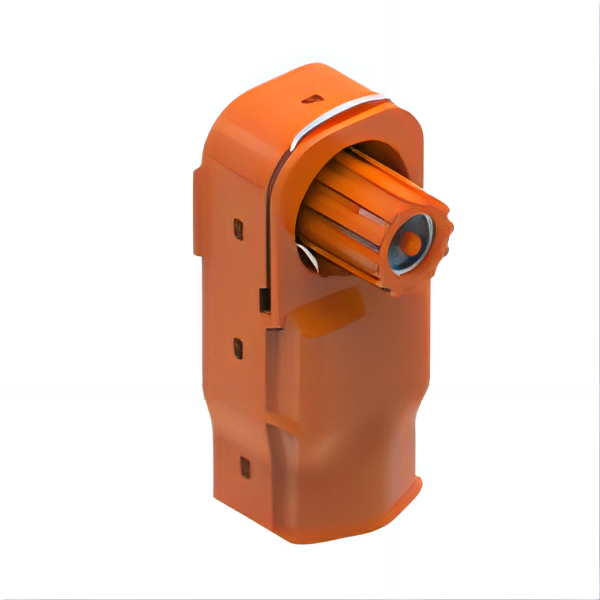

300 Series (X-key)

70mm2

1500V

250A

PEC58X-300-70

95mm2

1500V

300A

PEC58X-300-95

300 Series (Y-key)

70mm2

1500V

250A

PEC58Y-300-70

95mm2

1500V

300A

PEC58Y-300-95
