20000A Series BA400-750 Three -Phase 750Vac 20KW
Product Parameters
Product Parameters
| Product Name | BA400-750 |
| DC bus side | |
| Rated output power | 20KW |
| Rated output current | 30-60A |
| Output voltage range | 200-750Vdc |
| Efficiency | ≥95% |
| Battery-side | |
| Voltage range | 30~100Vdc |
| Rated voltage | 60Vdc |
| Max Current | 105Amax |
| Power rating | 5kW |
| Steady-current accuracy | ≤±5% |
| Current ripple | <5% |
| Voltage ripple | <2% |
| Standby consumption | <30W (Vbat=100Vdc, module dormant) |

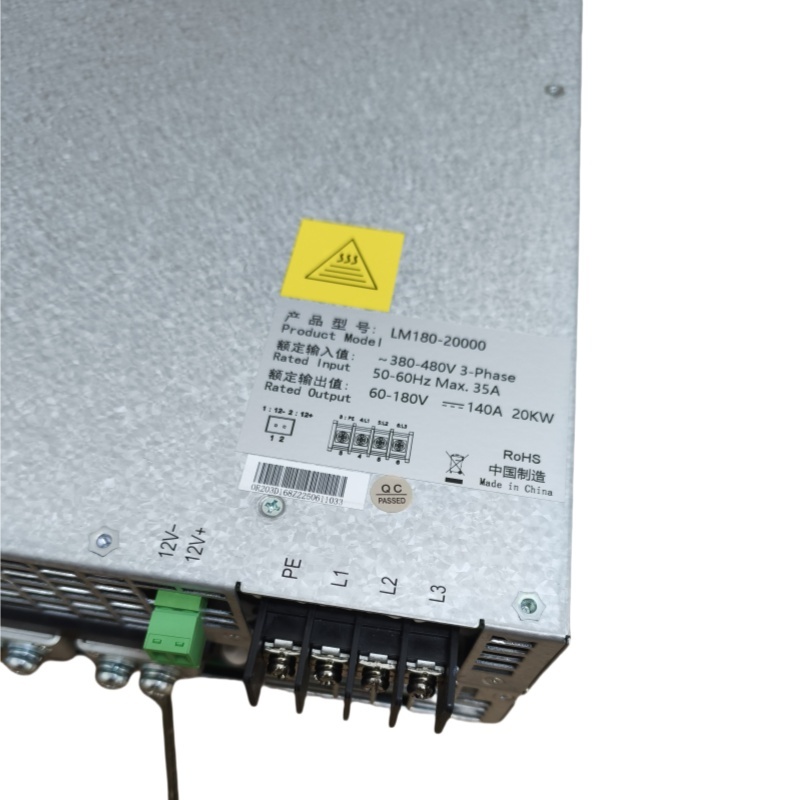

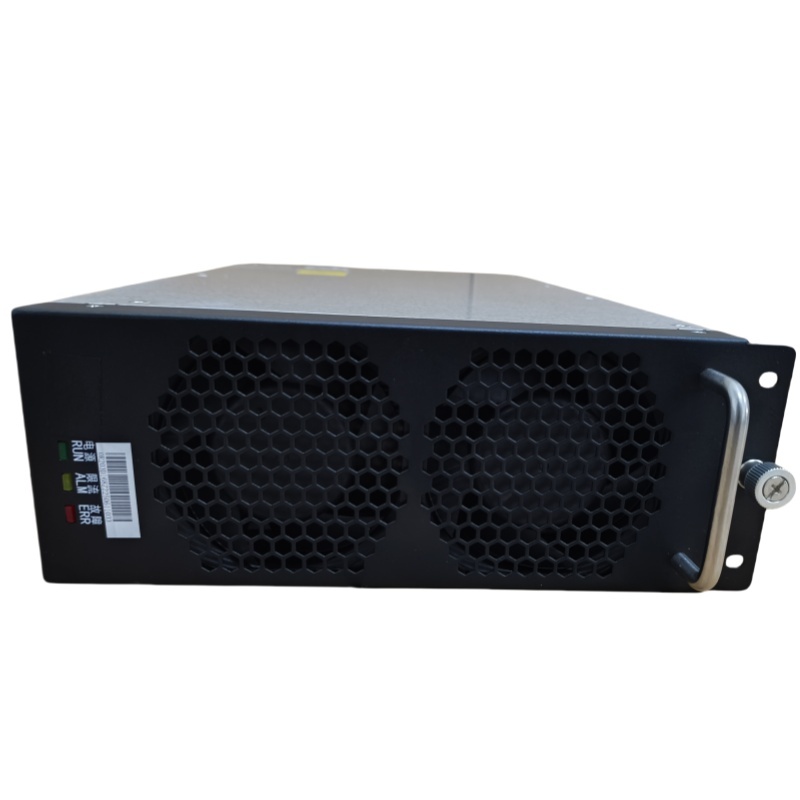

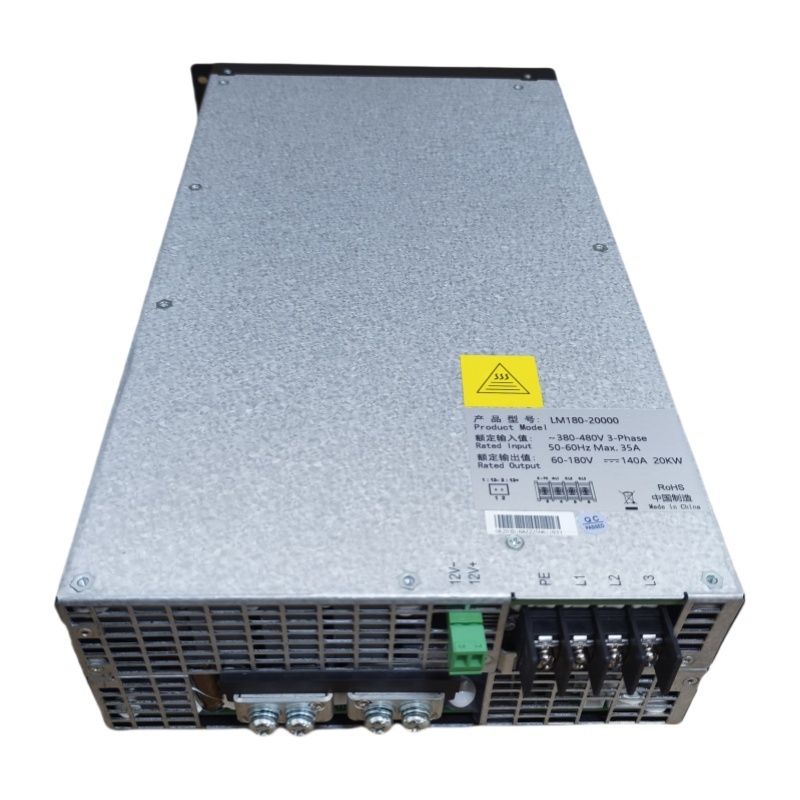

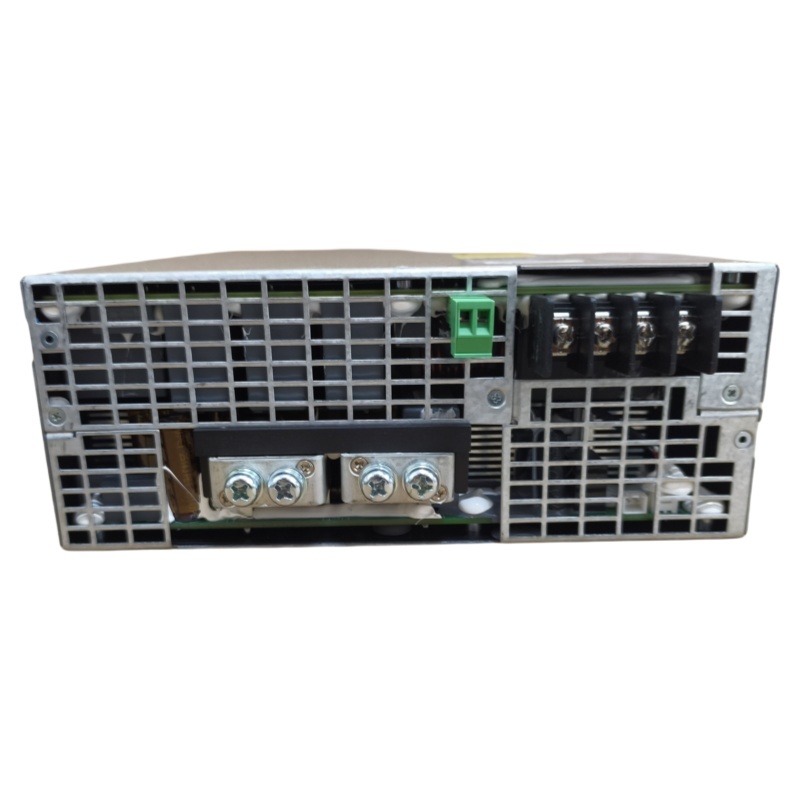

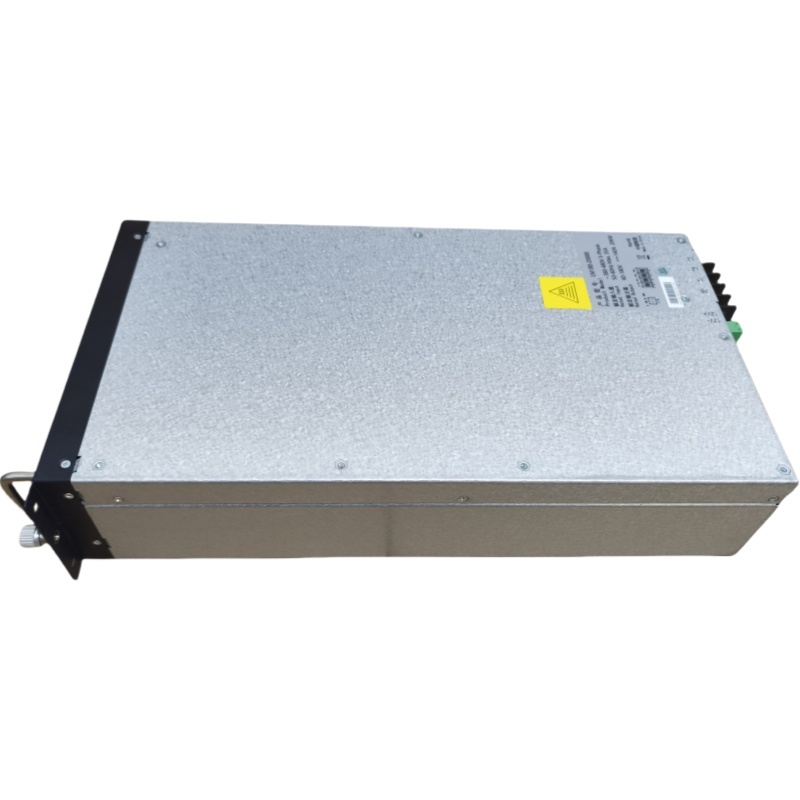

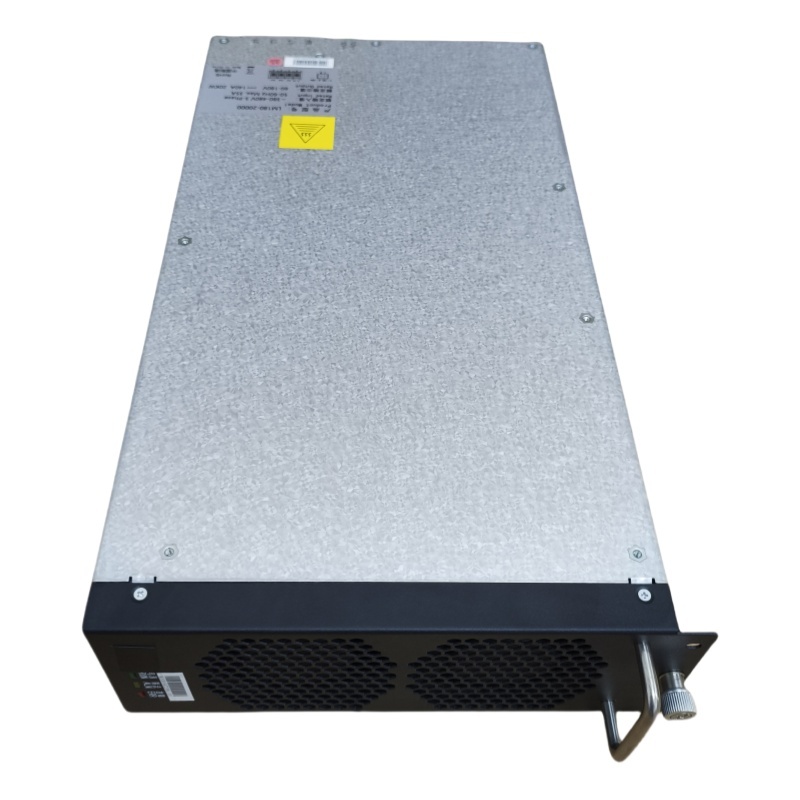

Product Picture
| Rated input voltage | Three-phase380Vac/480Vac |
| input Input voltage range | 23Vac~520Vac(Full load), 323Vac~260Vac |
| input Frequency | 45Hz~65Hz |
| Size | 220*82*440mm |
| Weight | 6KG |
| Details of the picture |
- DC bus Voltage range:
- Three-phase380Vac/480Vac
- AC input Input voltage range:
- 23Vac~530Vac(Full load), 323Vac~260Vac
- AC input Input current:
- <40A
- AC input Frequency:
- 45Hz~65Hz
- AC input Power factor(PF):
- ≥0.99
