NDZ3W-250 High voltage DC Contactor Coil voltage DC12V DC24V

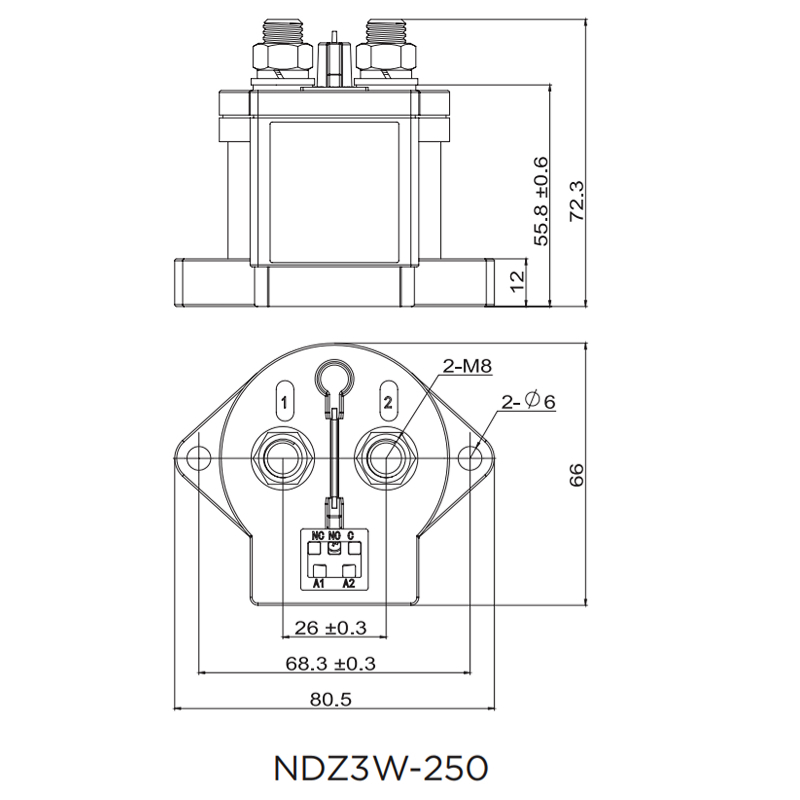

Product Detai Reference
|
Modle |
NDZ3W-250 |
|
||
|
Rated current |
200A |
|||
|
Rated voltage |
DC500V/DV750V/DC1000V |
|||
|
Insulation voltage |
≥1000MΩ DC1000V |
|||
|
Number of poles |
Single pole |
|||
|
Type of circuit |
DC |
|||
|
Mechanical life |
1,000,000 times |
|||
|
Coil valtage |
DC12V、DC24V |
|||
|
Electrical life |
DC 500V |
250A 6000times |
||
|
DC 750V |
250A 1000times |
|||
|
Maximum breaking
current |
DC320V 1000A 1/once |
|||
|
Shot-circuit
withstand current |
3750A 30ms |
|||
|
Insulation resistance |
100MΩ DC500V |
|||
|
Withstand voltage |
AC3500V 60s |
|||
|
Rated control voltage
Uc |
Rated control voltage：DC12V/24V |
|||
|
Retention power
consumption(20℃,Rated voltage control) |
3W/3.6VA |
|||
|
Auxiliary contact
type |
Without Auxiliary
contact，1NO，1NC，1NC＋1NO |
|||
|
Workplace Temperature |
(-40°C～+85°C) |
|||
|
Power frequency
withstand voltage |
AC2500V 60s, Leakage
current ≤ 1mA |
|||
- Electrical Life Line Chart
- Current Time Line Chart
- Warranty:
- 2 Years
- Application:
- Charging piles
- Breaking Capacity:
- DC320V 1000A
- Number of Pole:
- 2
- Phase:
- 2
- Place of Origin:
- Shanghai, China
- Brand Name:
- LAZZEN
- Model Number:
- NDZ3W-250
- Package type:
- Epoxy package
- Load polarity:
- Without polarity
- Operating voltage range:
- DC12-1000V
- Contact Resistance:
- 0.5mOhm(at50A)
- Control coil:
- DC12V DC24V
- Mechanical life:
- 1 million times
- Auxiliary contact:
- 1NO 1NC 1NC+1NO
- Electrical life:
- DC500V 250A 6000times
- Weight:
- 460g
- Certification:
- CCC CB CE TUV UL
