HFE85P-150 HONGFA High voltage DC Contactor 1000V 150A 4v dc 12V DC

                          Modle

Paramenter name

HFE85P-150

HFE85P-250

HFE85P-300

Rated current

150A

250A

300A

Rated voltage

DC12～1500V

Insulation voltage

≥100MΩ DC1000V

Number of poles

Single pole

Type of circuit

DC

Mechanical life

200,000 times

Electrical endurance

Breaking

50ops(450VDC,-300A)
1000ops(450VDC,300A)

500ops
(1000VDC, 250A)

100ops(1000V,300A)

6000ops
(1500VDC,60A)

6000ops
(1500VDC, 60A)

Maximum breaking current

1000A(320VDC)1op

2000A(320VDC)1op

2000A(320VDC)1op

Operate time (at rated volt.)

≤30ms

Release time (at rated volt.)

≤10ms

Withstand voltage

Between coil & contacts

3300 VAC 1min

Between open contacts

3300 VAC 1min

Between contacts &
auxiliary contacts

3300 VAC 1min

Rated control voltage Uc

Rated control voltage：DC12V/24V

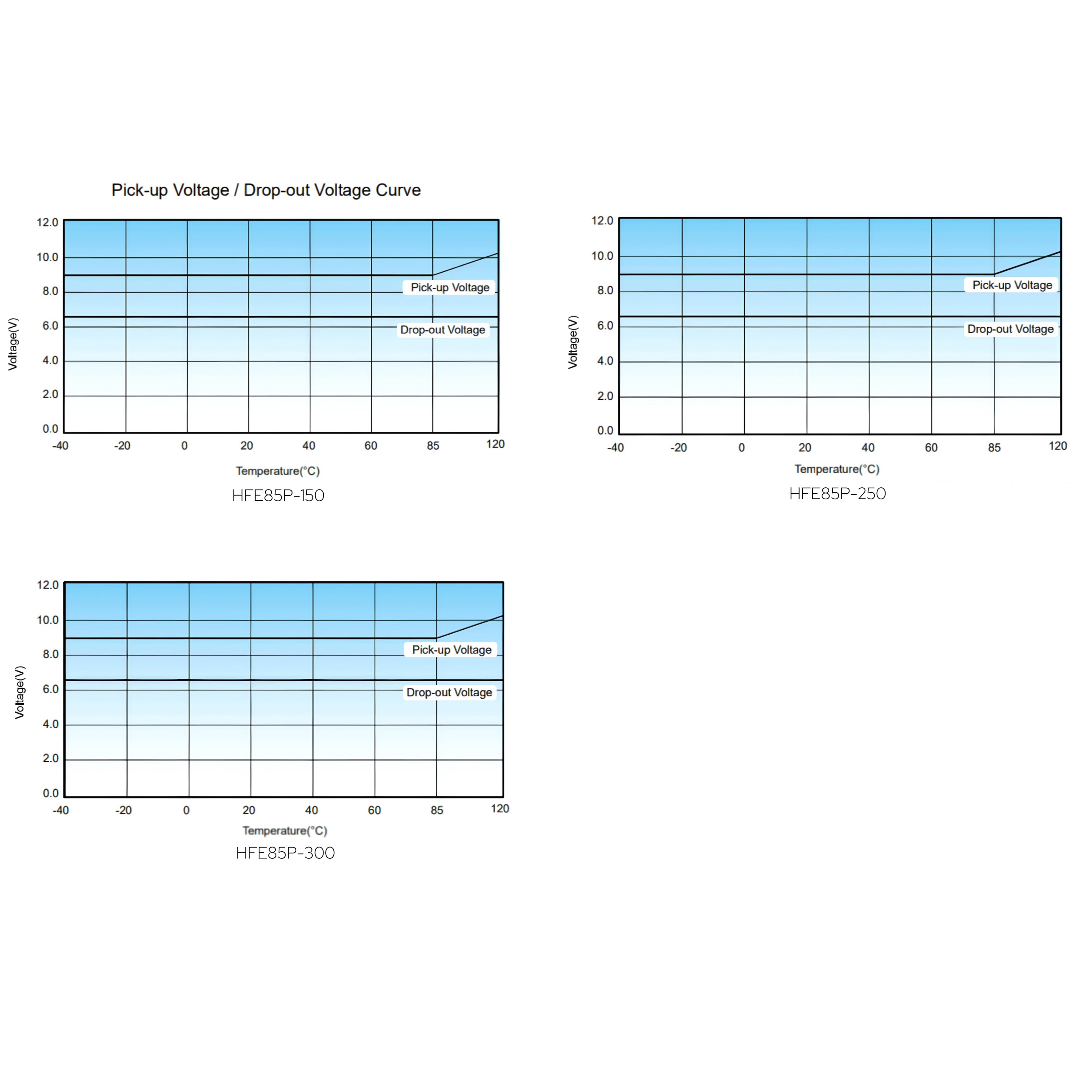

Pick-up voltage：≤75% Un

Max. switching power

300kW

400kW

450kW

Max. switching voltage

1000 VDC

Workplace Temperature

（-40℃～+85℃）

Shock
resistance

Functional

196m/s2

Destructive

490m/s2
