HFE82V-250 HONGFA High voltage DC Contactor 450V 750V 1000V 250A
HFE82V-250 HONGFA High voltage DC Contactor 450V 750V 1000V 250A
Product Detail Reference
Modle Paramenter name | HFE82V-250 | |
Rated current | 250A | |
Rated voltage | DC12～1000V | |
Insulation voltage | 1000MΩ DC1000V | |
Number of poles | Single pole | |
Type of circuit | DC | |
Mechanical life | 200,000times | |
Electrical endurance | Making | 25000 |
Breaking | / | |
Max. breaking current | 2000A(450 VDC) 1op | |
Operate time (at rated volt.) | ≤30ms | |
Release time (at rated volt.) | ≤10ms | |
Insulation resistance | ≥1000MΩ(1000 VDC） | |
Withstand voltage | Between | 4000 VAC 2min |
Between | 3000 VAC 2min | |
Rated control voltage Uc | Rated control voltage：DC12V/24V | |
Max. switching power | 225kW | |
Max. switching voltage | 750Kw | |
Workplace Temperature | （-40ºC ~ 85ºC） | |
Shock | Functional | 196m/s2 |
Destructive | 490m/s2 | |

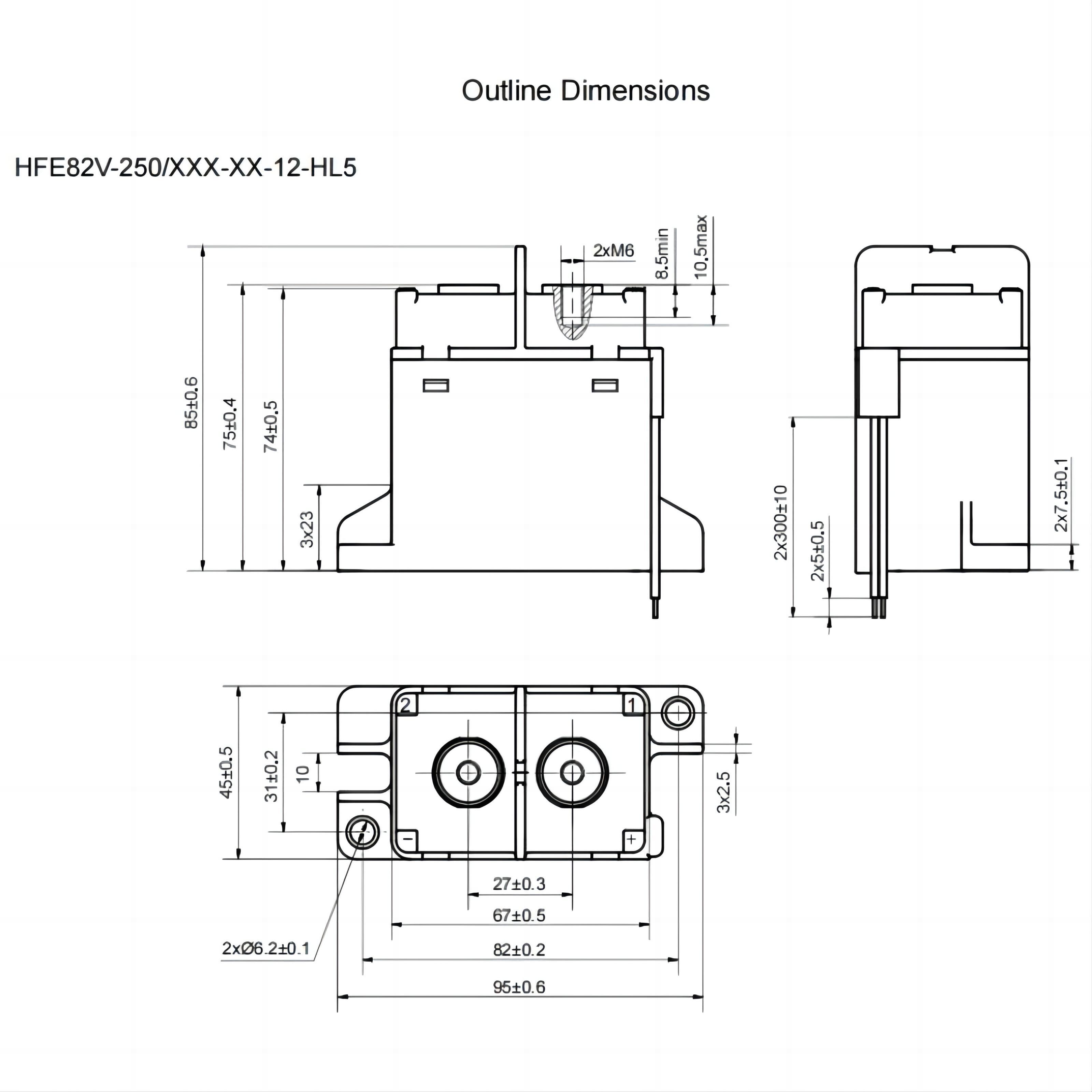

Product Dimension Drawing
- Warranty:
- 2 Years
- Application:
- Vehicle
- Brand Name:
- HONGFA
- Model Number:
- HFE82V-250
- Place of Origin:
- CHINA
- Certification:
- UL CUL VDE TUV CQC
- Material:
- Ceramic copper silver
- Dimensions:
- 78.0 x 39.8 x 46.1
- Resistance:
- 4.5mohm
- Contact rating:
- 250A
- Load voltage:
- 450V 750V 1000V
- Max breaking current:
- 2000A (450VDC)1op
- Max switching power:
- 225kW
- Coil Voltage:
- 12 24 48V
- Coil power:
- 2.6W
