HONGFA
HFE82V-1000 HONGFA High voltage DC Contactor 1000V 1200V 1000A 12V DC 24V DC
Product Detai Reference
|
Modle |
HFE82V-1000 |
|
||
|
Outline dimensions(mm) |
165.9x104.6x132.8mm |
|||
|
Contact arrangement |
1 Form A |
|||
|
Contact resistance |
≤0.2mΩ(at
1000A) |
|||
|
Pick-up voltage(VDC) |
12V ≤9 |
|||
|
24V ≤18 |
||||
|
Contact rating |
600A |
|||
|
Load voltage |
1000 VDC |
|||
|
Max. breaking current |
2000A(1000 VDC) 1op |
|||
|
Max. switching voltage |
1000 VDC |
|||
|
Max. switching power |
1500kW |
|||
|
Electrical endurance |
Making:20000ops(1000VDC 60A) |
|||
|
Ambient temperature |
（-40ºC ~ 85ºC） |
|||
|
Dielectric |
Between |
5000 VAC 1min |
||
|
Between |
5000 VAC 1min |
|||

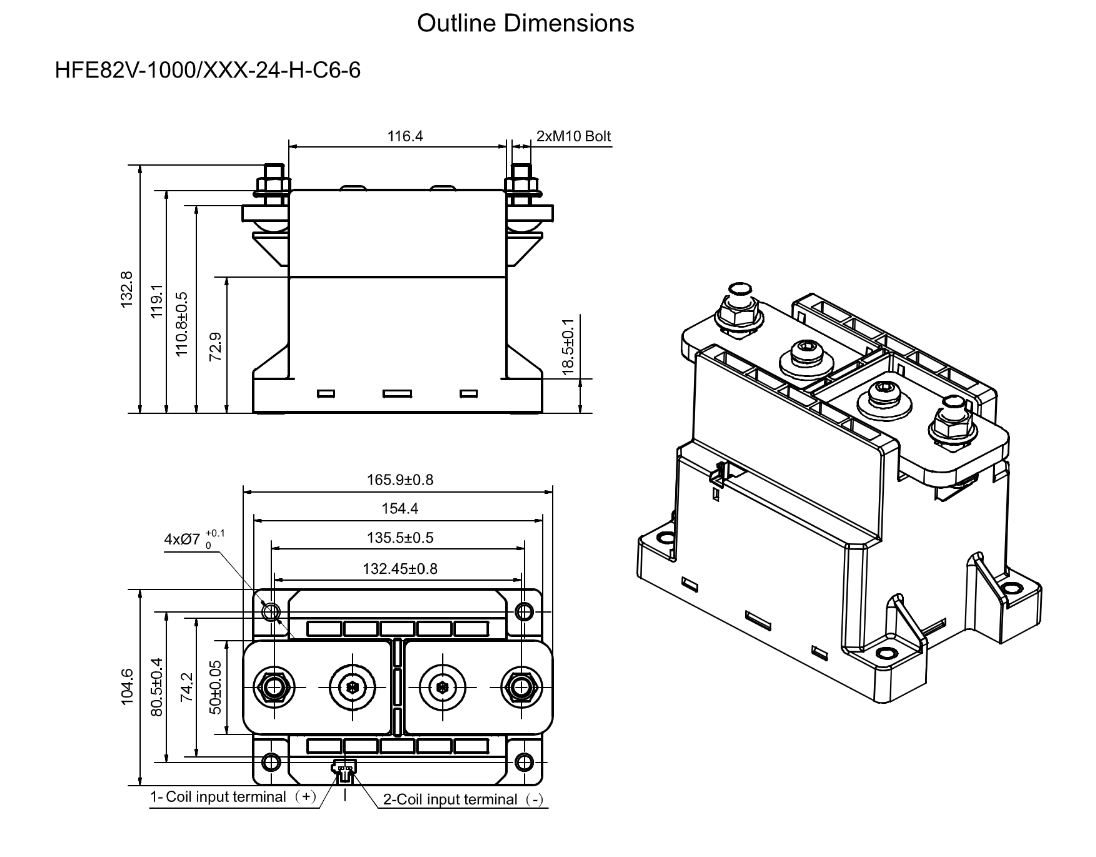

Product Dimension Drawing
- Warranty:
- 3 Years
- Application:
- Vehicle
- Brand Name:
- HONGFA
- Model Number:
- HFE82V-1000
- Place of Origin:
- China
- Certification:
- UL CUL VDE TUV CQC
- Material:
- Ceramic copper silver
- Dimensions:
- 18X12X15 cm
- Resistance:
- 0.2mohm
- Contact rating:
- 1000A
- Load voltage:
- 450V 750V
- Max breaking current:
- 2000A
- Max switching power:
- 1500kw
- Coil Voltage:
- 12 24 V
- Coil power:
- 50W
