HONGFA
HFE82P-250C HONGFA High voltage DC Contactor 750V 250A
Product Detai Referenc
|
Modle |
HFE82P-250 |
|
||
|
Rated current |
250A |
|||
|
Rated voltage |
DC12～1000V |
|||
|
Insulation voltage |
1000MΩ
DC1000V |
|||
|
Number of poles |
Single pole |
|||
|
Type of circuit |
DC |
|||
|
Mechanical life |
200,000times |
|||
|
Electrical endurance |
Switching |
6000ops |
||
|
6000ops |
||||
|
Max. breaking current |
1500A(750VDC)1op |
|||
|
Operate time (at rated volt.) |
≤30ms |
|||
|
Release time (at rated volt.) |
≤10ms |
|||
|
Insulation resistance |
≥1000MΩ(1000
VDC） |
|||
|
Withstand voltage |
Between |
2600VAC 1min |
||
|
Between |
2600VAC 1min |
|||
|
Rated control voltage Uc |
Rated control voltage：DC12V/24V |
|||
|
Max. switching power |
250Kw |
|||
|
Max. switching voltage |
1000VDC |
|||
|
Workplace Temperature |
（-40ºC ~ 85ºC） |
|||
|
Shock |
Functional |
196m/s2 |
||
|
Destructive |
490m/s2 |
|||

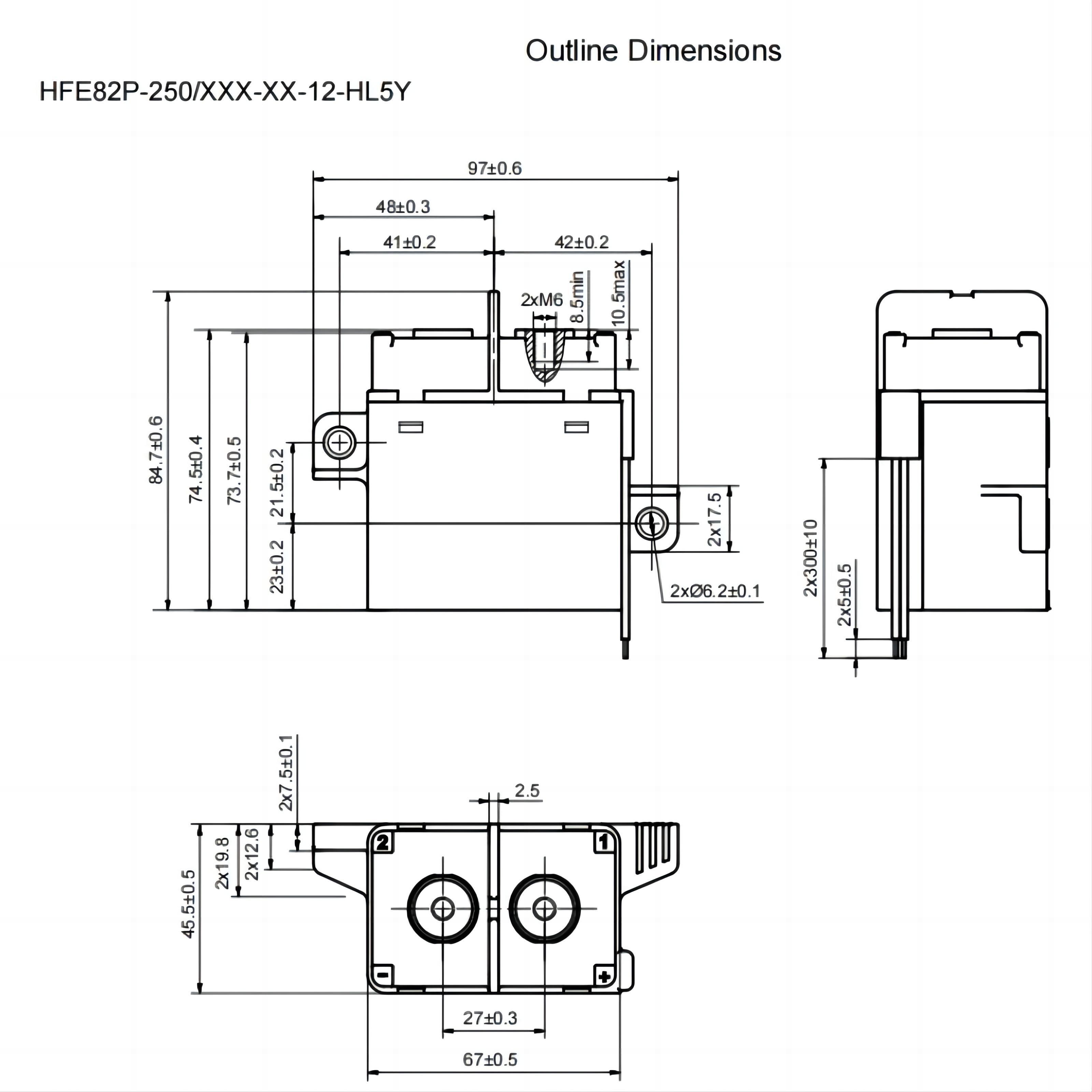

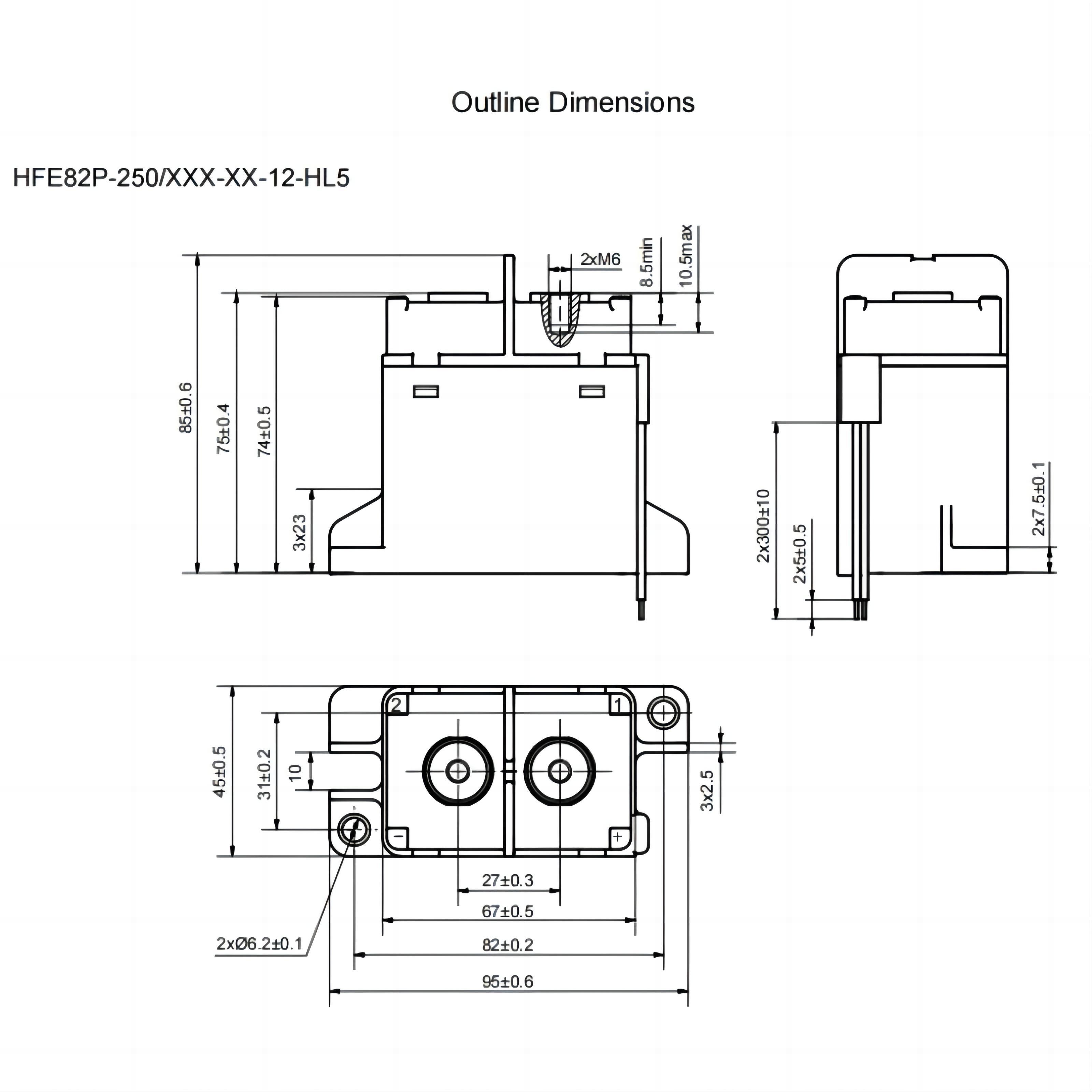

Product Dimension Drawing
Endurance Capacity Curve
Pick-up Voltage/Drop-out Voltage Curve
- Warranty:
- 2 Years
- Application:
- PV and energy storage
- Brand Name:
- HONGFA
- Model Number:
- HFE82P-250C
- Place of Origin:
- CHINA
- Certification:
- UL CUL VDE TUV CQC
- Material:
- Ceramic copper silver
- Dimensions:
- 64.0x33.0x52.8
- Resistance:
- 1mohm
- Contact rating:
- 250A
- Load voltage:
- 750V
- Max breaking current:
- 1500A(750VDC)1op
- Max switching power:
- 250kw
- Coil Voltage:
- 12 24 V
- Coil power:
- 5.2W
