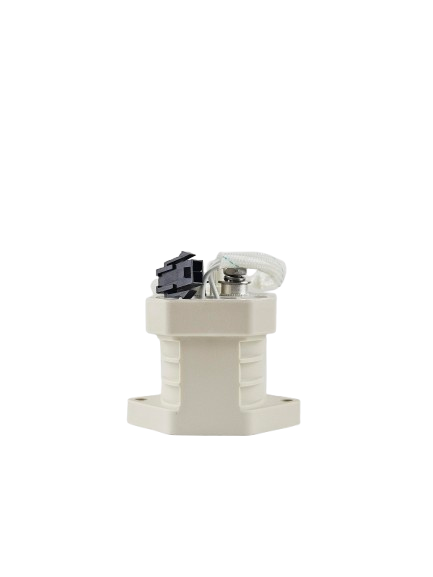

DC contactor single pole 50A ALQ electrical accessory for automatic car
Product Detai Reference
|
|
EVQ50 |
|
||
|
Rated current |
50A |
|||
|
Rated voltage |
DC450V、DC750V |
|||
|
Insulation voltage |
≥100MΩ
DC1000V |
|||
|
Number of poles |
Single pole |
|||
|
Type of circuit |
DC |
|||
|
Mechanical life |
200,000 times |
|||
|
Electrical life(Switching Rating ,ON : OFF=1s:9s) |
DV750V |
5A,1200times |
||
|
DV1000V |
20A,400times |
|||
|
Maximum breaking current |
300A 320Vdc |
|||
|
Shot-circuit withstand current |
150A 10sec |
|||
|
Insulation resistance |
100MΩ
DC1000V |
|||
|
Withstand voltage |
AC 3500 Vrms/10mA 60s |
|||
|
Rated control voltage Uc |
Rated control voltage：DC12V/DC24V |
|||
|
Contact Arrangement |
（SPST-NO-DM） |
|||
|
Media type when cutting-of |
Inactive gas |
|||
|
Auxiliary contact type |
Without |
|||
|
Workplace Temperature |
（-40℃～+85℃） |
|||
|
Dielectric Strength |
Between open contact |
AC 3500 Vrms/10mA/1min |
||
|
|
||||

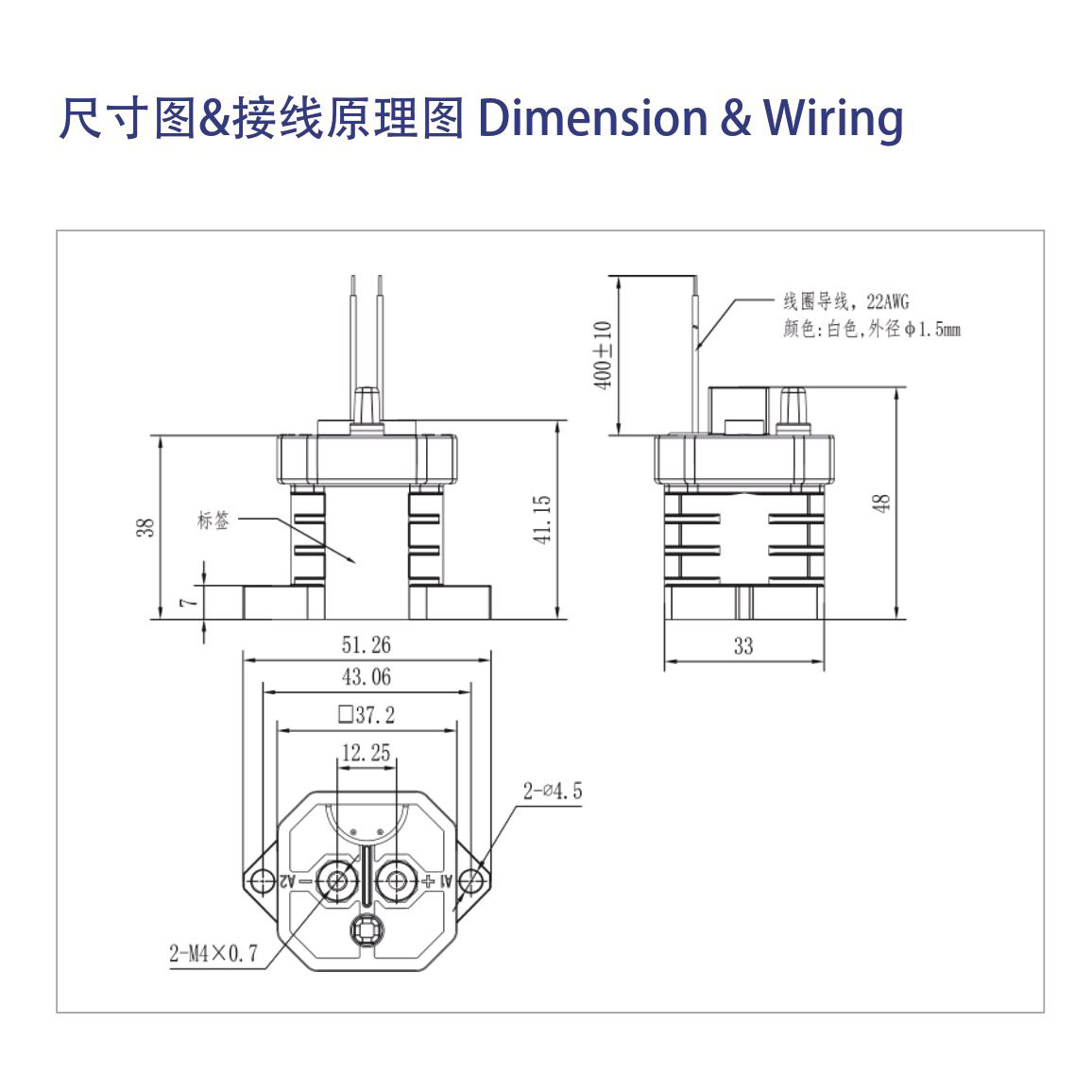

Product Dimension Drawing

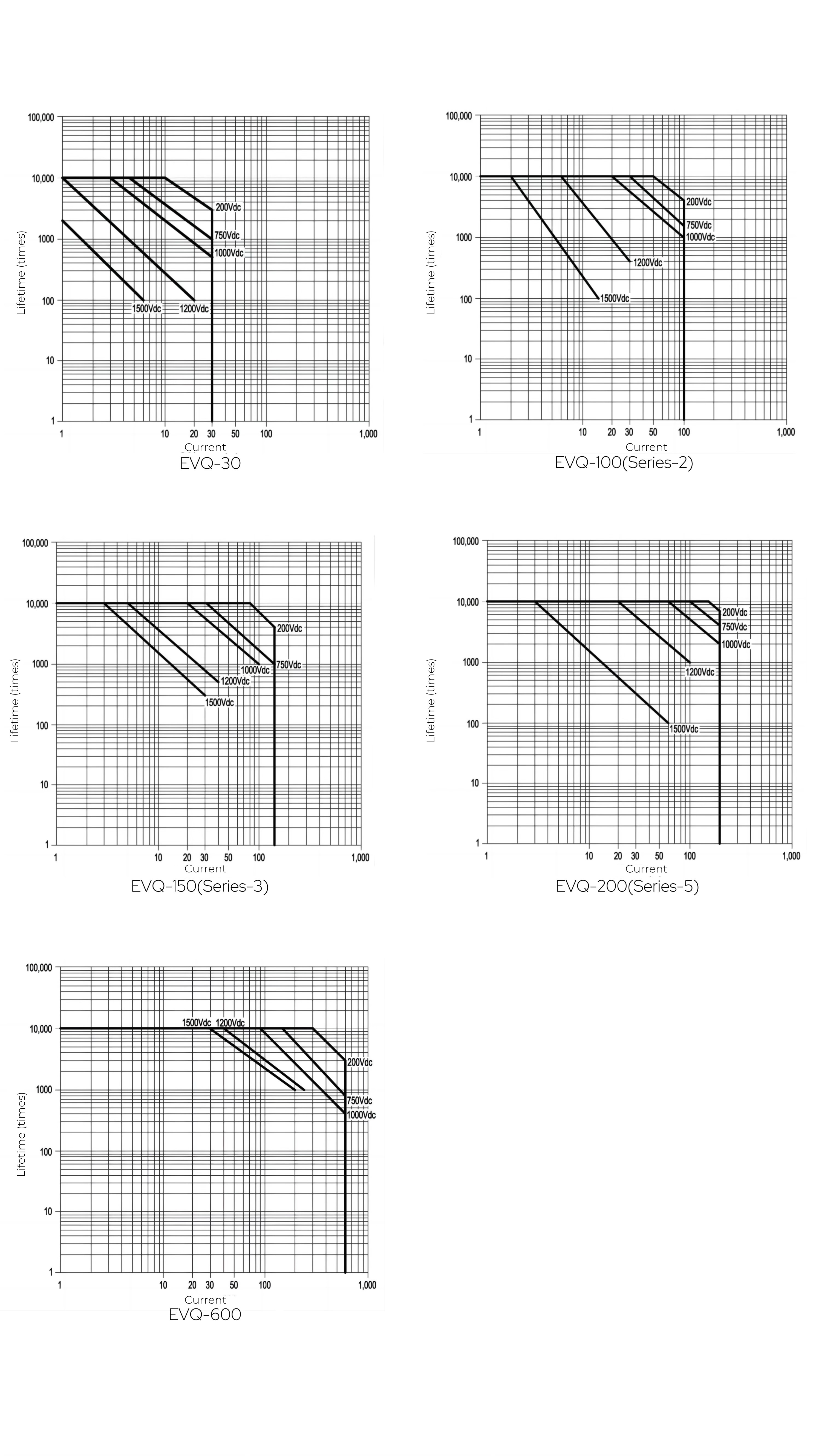

- Electrical Life Line Chart

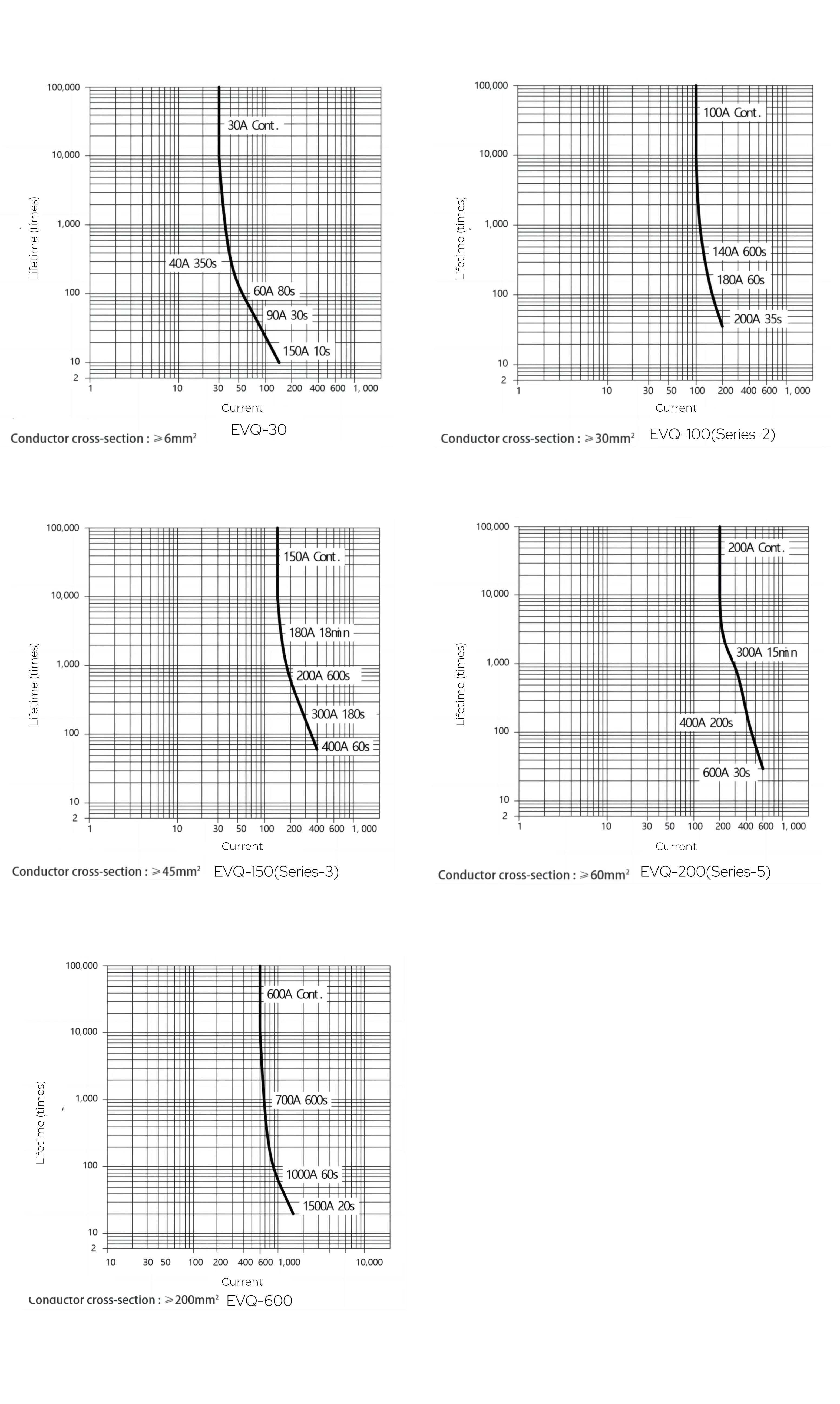

- Current Time Line Chart
- Warranty:
- 2 Years
- Application:
- Energy storage
- Brand Name:
- ALQ
- Model Number:
- EVQ50
- Place of Origin:
- Jiangsu, China
- Certification:
- CCC CE
- Material:
- Ceramic brazed seal
- Rated load voltage Ue :
- 12-1500Vdc
- Rated load current Ie:
- 50A
- Rated voltage of coil Us:
- 12Vdc or 24Vdc
- Weight approximately:
- 550g
- Contact resistance initial:
- Typical value0.2Milliohm
- Electrical life:
- DC450V, 10000 second DC750V, 1000 second
- Coil power:
- Starting current 3.75A Holding power5W
- Mechanical life:
- 2*105 second2*105 second
- Load end connection mode:
- M6 Internal thread
- Use and storage environment:
- -40+85℃ 5~95% RH
