LAZZEN
DC Contactor NDZ3T-300P Nader Single Phase High Voltage Contactors One Phase Electrical Relay
stars, based on 0reviews
Quantity
Price
4+
$20.99
10+
$19.94
100+
$18.89
1000+
$18.05
Product Description
Product Name | NDZ3T-300P |
Main Contact Form | 1NO |
Operating Voltage Range | DC12 - 1000V |
Rated Operating Current | 300A |
Contact Resistance | ≤0.2mΩ (at 300A) |
Short - time Withstand Current | 3000A for 600ms, 300A continuous |
Mechanical Life | 200,000 cycles, 3600 cycles per hour |
Control Coil (20°C)Rated Voltage Uc | DC12V, DC24V, DC48V |
Auxiliary Contacts | Without |
Type | / |
Coil Polarity | Polariz |
Maximum Interrupting Current | DC600V 2500A once |
Insulation Resistance | 1000MΩ DC1000V |
Power - frequency Withstand Voltage | AC3000V for 60s, leakage current ≤1mA |
Electrical Life | DC750V 300A 1000 cycles DC500V 300A 3000 cycles DC500V - 300A 1000 cycles |
Impact Stability | Closing: 20g, Opening: 10g |
Impact Strength | 50g |
Vibration | 5g 10 - 500Hz |
Operating Humidity | 5% - 95% |
Weight | Approximately 800g with terminal block, approximately 710g without |
Certifications | CCC, CB, CE, TUV |

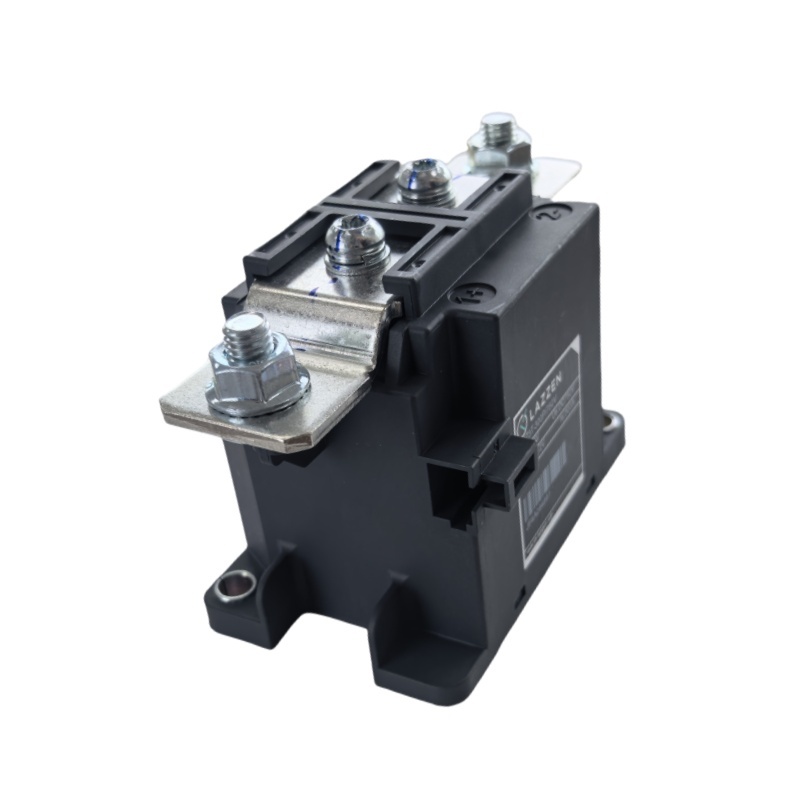

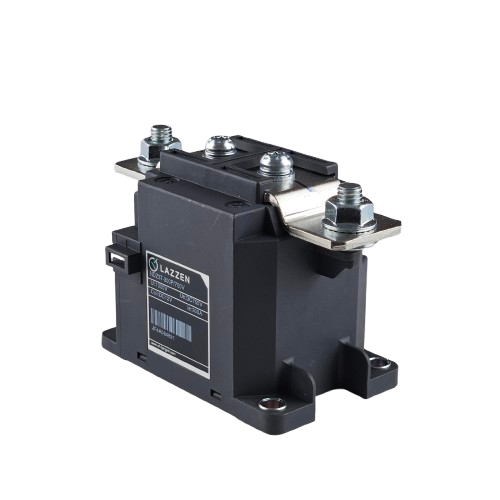

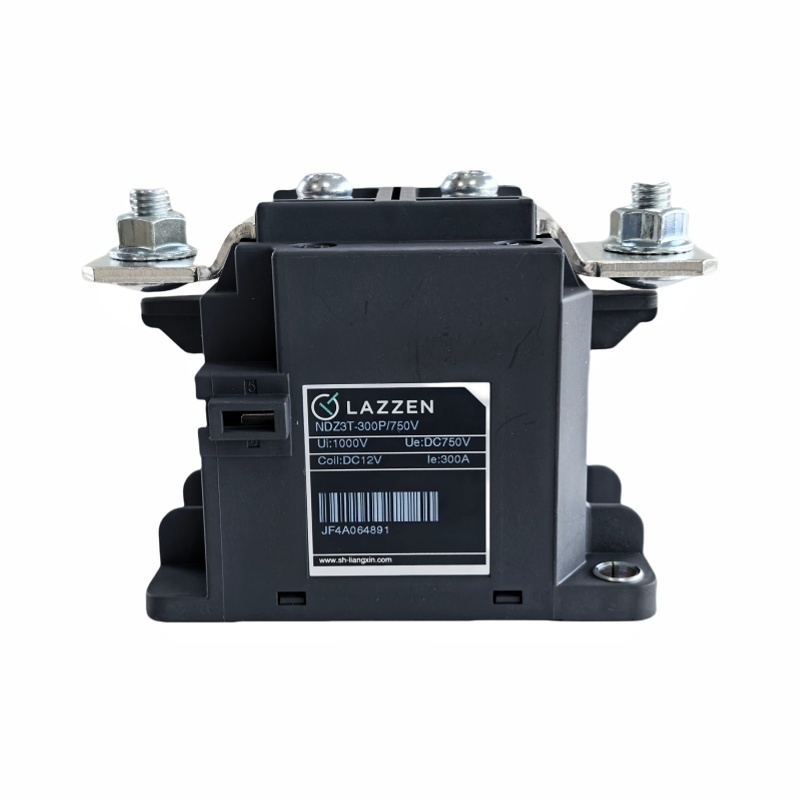

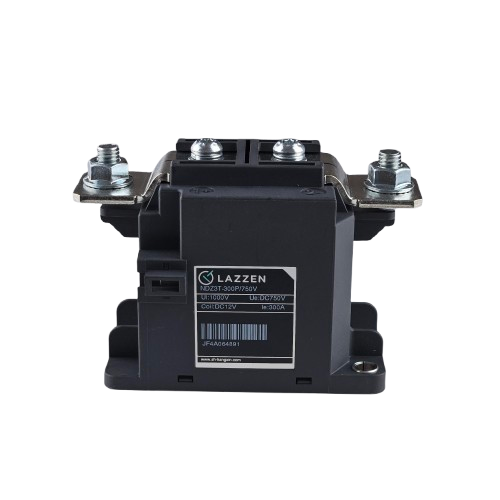

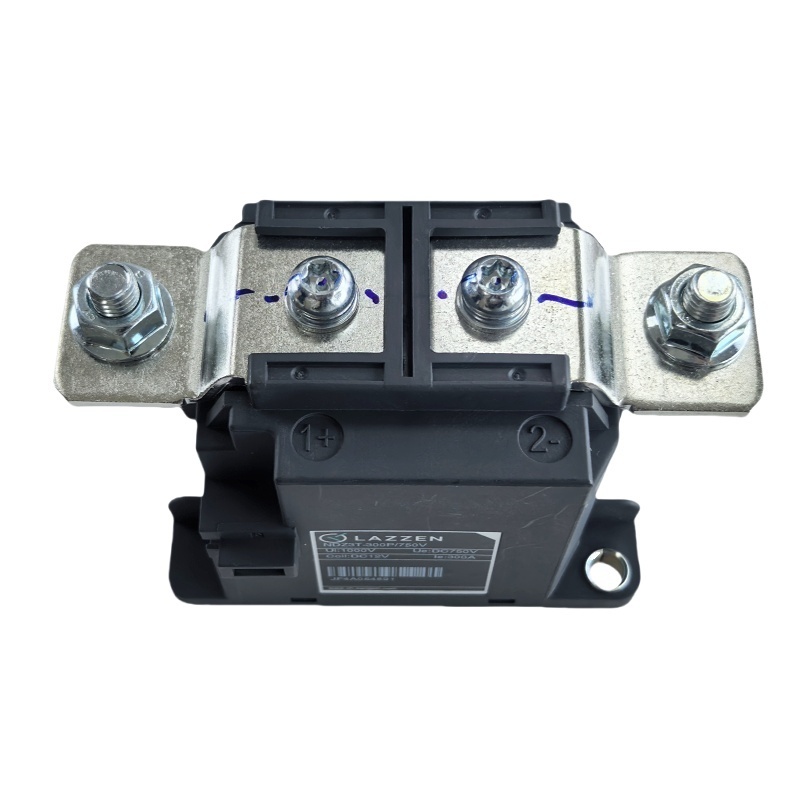

Product Images
Product Selection Table

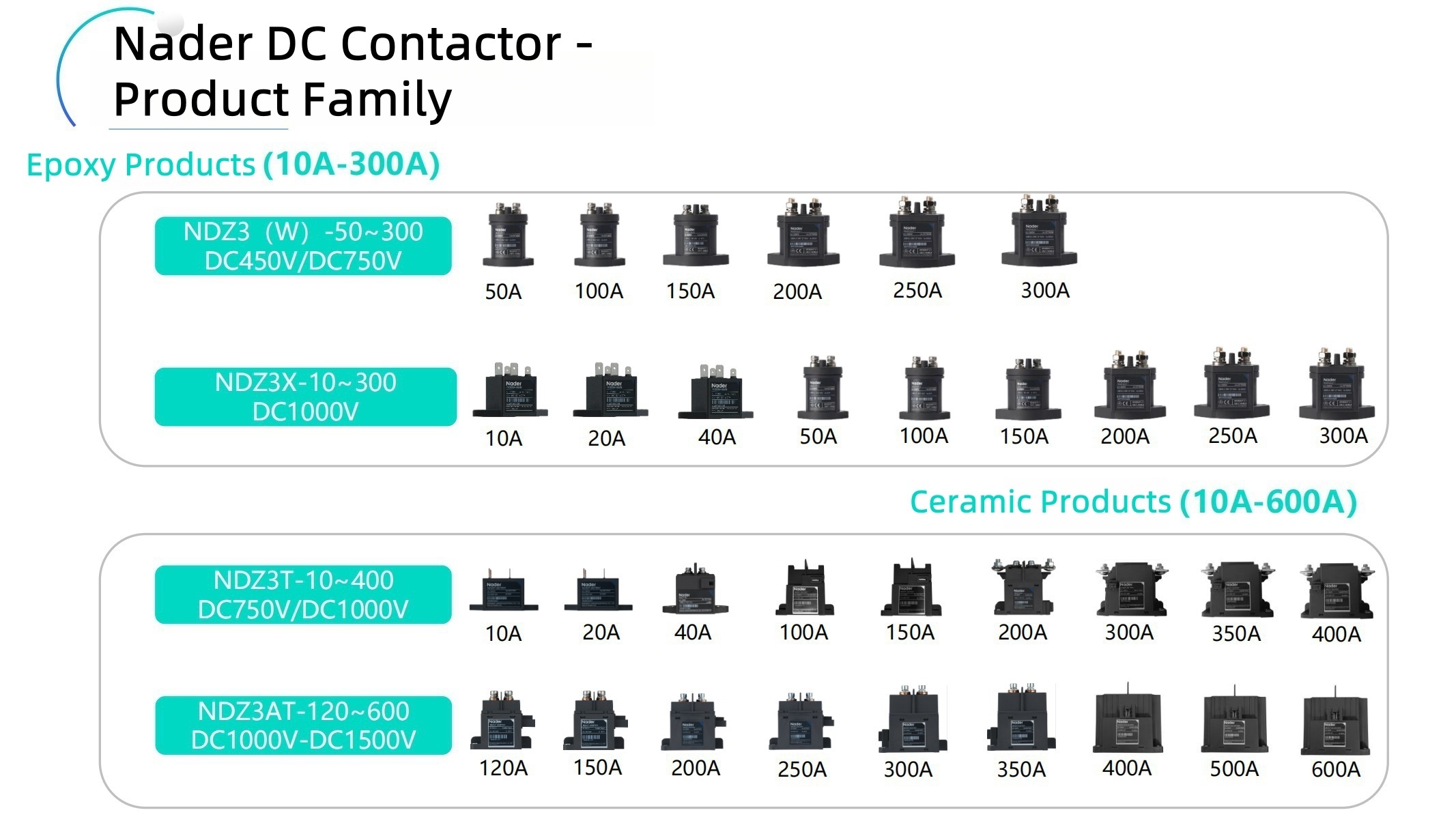

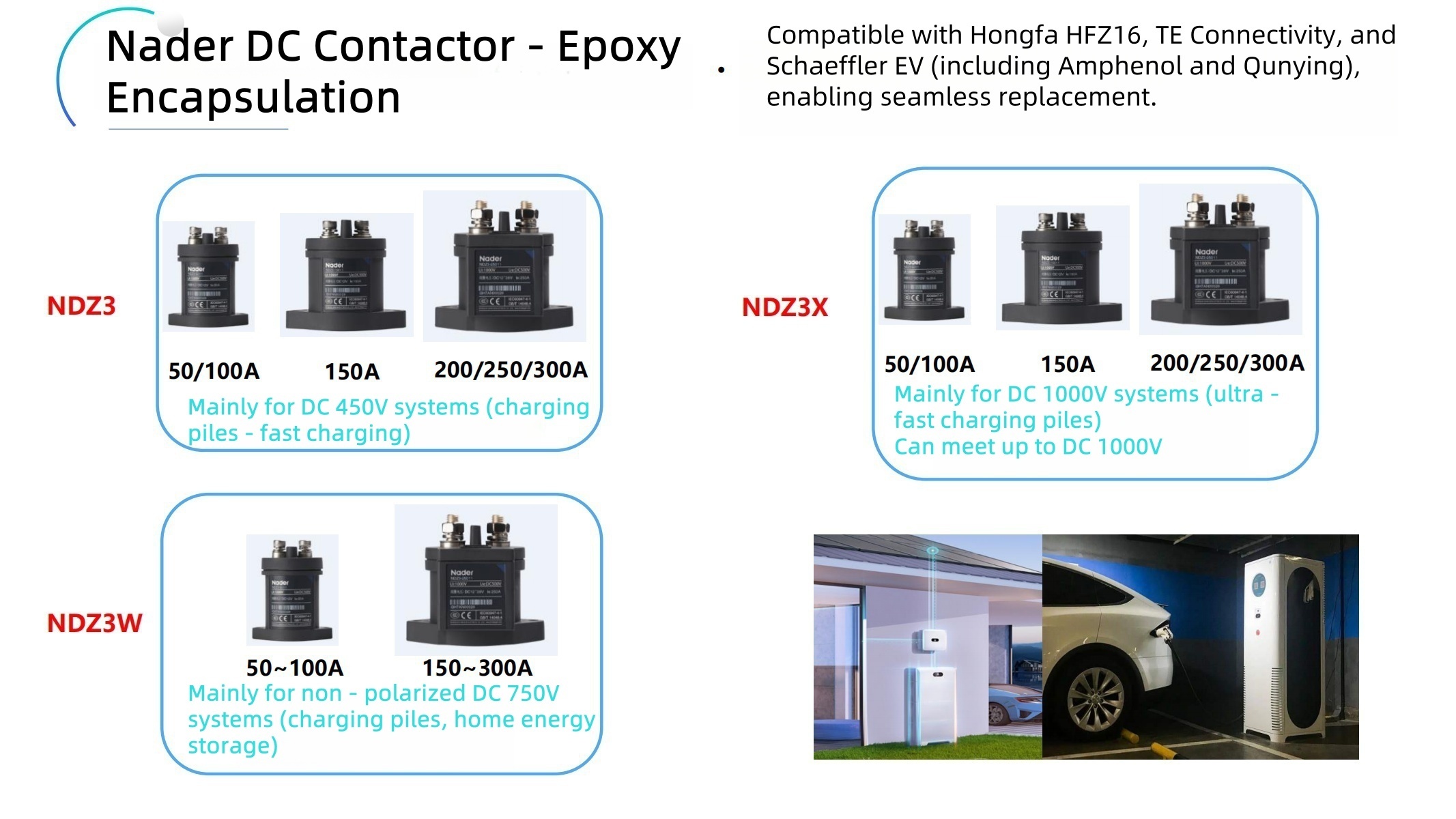

Product Family

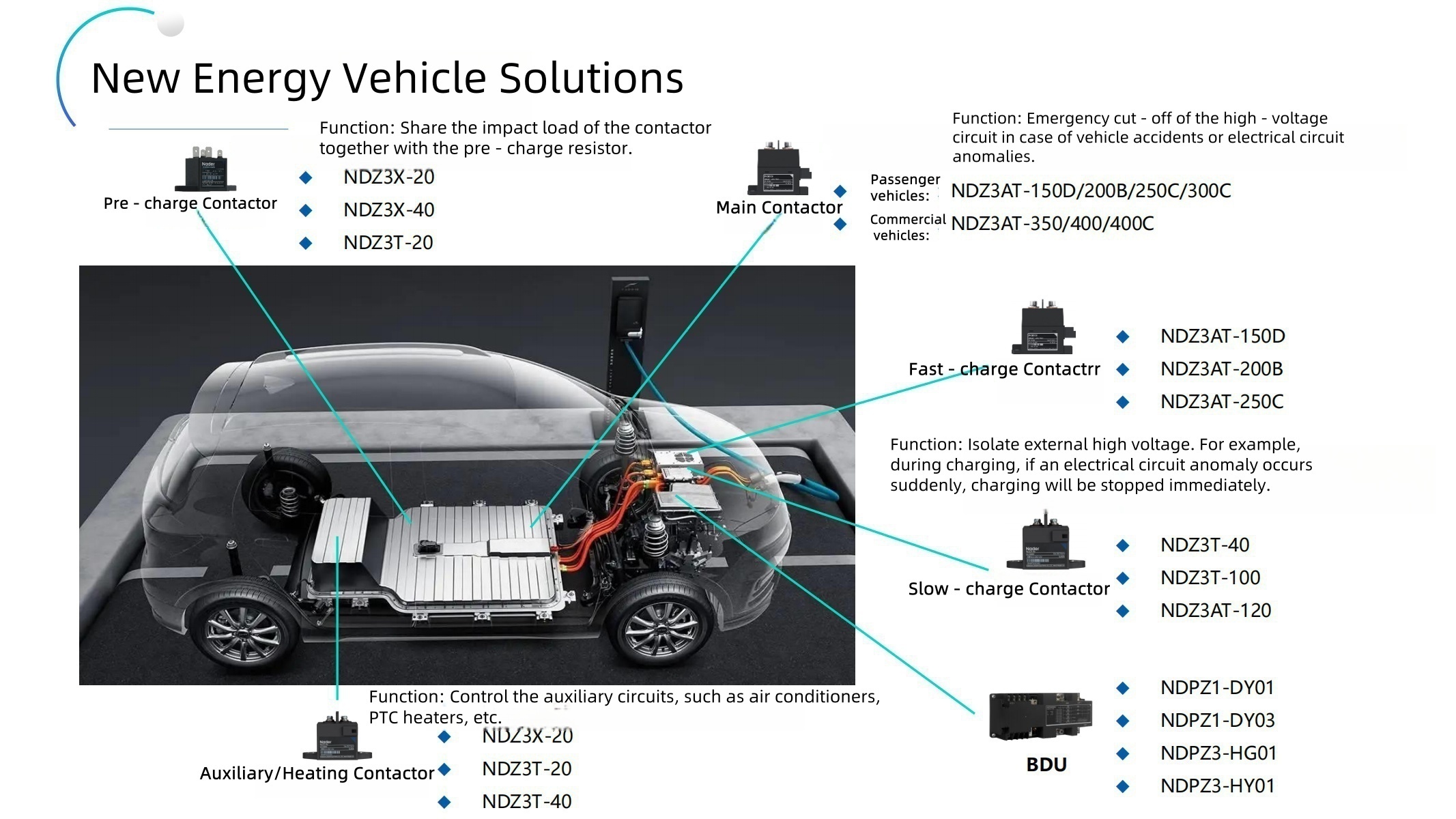

Product Applications
Certificate

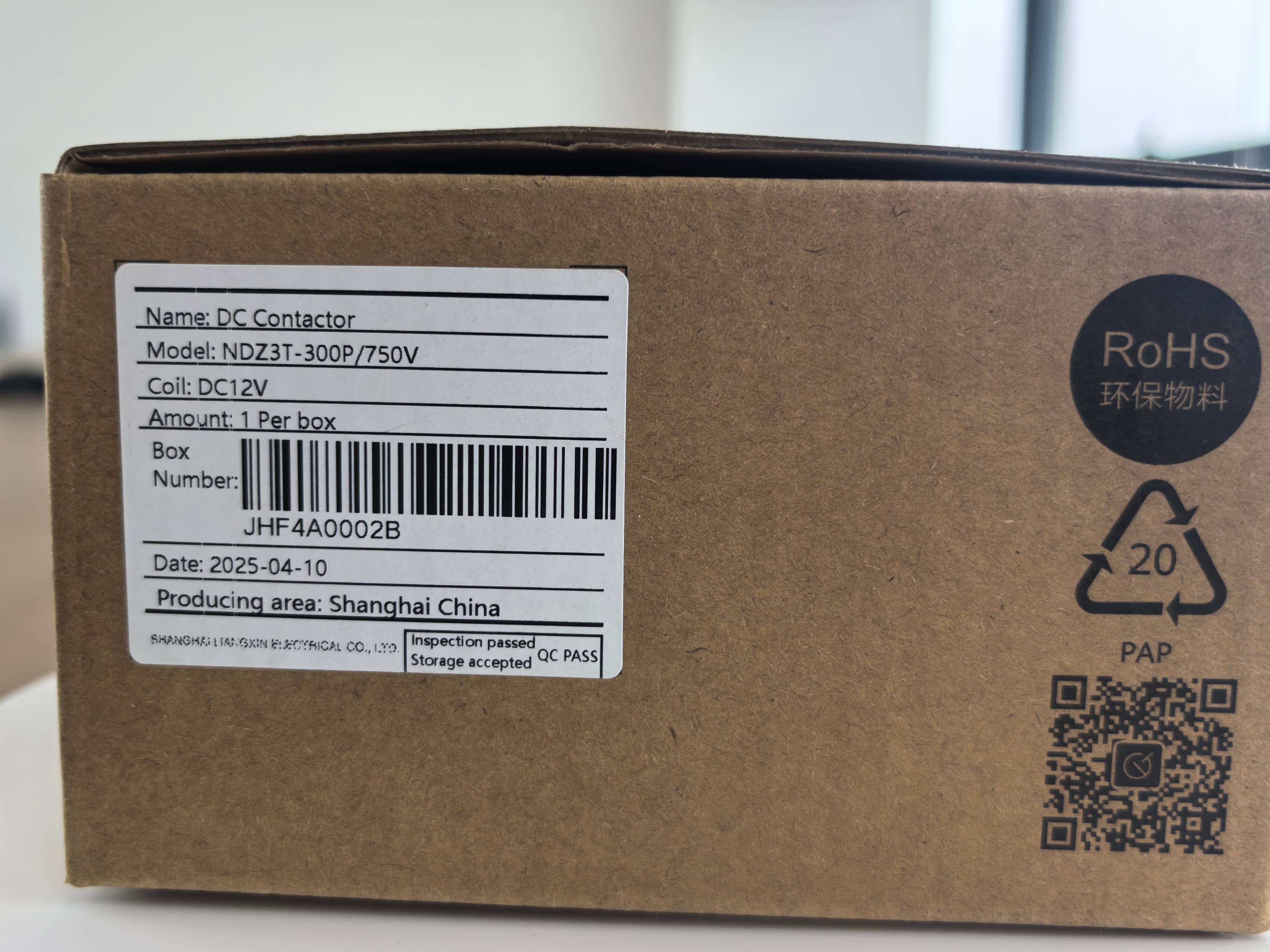

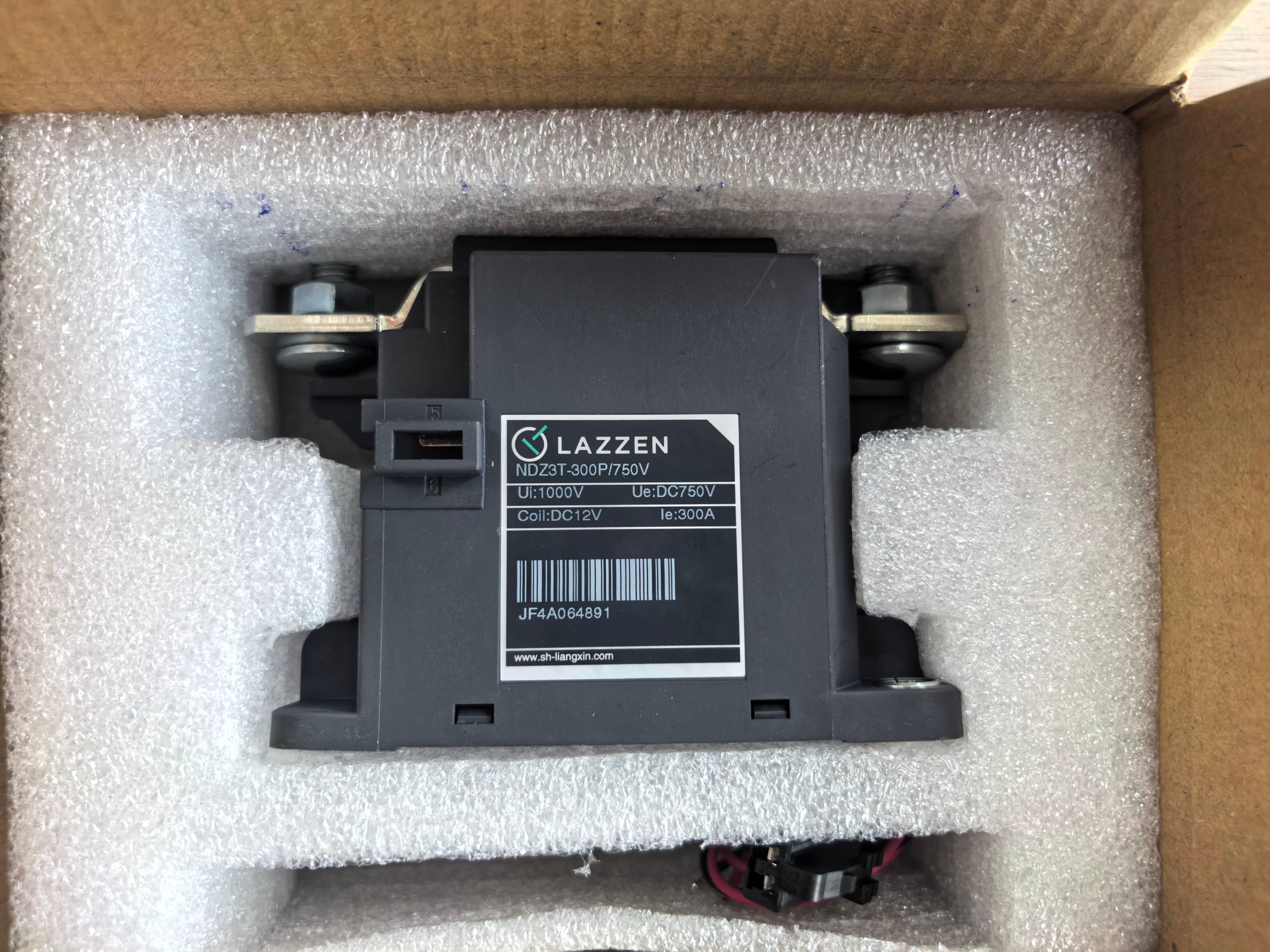

Packing&Shipping
Related Products

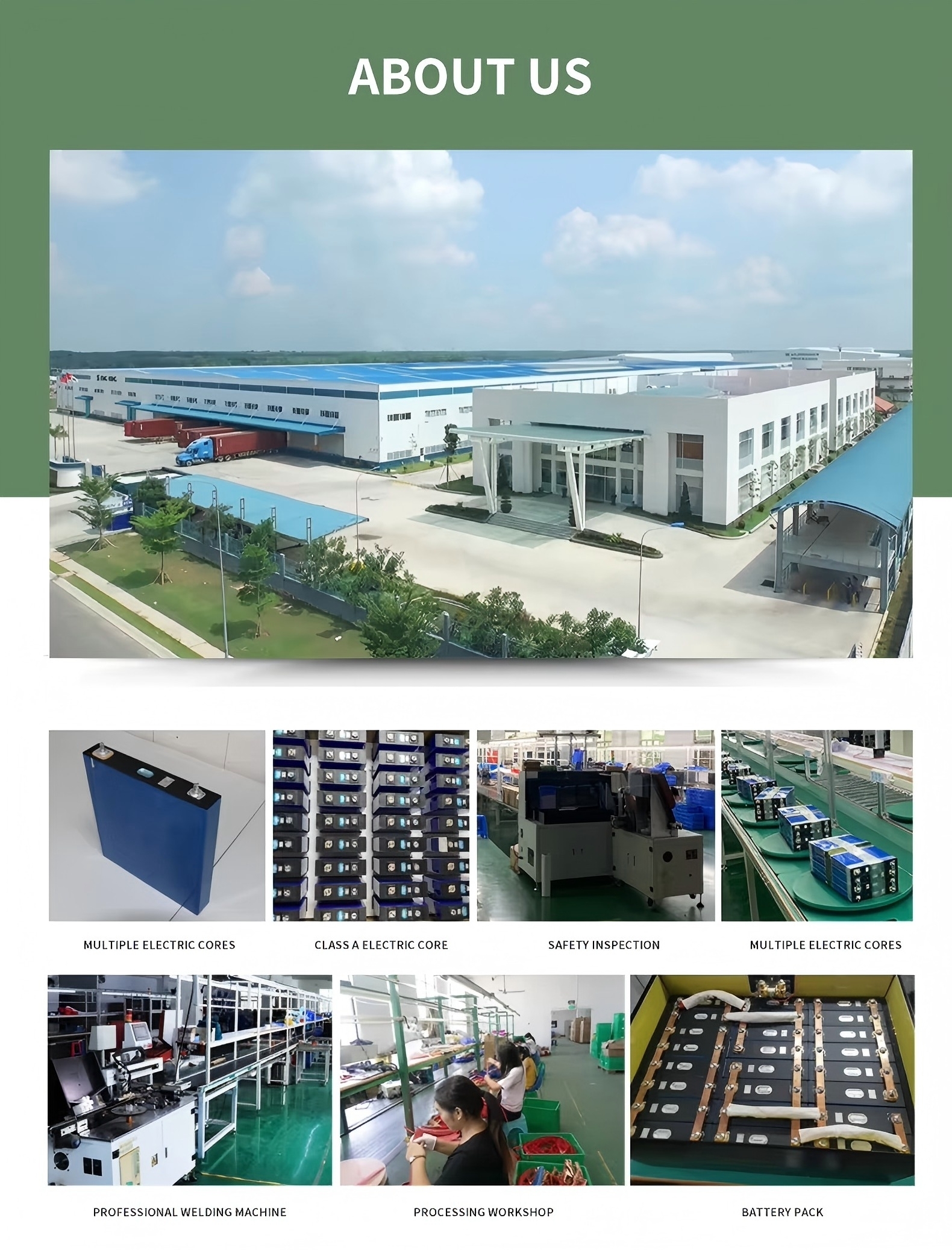

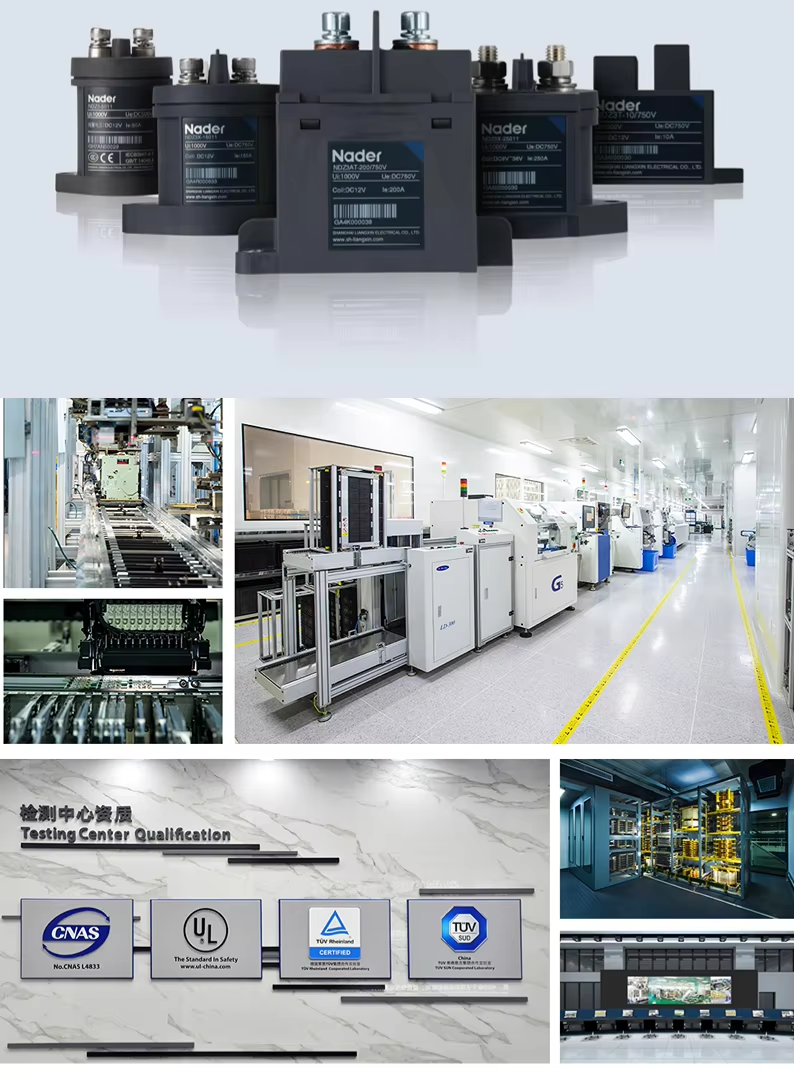

Company Introduction
Beian New Energy Co., Ltd. is a high-tech new energy enterprise based in Suzhou, China.We focus on customized solutions and products of lithium-ion batteries.
Our products are applied in fields such as solar energy storage systems, electric vehicles, electric forklifts, marine, golf carts, and AGV etc.
Beian New Energy also provides high voltage DC contactors,connectors, and manual service disconnects (MSD) for electric vehicles and energy storage systems (ESS).
Beian New Energy a total lithium-ion battery solution provider, offering a quality guarantee ranging from 1 to 10 years, Welcome your consultation.
FAQ
Q1:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. For urgent case, please call us or tell us in your email so that
we'll regard your inquiry priority.
Q2.Do you have MOQ for Your Batteries?
A: We want to support our customer without MOQ request.
Q3. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q4. What about the lead time?
A. Sample needs 7 days, mass production time needs 3-5 weeks, it depends on order quantity.
Q5.Is it OK to print my logo on the product?
A: Yes. We welcome OEM orders.
Q6:How long does the warranty?
A: In general, the time is 1 year.
Q7: What is your terms of payment?
A: We accept T/T and L/C
Q8.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q9.How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. For mass order, you can choose Sea or Air shipment.
Q10:Can we visit your factory?
A: Warmly welcome. Our factory located in shenzhen, near Guangzhou.
A: We usually quote within 24 hours after we get your inquiry. For urgent case, please call us or tell us in your email so that
we'll regard your inquiry priority.
Q2.Do you have MOQ for Your Batteries?
A: We want to support our customer without MOQ request.
Q3. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q4. What about the lead time?
A. Sample needs 7 days, mass production time needs 3-5 weeks, it depends on order quantity.
Q5.Is it OK to print my logo on the product?
A: Yes. We welcome OEM orders.
Q6:How long does the warranty?
A: In general, the time is 1 year.
Q7: What is your terms of payment?
A: We accept T/T and L/C
Q8.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q9.How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. For mass order, you can choose Sea or Air shipment.
Q10:Can we visit your factory?
A: Warmly welcome. Our factory located in shenzhen, near Guangzhou.
- Breaking Capacity:
- DC600V 2500A once
- Number of Pole:
- 1
- Phase:
- Single
- Model Number:
- NDZ3T-300P
- Brand Name:
- LAZZEN
- Place of Origin:
- Jiangsu, China
- Package type:
- Epoxy package
- Load polarity:
- heteropolarity
- Operating voltage range:
- DC12-1000V
- Contact Resistance:
- ≤0.2mΩ (at 300A)
- Control coil:
- DC12V, DC24V, DC48V
- Mechanical life:
- 200,000 cycles, 3600 cycles per hour
- Auxiliary contact:
- without
- Electrical life:
- DC750V 300A 1000 cycles
- Weight:
- 710g
- Certification:
- CCC CB CE TUV UL
