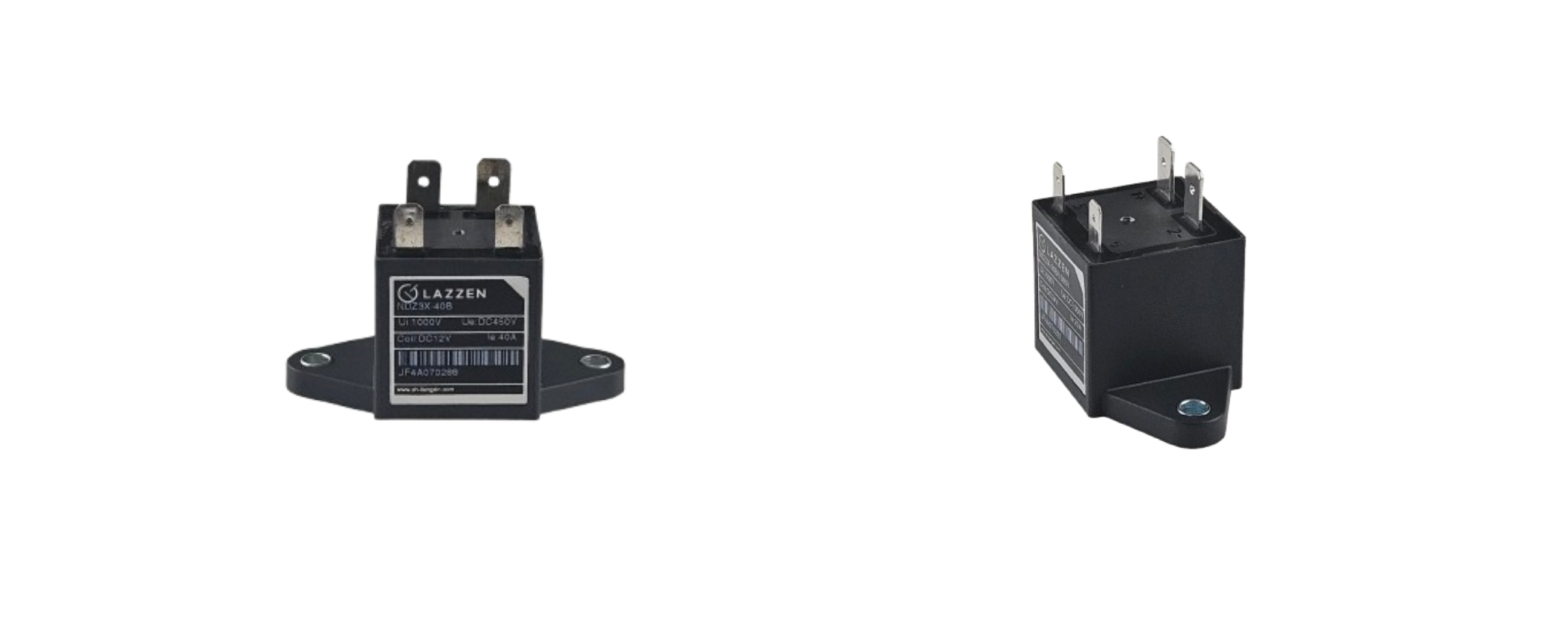

DC Contactor 40A/1000VDC Coil 24V High Voltage Lazzen NDZ3X-40B
DC Contactor 40A/1000VDC Coil 24V High Voltage Lazzen NDZ3X-40B
Product Parameters
Product Name | NDZ3X-40B |
Coil rated voltage | DC48V |
Rated current | 40A |
Auxiliary contacts | NO |
Number of poles | 3P |
Main contacts | 3D6J |
Number of main contacts | 3 |
Number of auxiliary contacts | 2A2B |
Coil frequency (Hz) | 50 |
insulation voltage | 440 |
Protection type | Overload |
Connection method | Frame column |
Mounting dimensions (mm) | 5*25 |
Mounting method | Fasten |
Wight | 300g |
Electrical life (cycles) | 10000 |
Mechanical life (cycles) | 20000 |
3C rated voltage range (V) | 50-440 |

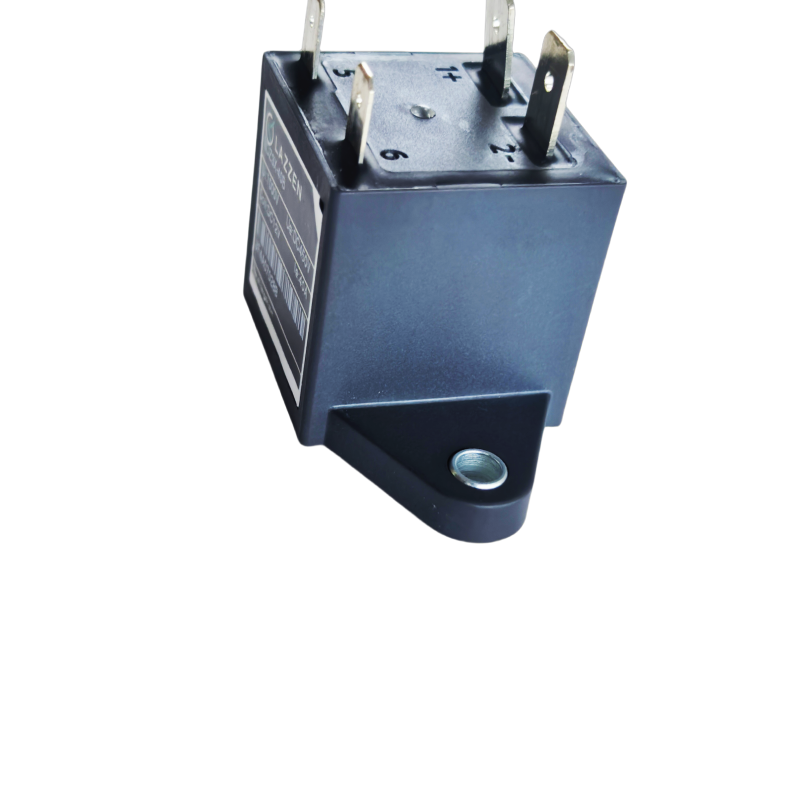

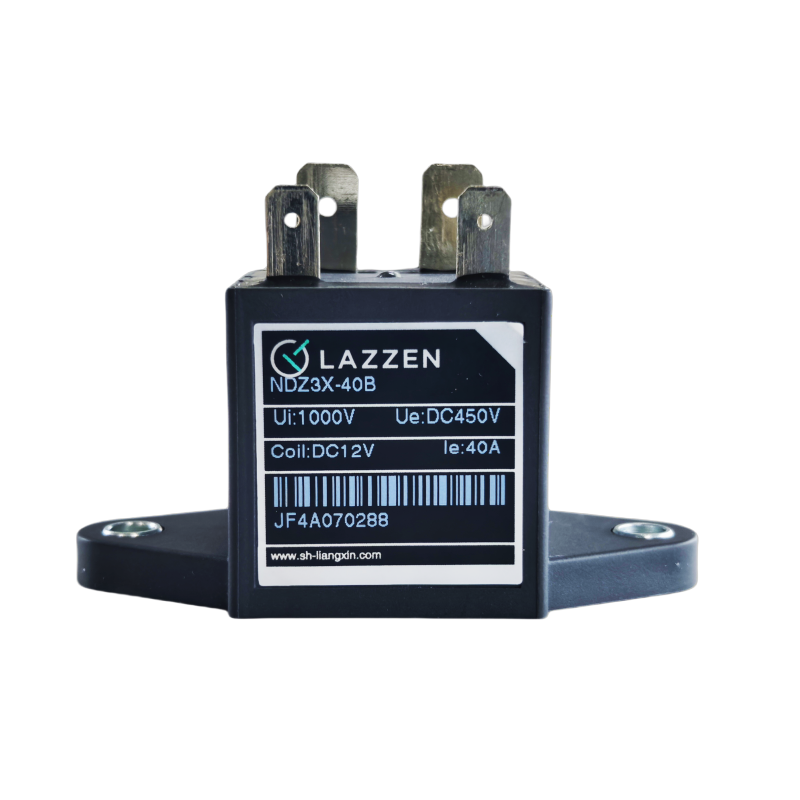

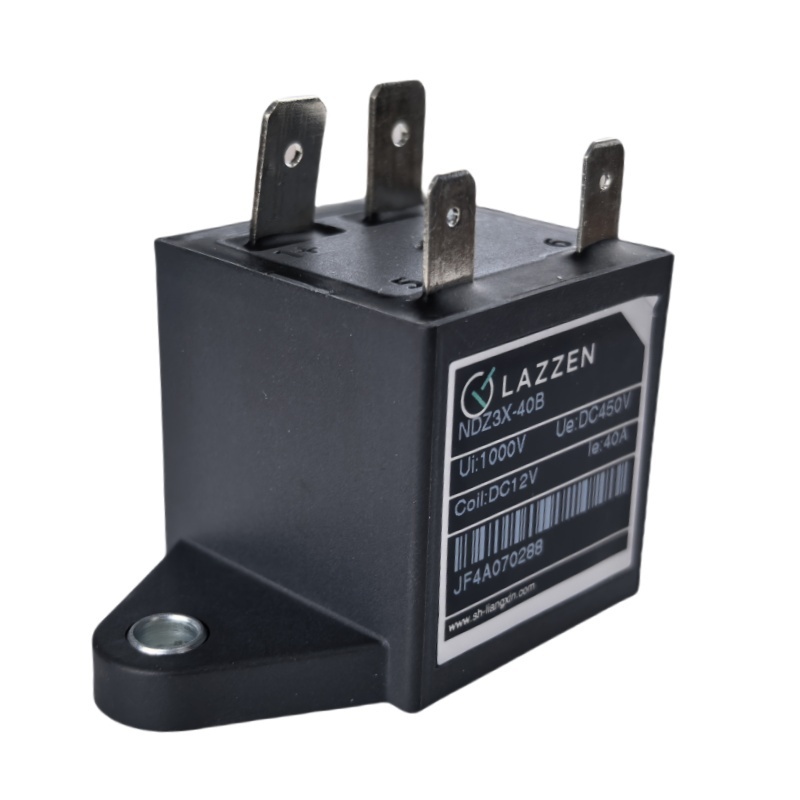

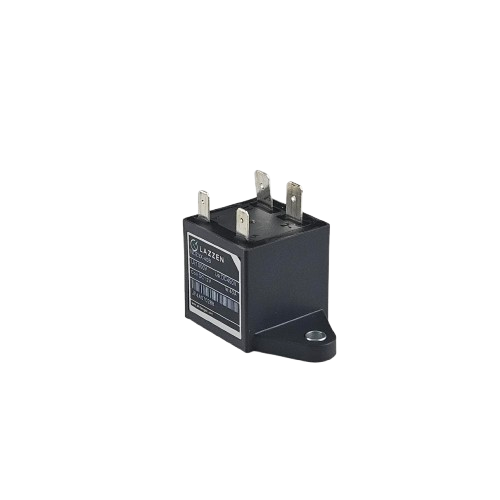

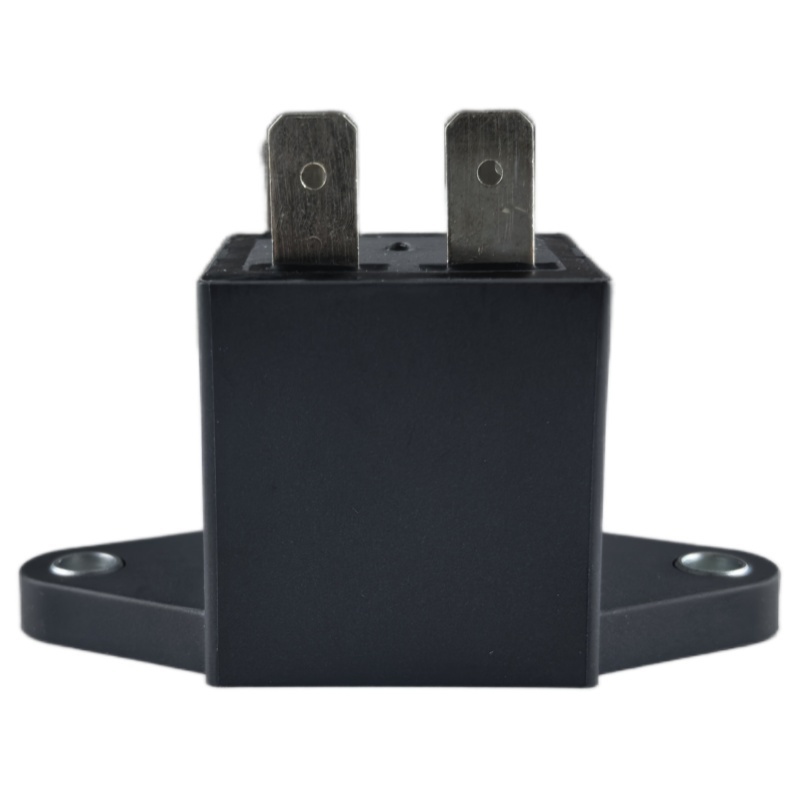

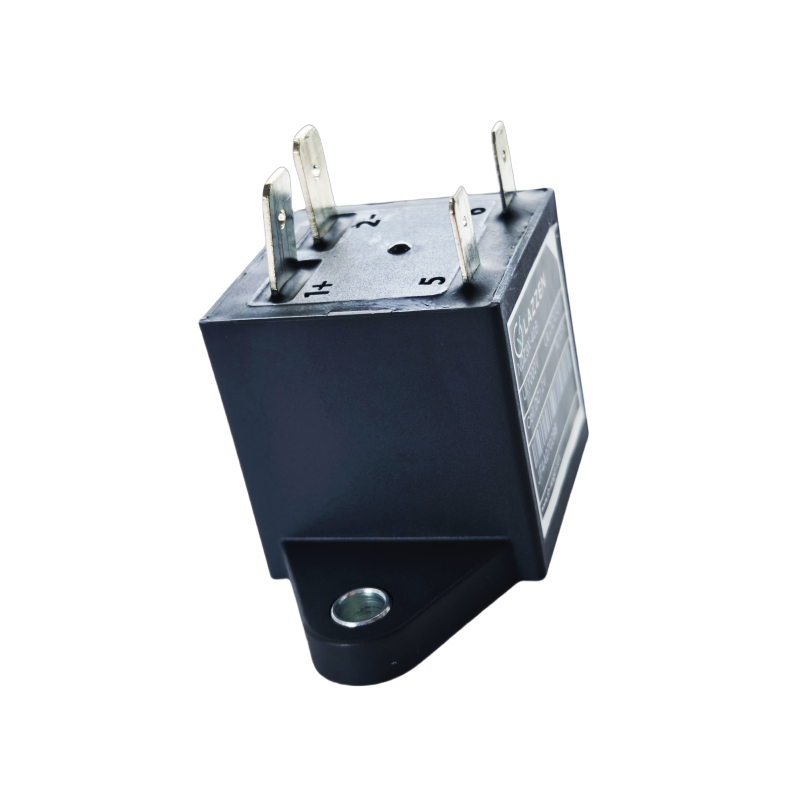

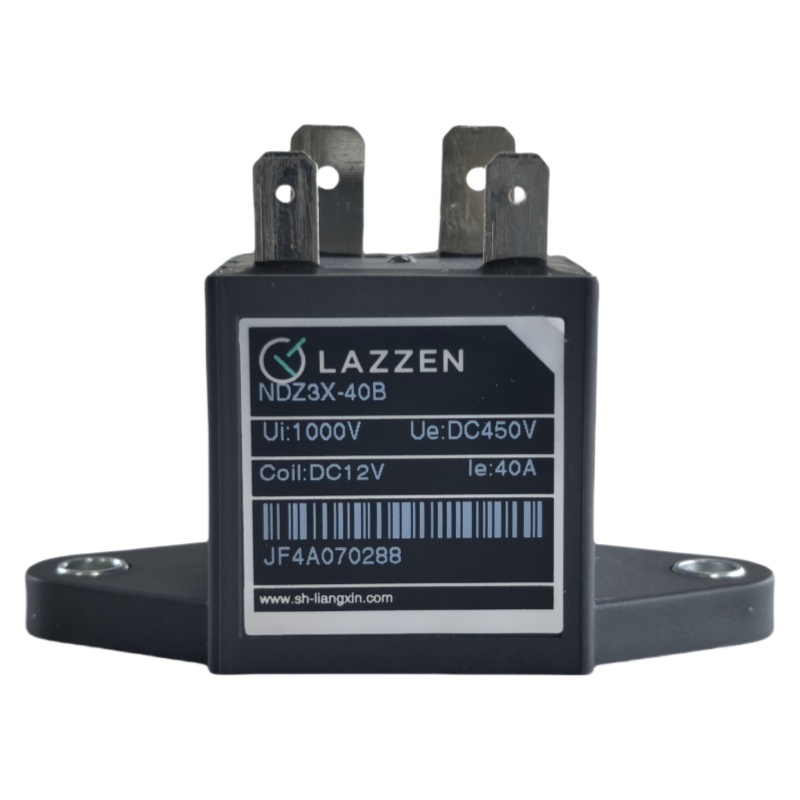

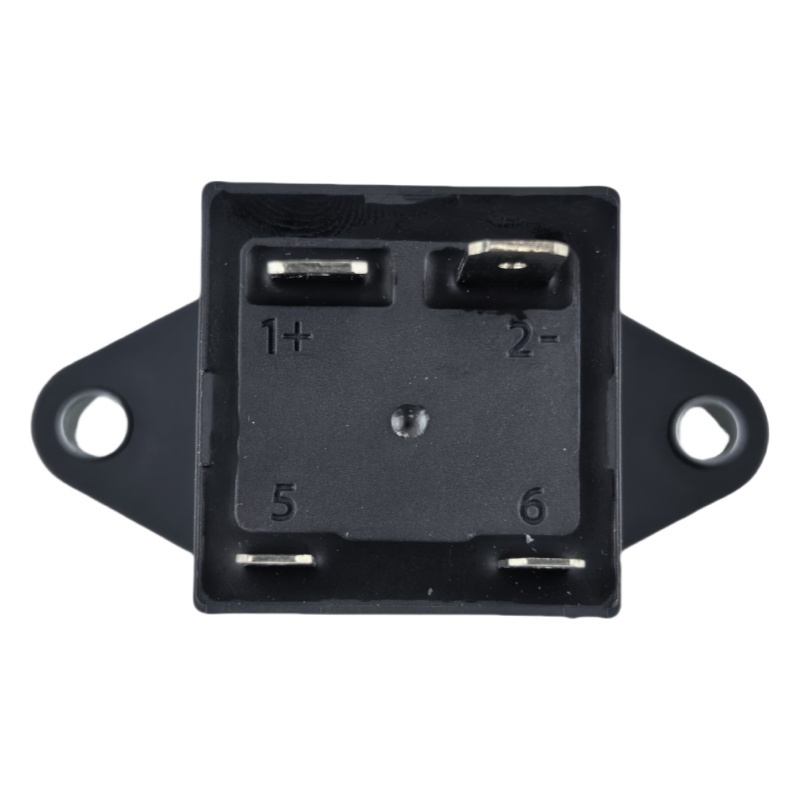

Product Images

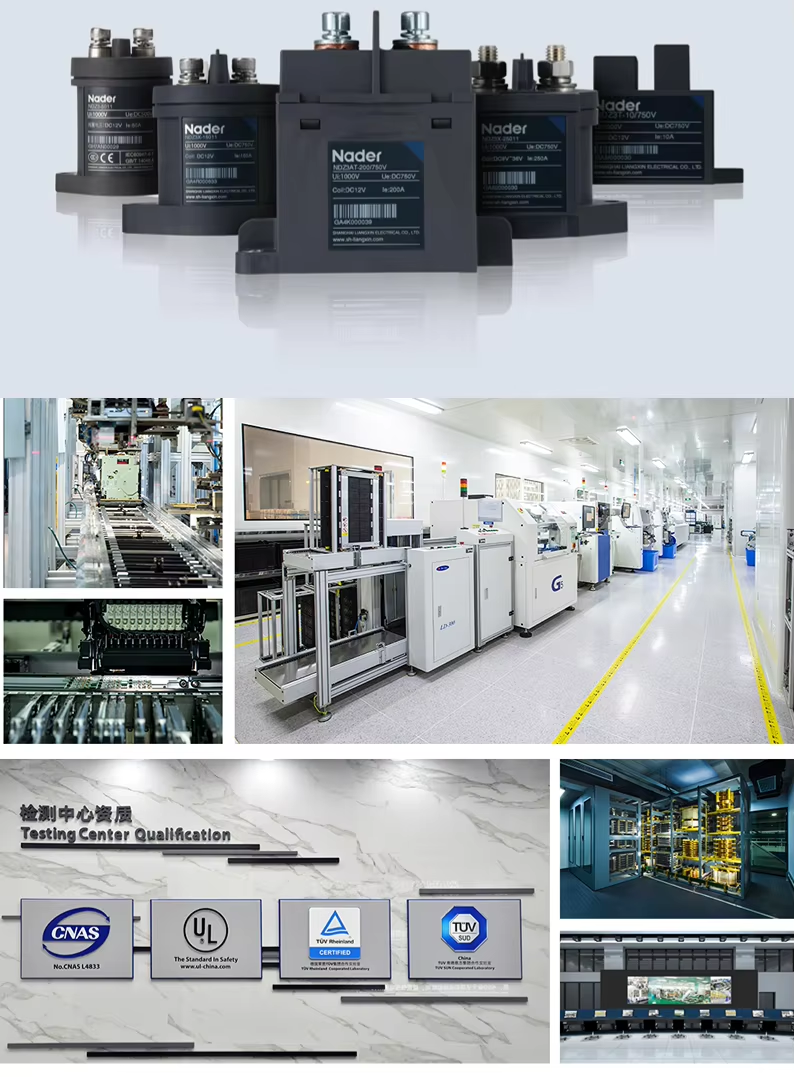

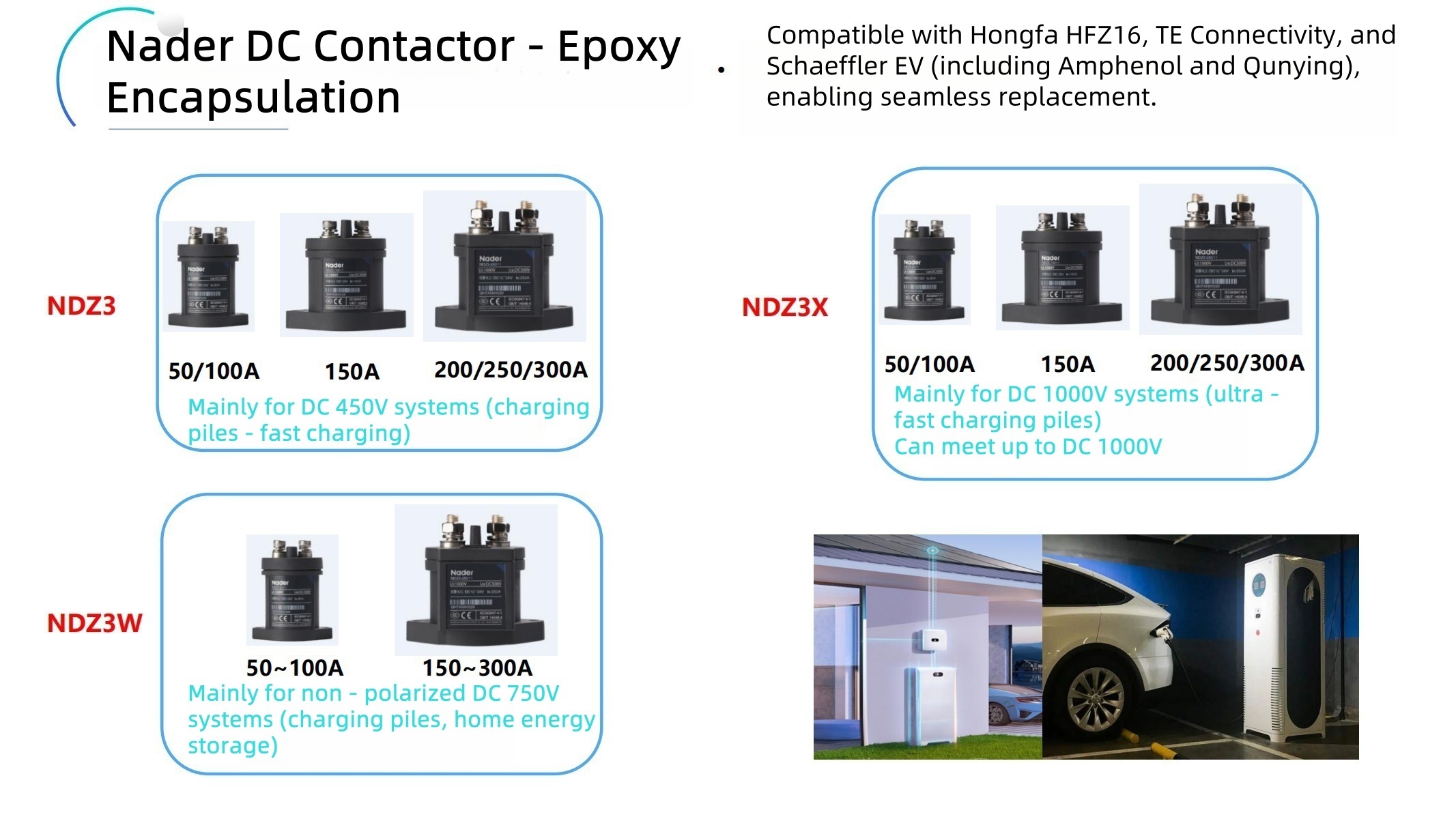

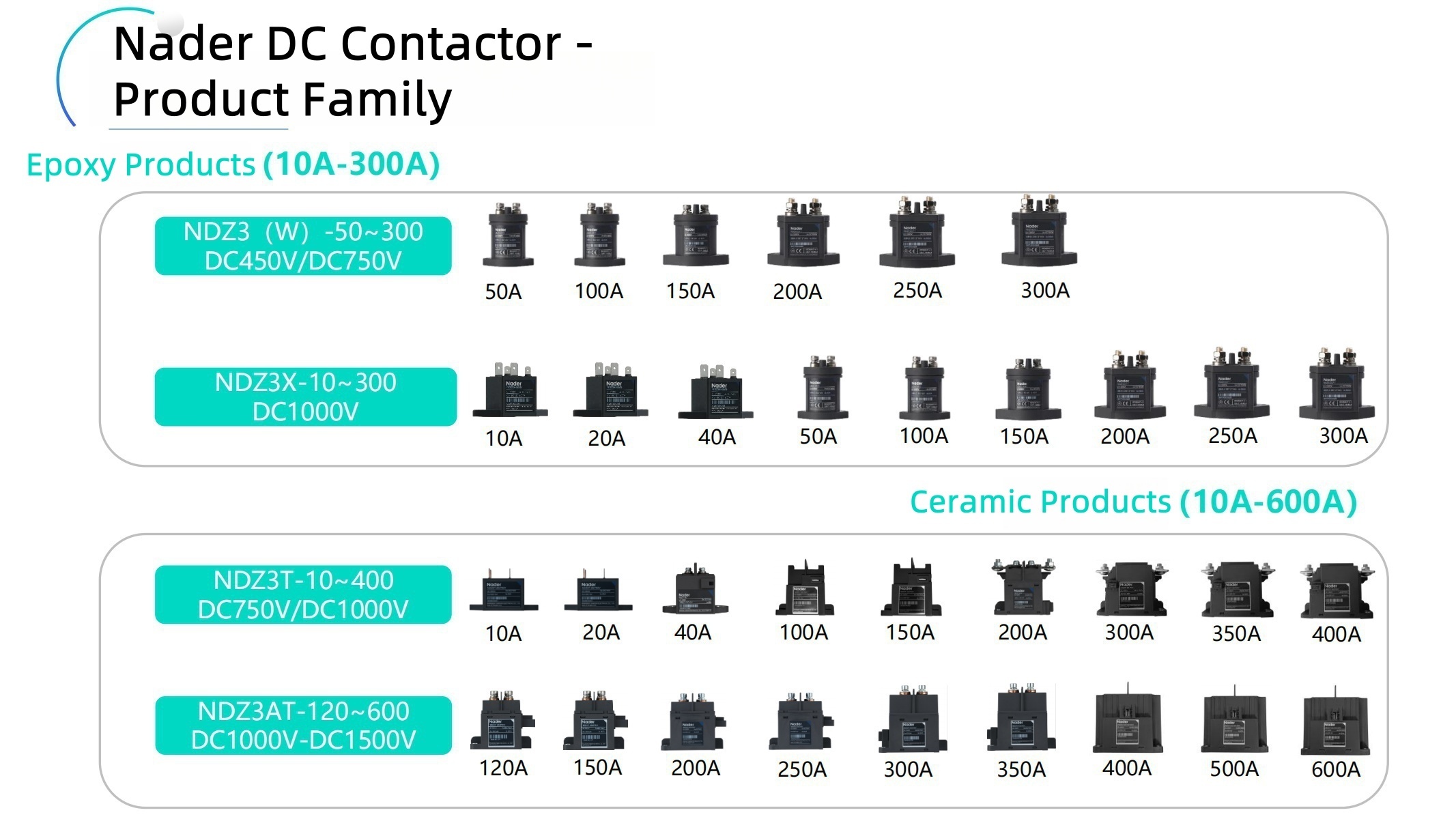

Product Family

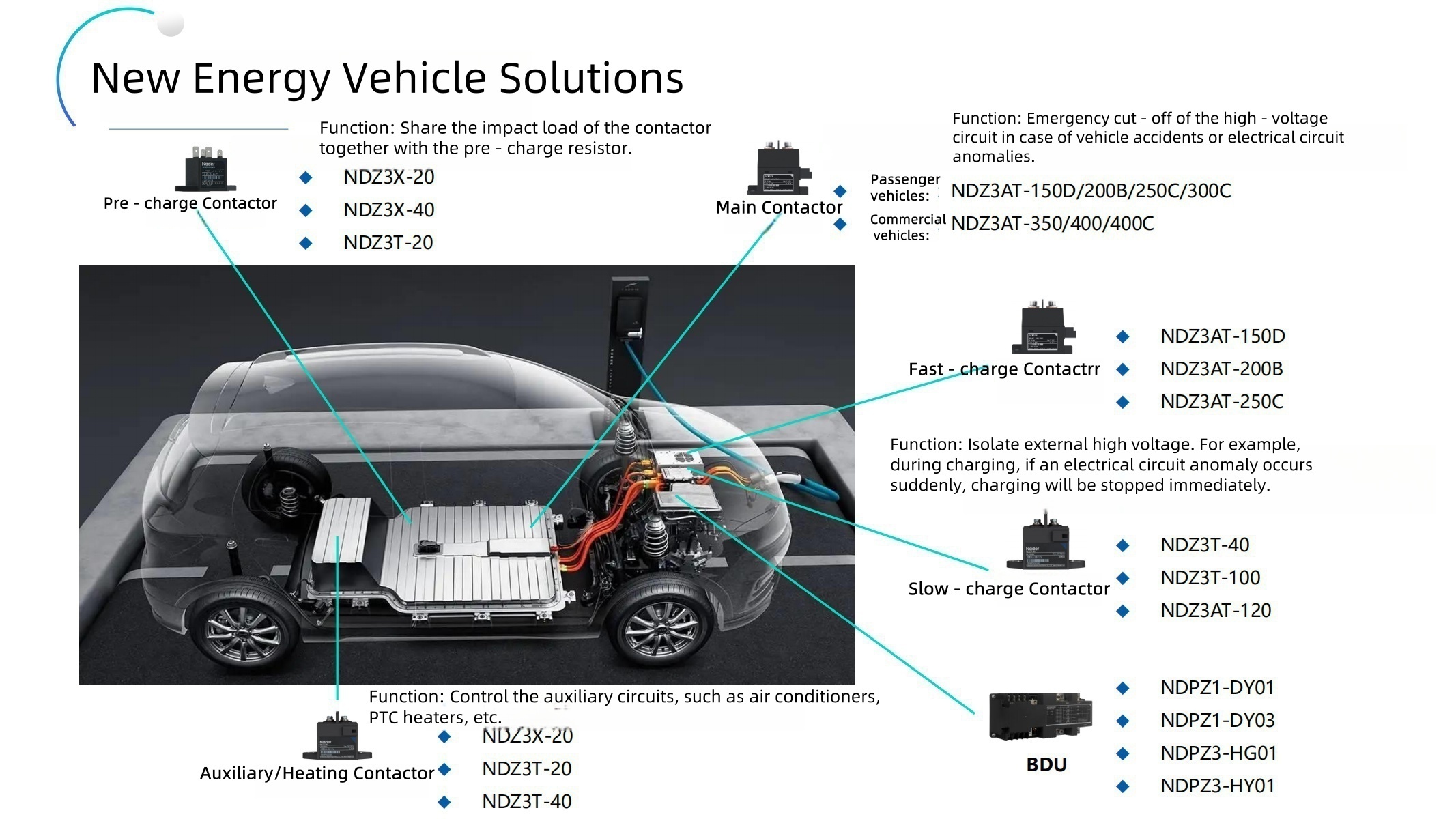

Product Applications

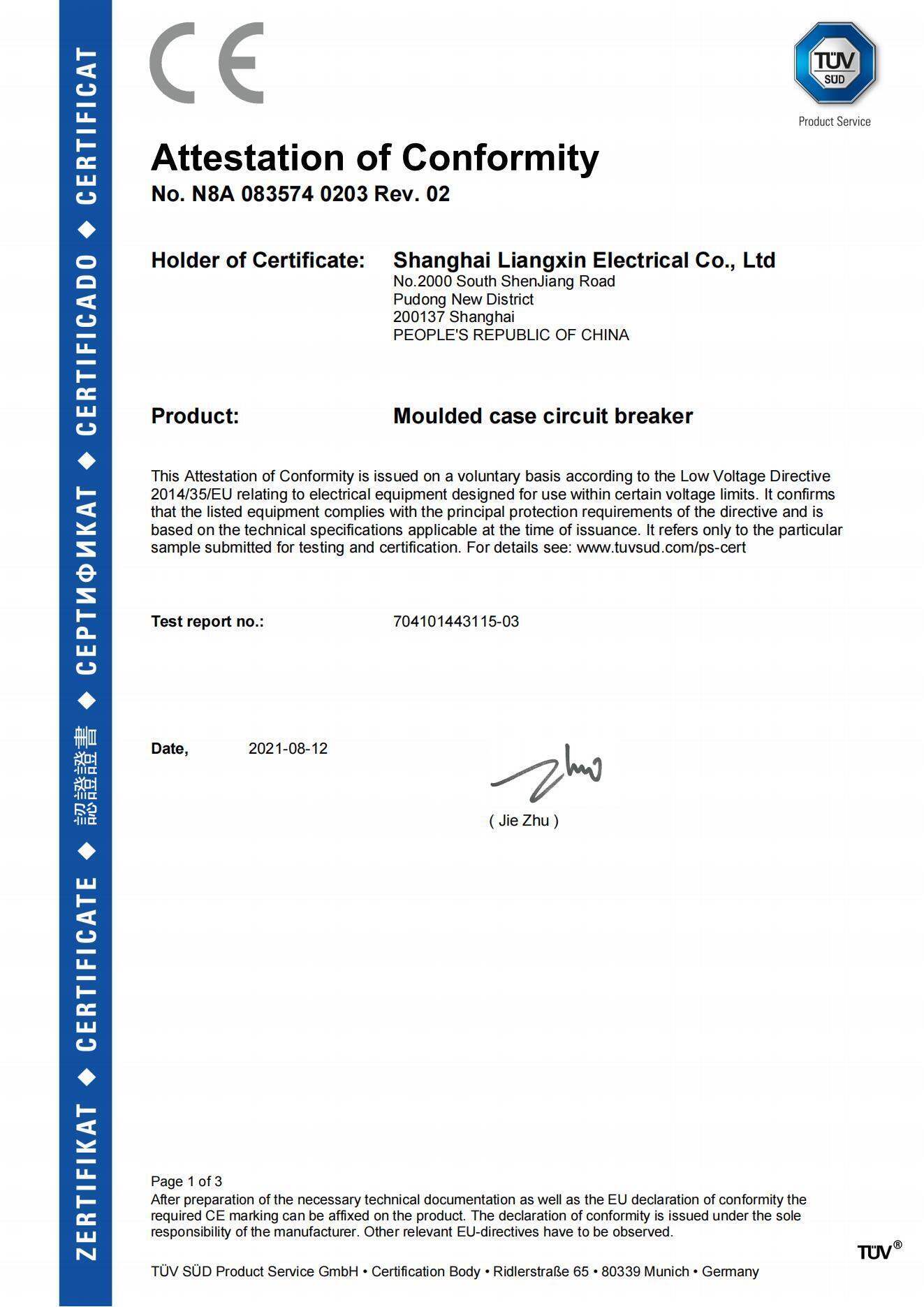

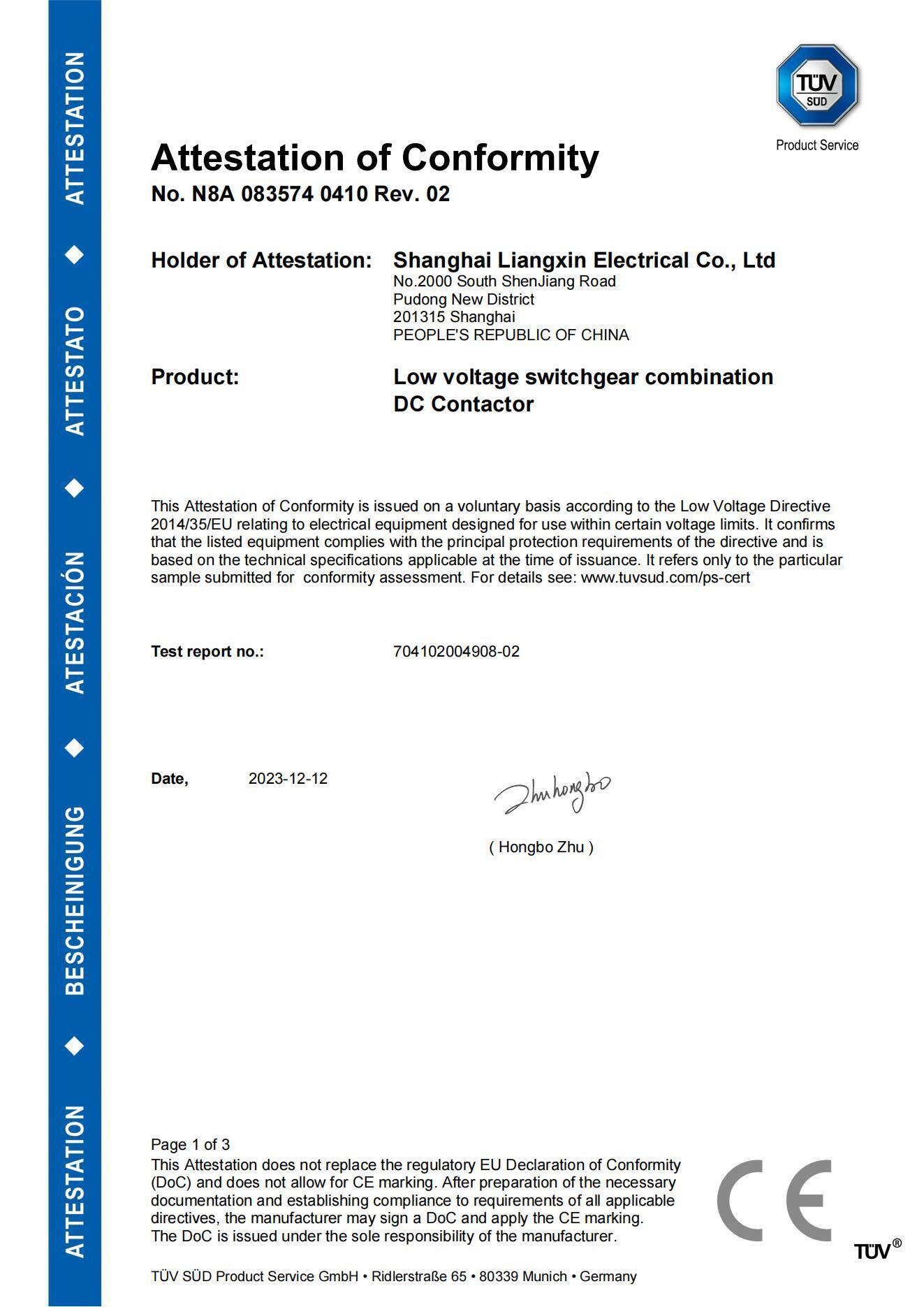

Certificate

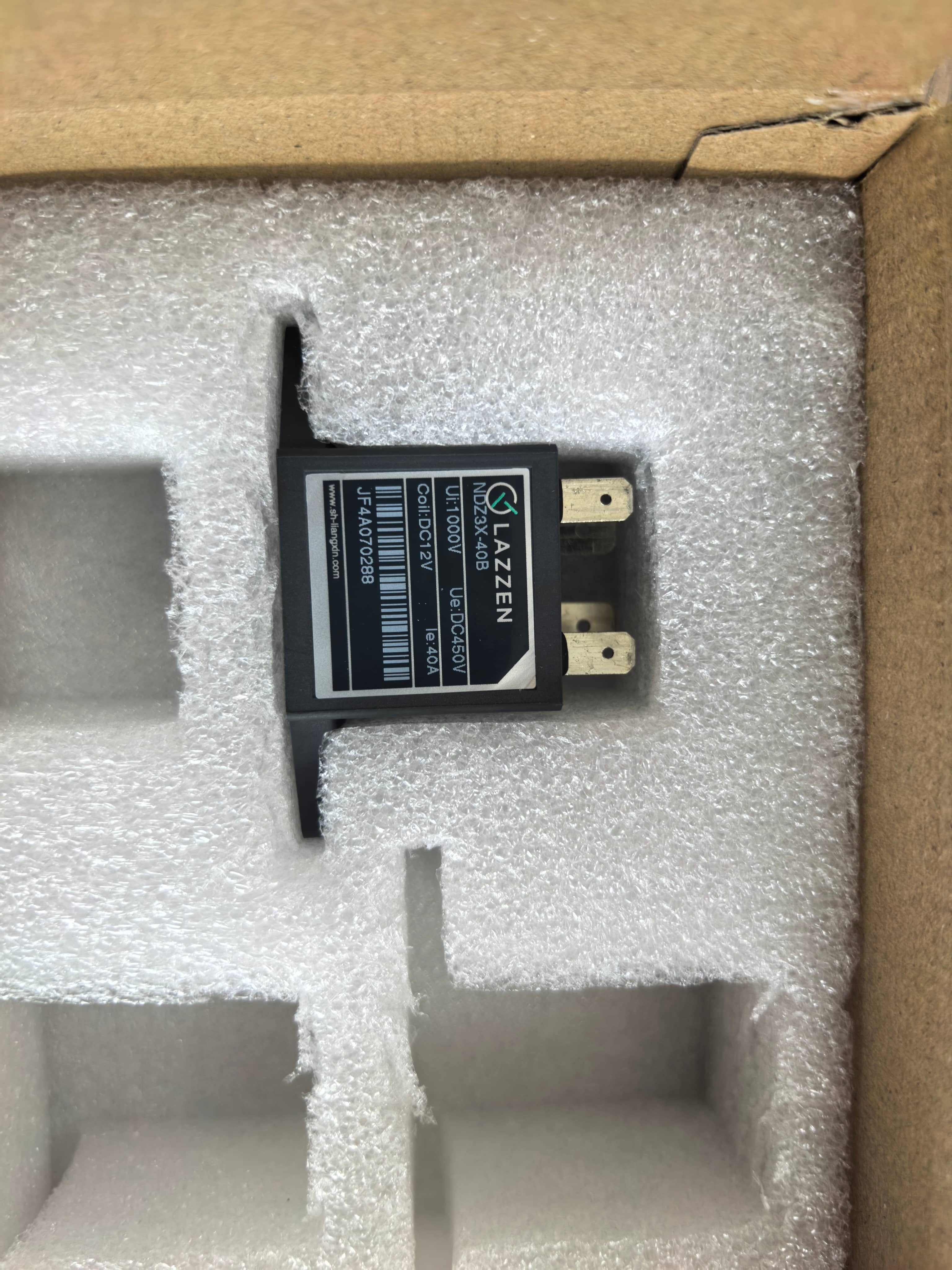

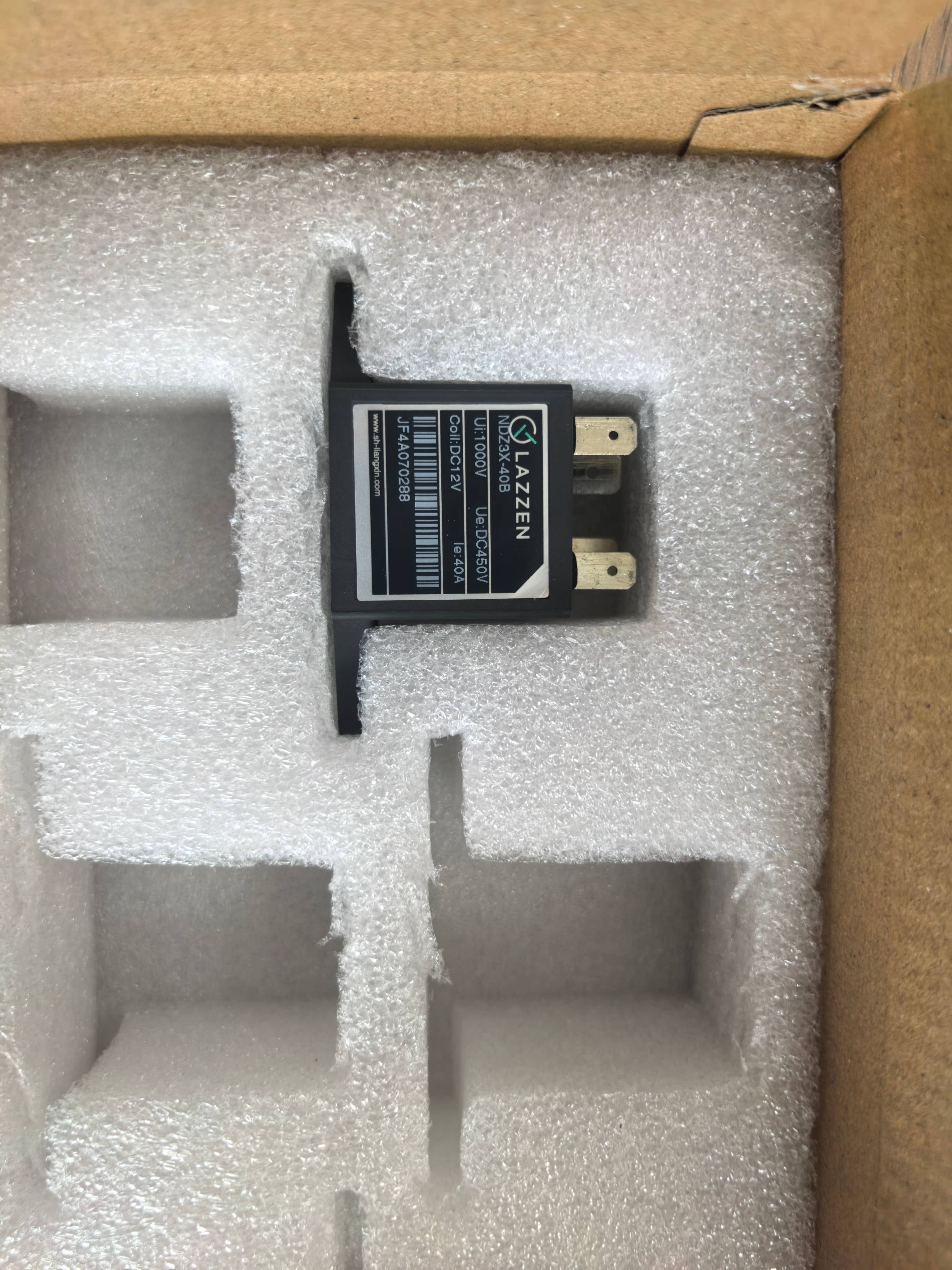

Packing
- Breaking Capacity:
- 40 kA
- Number of Pole:
- 3
- Phase:
- Three
- Model Number:
- NDZ3X-40B
- Brand Name:
- LAZZEN
- Place of Origin:
- Jiangsu, China
- Package type:
- Epoxy package
- Load polarity:
- heteropolarity
- Operating voltage range:
- DC12-1000V
- Contact Resistance:
- ≤0.5mΩ(at40A)
- Control coil:
- DC9-36V
- Auxiliary contact:
- without
- Electrical life:
- 1000000 1200Times
- Weight:
- 460g
- Certification:
- CCC CB CE TUV UL
