Bidirectional DC/DC Power Module IBDC10050 30~100Vdc Parallel Expansion for Energy Storage
Product Parameters
| Product Name | IBDC10050 Bidirectional DCDC Module |
DC bus side | |
| Voltage range | 200 ~ 420Vdc |
| Rated voltage | 370Vdc |
Max Current | 17 Amax (at 200~290 Vdc, ≤12 A) |
| Battery-side | |
| Voltage range | 30~100Vdc |
| Rated voltage | 60Vdc |
| Max Current | 105Amax |
| Power rating | 5kW |
| Steady-current accuracy | ≤±5% |
| Current ripple | ≤±5% |

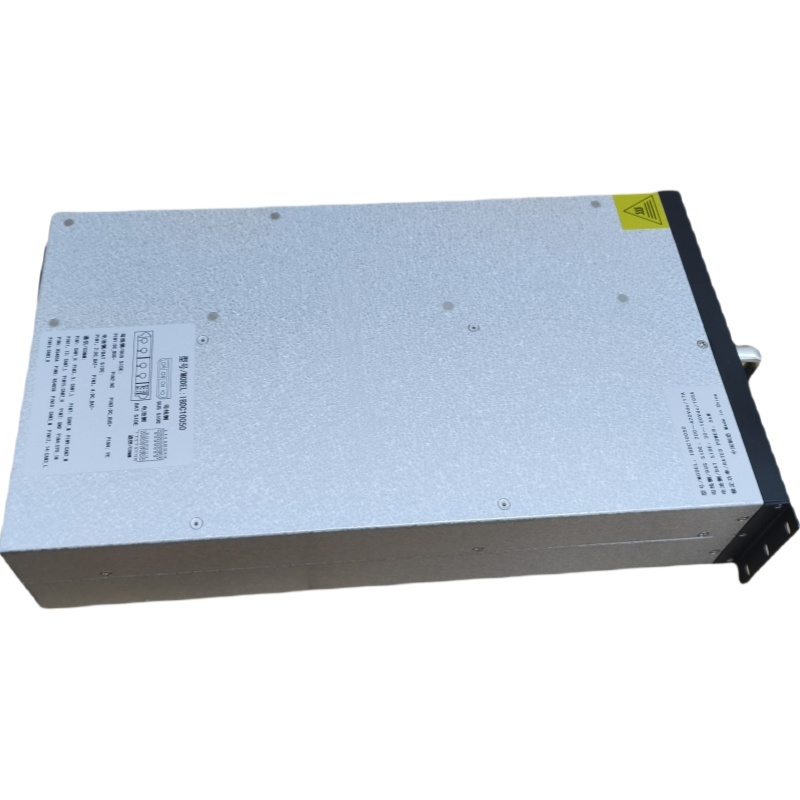

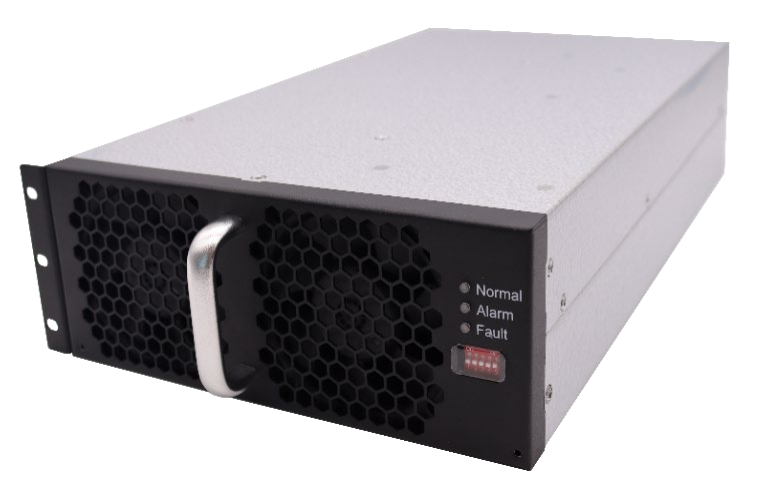

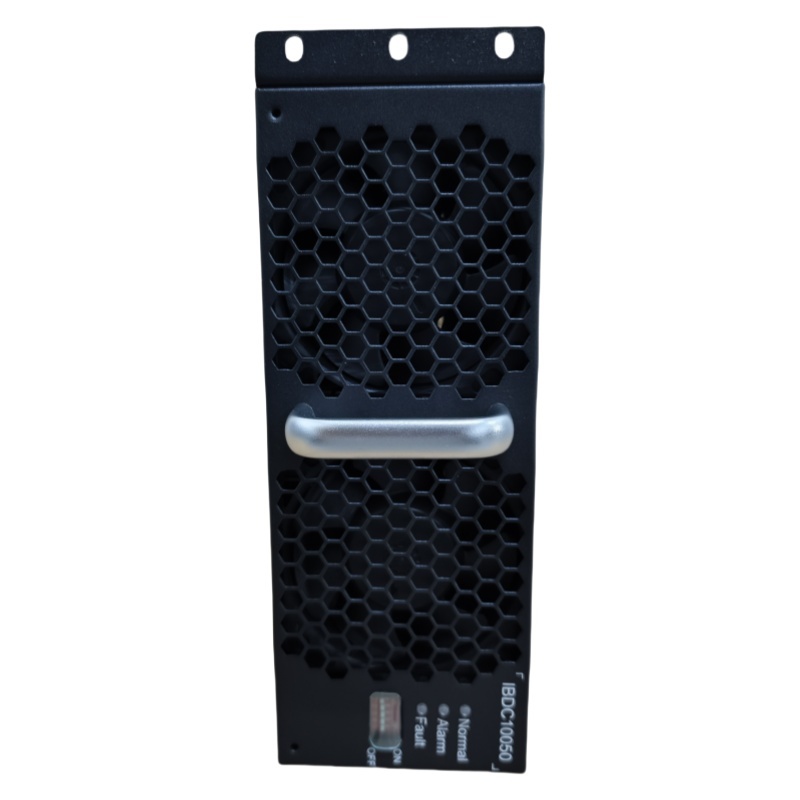

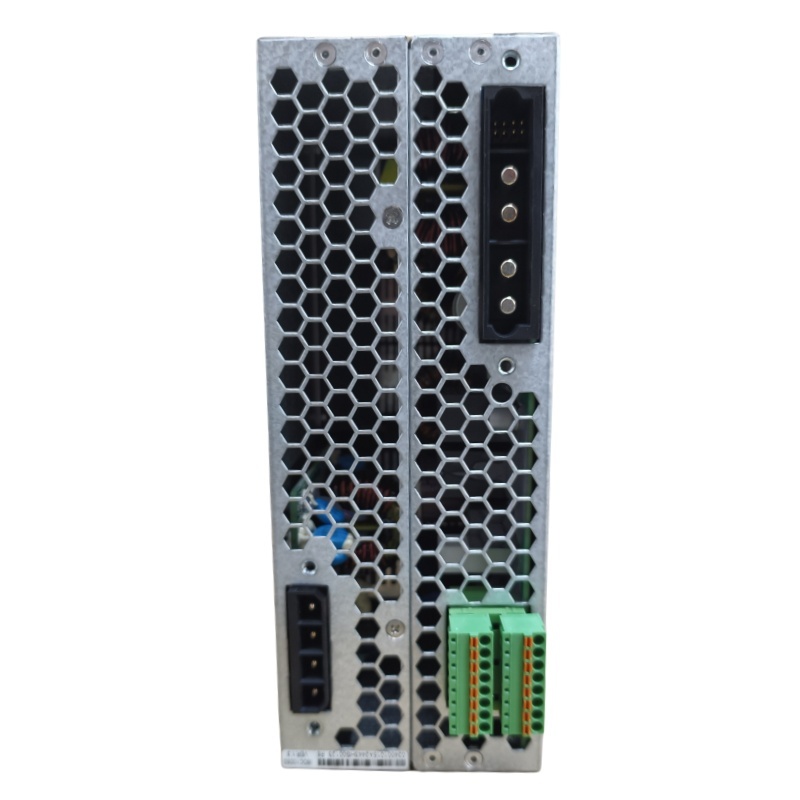

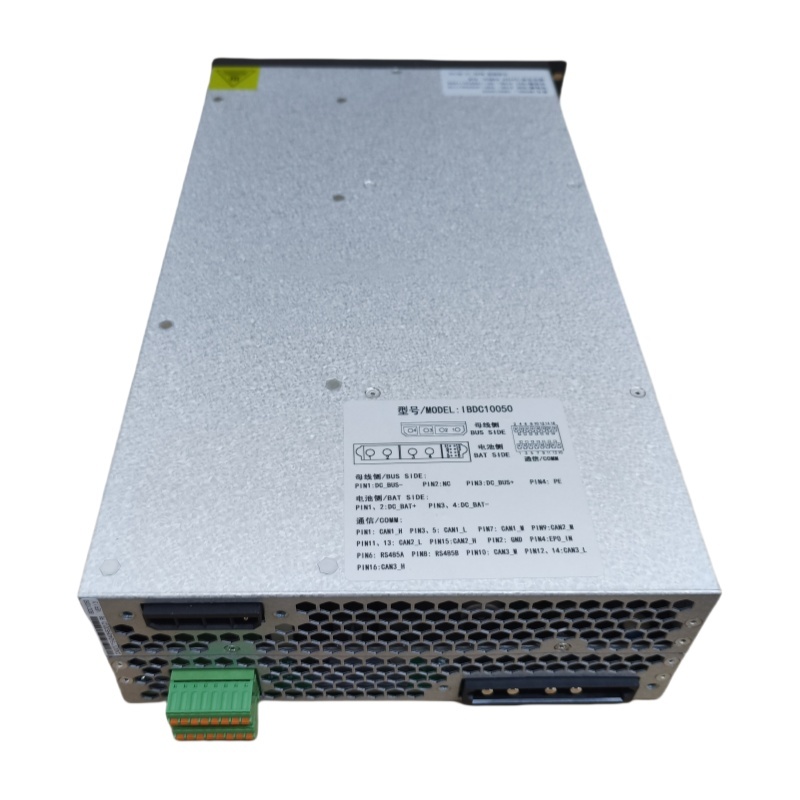

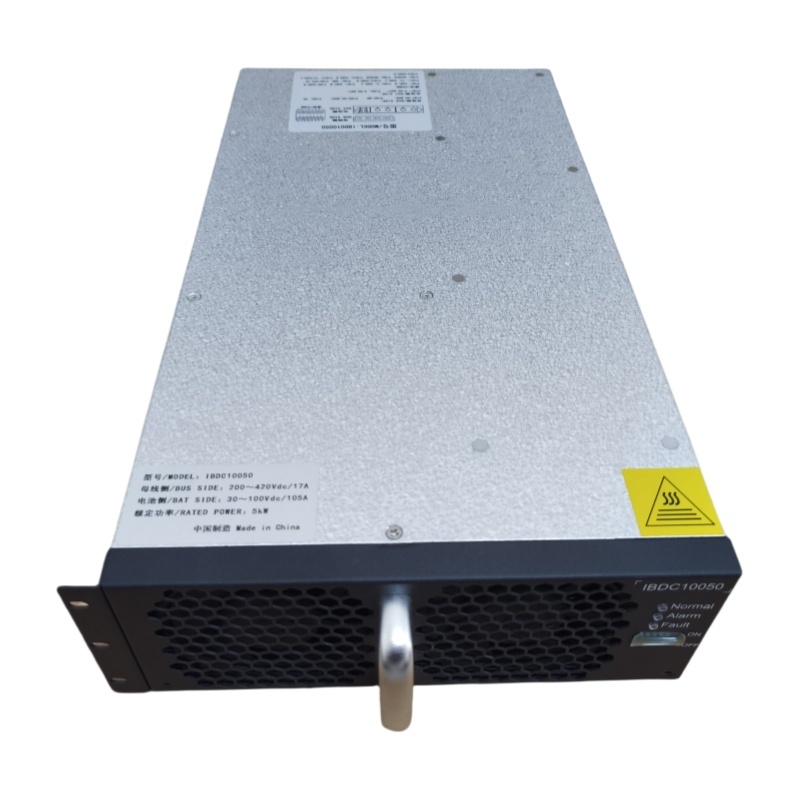

Product Images
- DC bus Voltage range:
- 200 ~ 420Vdc
- DC bus Rated voltage:
- 370Vdc
- DC bus Max Current:
- 17Amax(below 600Vdc,linear current limiting)
- Battery-side Voltage range:
- 30~100Vdc
- Battery-side Rated voltage:
- 60Vdc
- Battery-side Max Current:
- 105Amax
- Power rating:
- 5kW
- Standby power consumption:
- <30W(Vbat=150Vdc,discharge)
