BEC120 1500V120A Energy Storage Battery Stytem Connector

                                                                                     Modle


Paramenter name

BEC120 series

Workplace Temperature

（-40℃～+85℃）

Ingress protection

IP68

Housing

High-strength flame retardant plastic

Rated voltage

1500VDC

Contact

Copper alloy, silver-plated

Rated current

120A Max.

Terminal connection resistor

≤ 0.5 mΩ

Test voltage

6000VDC ; 4000VAC

Minimum number of mating and unplugging cycles

After more than 100 cycles of engagement and disengagement, there are no electrical or mechanical defects.

Salt spray resistance

48 hours, 96 hours

Shield

Without

High-voltage interlocks

Without

Dielectric strength

泄漏电流（DC）≤ 1 mA ; 泄漏电流（AC）≤ 5 mA
Leakage current (DC) ≤ 1 mA ; Leakage current (AC) ≤ 5 mA

Vibration resistant

In each of the three mutually perpendicular planes, after a sinusoidal vibration level with a frequency of 10 to 1000 Hz and an acceleration of 10G, there is no unlocking,and exhibited no mechanical or physical damage. The connection resistance varies continuously by more than 7Ω's for less than 1 ms.

Thermal shock

After 20 test cycles from -40° C to +125° C, there were no cracks, chips, or leaks.

RoHS

Satisfy

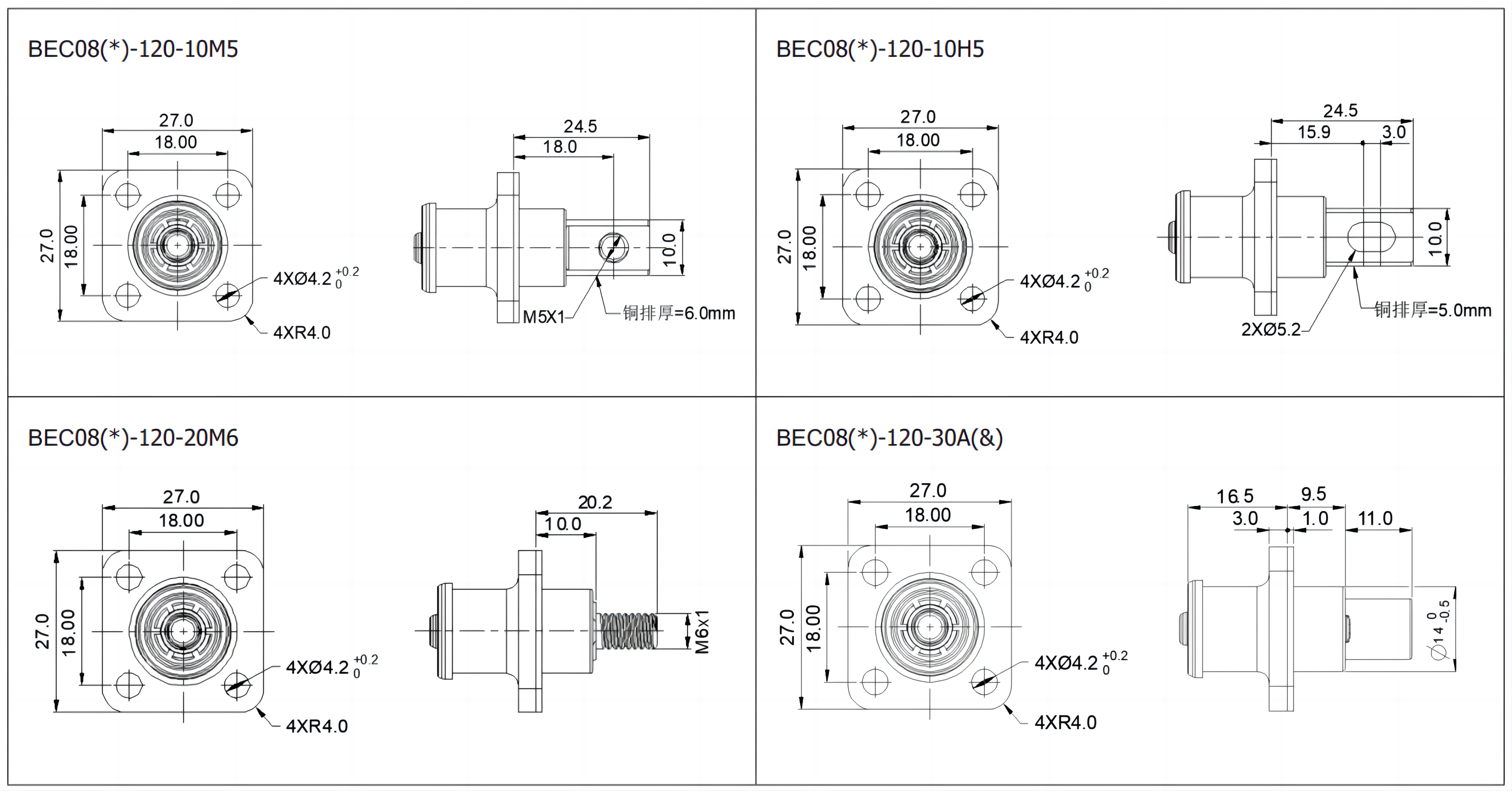

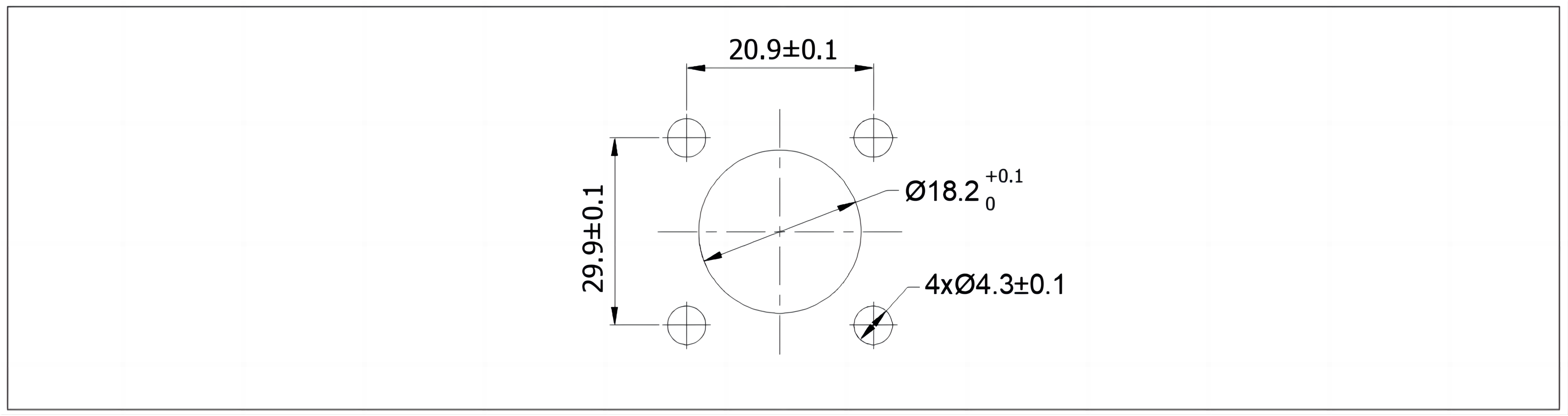

Project

Copper bar type (threaded hole)

Project

Copper bar type (through hole）



Product Code

BEC08(*)-120-10M5

Product Code

BEC08(*)-120-10H5

Project

Stud type

Project

Press-fit type



Product Code

BEC08(*)-120-20M6

Product Code

BEC08(*)-120-30A(&)

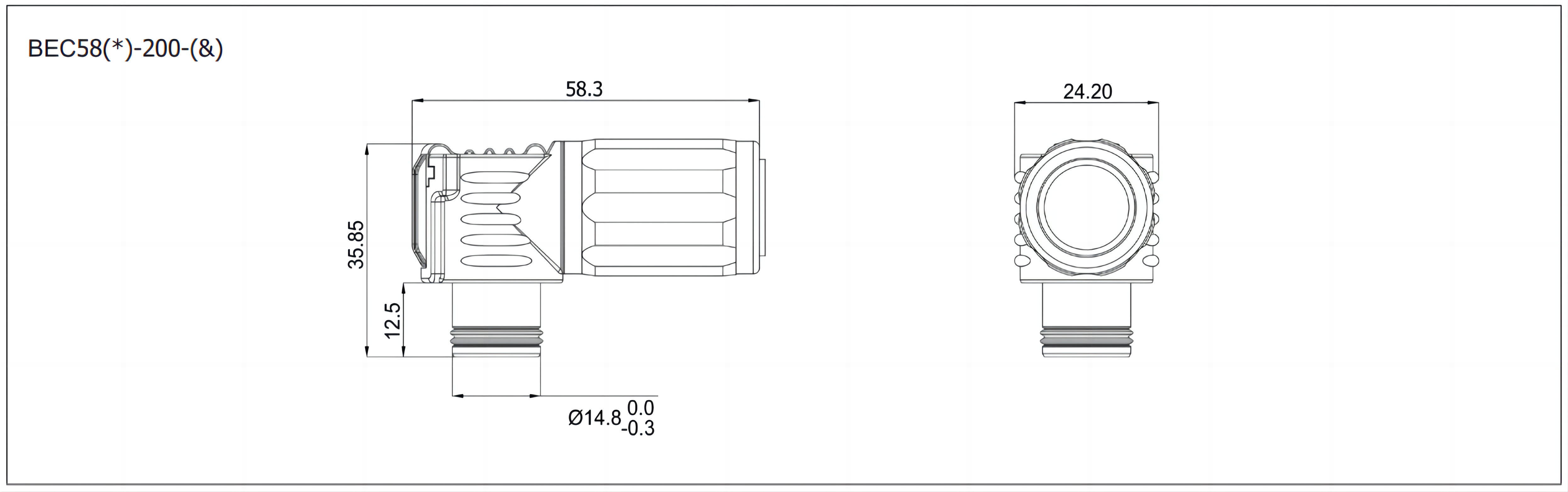

Series

Applicable cable specifications

Rated voltage

Current rating

Product number


120 Series (X-key)

16mm2

1500V

90A

BEC58X-120-16

25mm2

1500V

120A

BEC58X-120-25

120 Series (Y-key)

16mm2

1500V

90A

BEC58Y-120-16

25mm2

1500V

120A

BEC58Y-120-25
