Beiamp
3300W on board charger/ 48V50A/60V35A/72V35A/144V20A/320V10A/Factory supply
stars, based on 1reviews
Product Tag:
board chargerVehicle Charging Lock SystemCAN BUS Interface ChargeFactory supply3300W on board charger/ 48V50A/60V35A/72V35A/144V20A/320V10A/Factory supplyon board chargeron-board chargeron-board charger electric vehiclecharger for electric carElectric Car ChargerShort-circuit protection3KW Off-Board Electric Vehicle Charger1.8KW ChargerEV charger3.3 kw on-board charger for electric vehicle6.6kW charger3300W on board charger/ 48V50A/60V35A/72V35A/144V20A/320V10A/Factory supply
Product Detail Reference
Modle Paramenter name | WT48XX | WT60XX | WT72XX | WT144XX | WT320XX |
Rated voltage | 48V | 60V | 72V | 144V | 320V |
Max output voltage | 68V | 85V | 102V | 168V | 400V |
Max output current | 50A | 35A | 35A | 20A | 10A |
Rated voltage AC | 185-270VAC；45-65Hz | ||||
AC Input Max current | |||||
PF | ≥0.99 | ||||
EffIciency | ≥94% | ||||
Noise | ≤45dB | ||||
IP Rating | IP65 | ||||
Net Weight | 5.8kg | ||||
Operating Temperature | (-30~65℃) | ||||
Storage Temperature | (-40℃~95℃) | ||||
Comoliance | UL/CB/CE/PSE/RCM/FCC/CEC/DOE/CP65 directives | ||||

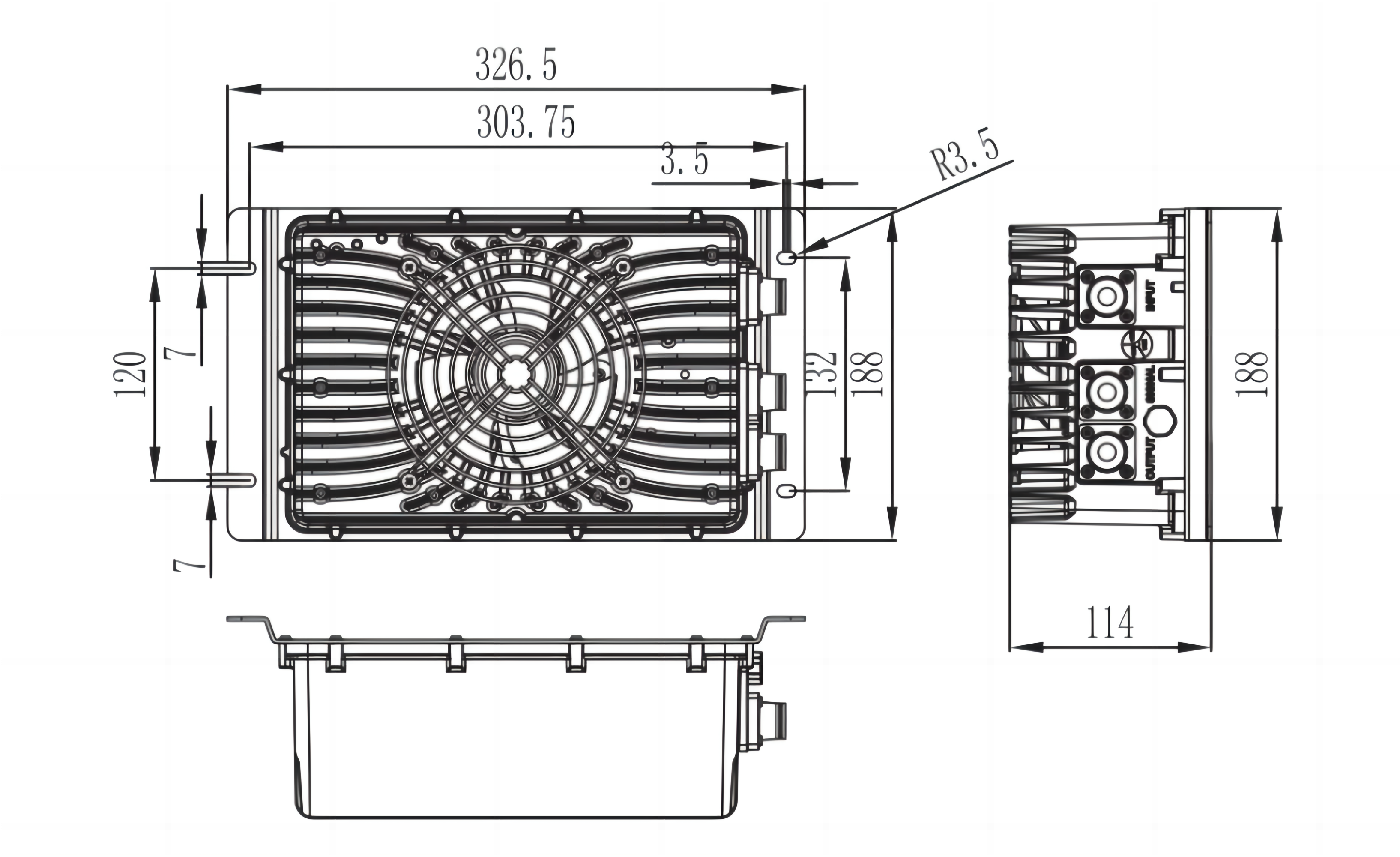

Product Structure Size
- Warranty:
- 3 Years
- Application:
- CAN BUS Interface
- Application2:
- Triple Colors Indicator
- Application3:
- Vehicle Charging Lock System
- Application4:
- Auxiliary power supply for 12V
- Product Name:
- 3300W on board charger/ 48V50A/60V35A/72V35A/144V20A/320V10A/Factory supply
- Brand Name:
- Beiamp
- Model Number:
- WT series
- Place of Origin:
- Jiangsu, China
- Certification:
- UL
- Material:
- Metal
- AC Input:
- 185~270VAC
- Hertz:
- 45~65Hz
- AC Input Max Current:
- 15A
- Power Factor:
- ≥0.99
- Efficiency:
- ≥94%
- Noise:
- ≤45dB
- DC Output Voltage:
- 83V
- DC Output Current:
- 35A
- Battery Type:
- Lifepo4/NMC
