1.5KW TDC DC/DC Electric vehicle marine EV on-board battery charger


                     Modle


Paramenter name

1.5KW TDC - J Series DC/DC

Power

1.5KW

Peak Power

1.8KW for 6 minutes

Output Voltage and Current

13.8V±1%, 110A

Maximum Efficiency

≥94%

Voltage Regulation Rate

1%

Voltage Stabilization Accuracy

 ≤1%

Current Stabilization Accuracy

≤2%

Electromagnetic Compatibility

Complies with GB/T 18655 - 2002

Protection Level

IP67

Operating Temperature

（- 40℃～60℃）

Storage Temperature

（- 40℃～105℃）

Control Method

Controlled via CAN bus or enable line

Protection Functions

Output over - voltage protection, under - voltage protection, short - circuit protection, input reverse - connection protection, over - temperature protection, communication protection

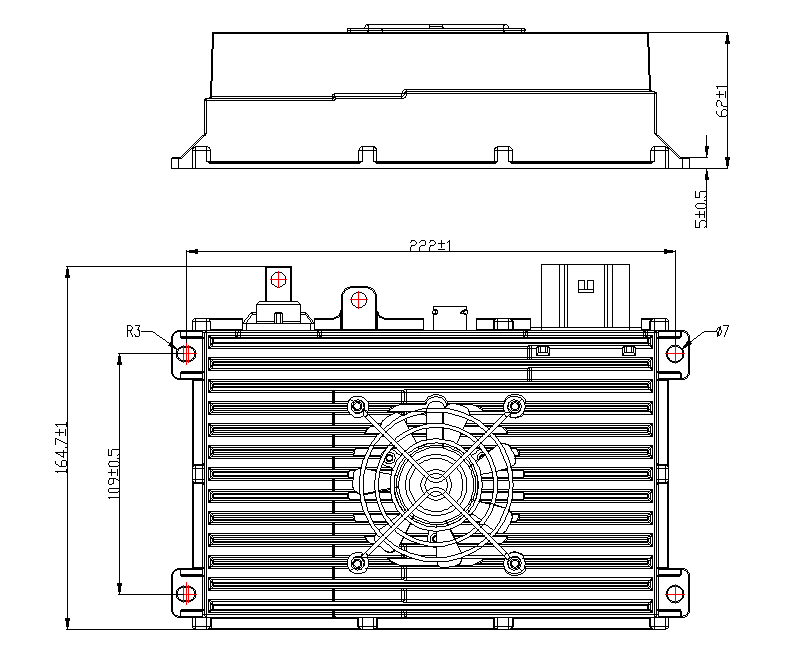

Product Dimensions

241 (Length) x 136 (Width) x 74 (Height) (Natural Cooling)
