2IN1 6.6kw OBC DCDC 1.5K Electric vehicle marine EV
Product Tag:
3kw chargerlithium battery chargerOBC charger3kW/3000W on board charger/ 72V35A/60V35A/48V50A/24V50A/Factory supplyon board chargeron-board chargeron-board charger electric vehiclecharger for electric carFactory supplyElectric Car ChargerShort-circuit protection3KW Off-Board Electric Vehicle Charger1.8KW ChargerEV charger3.3 kw on-board charger for electric vehicle6.6kW charger2IN1 6.6kw OBC DCDC 1.5K Electric vehicle marine EV
Product Detail Reference
Input
Input | Input voltage range | AC 90~265V |
Frequency | 47~63Hz | |
Input Current | ≤32A | |
Power Factor | ≥0.98； @ ≥3300W | |
Starting inrush current | ≤48A |
Output
Voltage Plateform | 144V | 312V | / | / | / | |
Output | Output voltage range | 95~202V | 200~450V | / | / | / |
Max output current | 46A | 20A | / | / | / | |
Output power | 6600W@220VAC；3300W@110VAC | |||||
Output way | CV/CC | |||||
Efficiency | ≥93% | |||||
CV accuracy | ±1% | |||||
CC accuracy | ±2% | |||||
Ripple voltage coefficient | ±5% | |||||
Output voltage rising time | ＜5S，overshoot＜10% | |||||
Shut off response time | Current decreased below 10% in 300ms，and decreased to 0A in 500ms | |||||
Stand-by power consumption | ≤5W | |||||
Low Voltage Output
Low voltage Output | Output way | CV |
Output voltage | 12V | |
Nominal current | 5.5A | |
CV accuracy | ±2% | |
Output Power | ≥66W | |
Ripple voltage coefficient | ≤1% |
Low Voltage Interface
Low Voltage Interface | CAN Communication | yes |
Baud rate | Optional for 125Kbps、250Kbps、500Kbps | |
Terminal resistance | Not available |

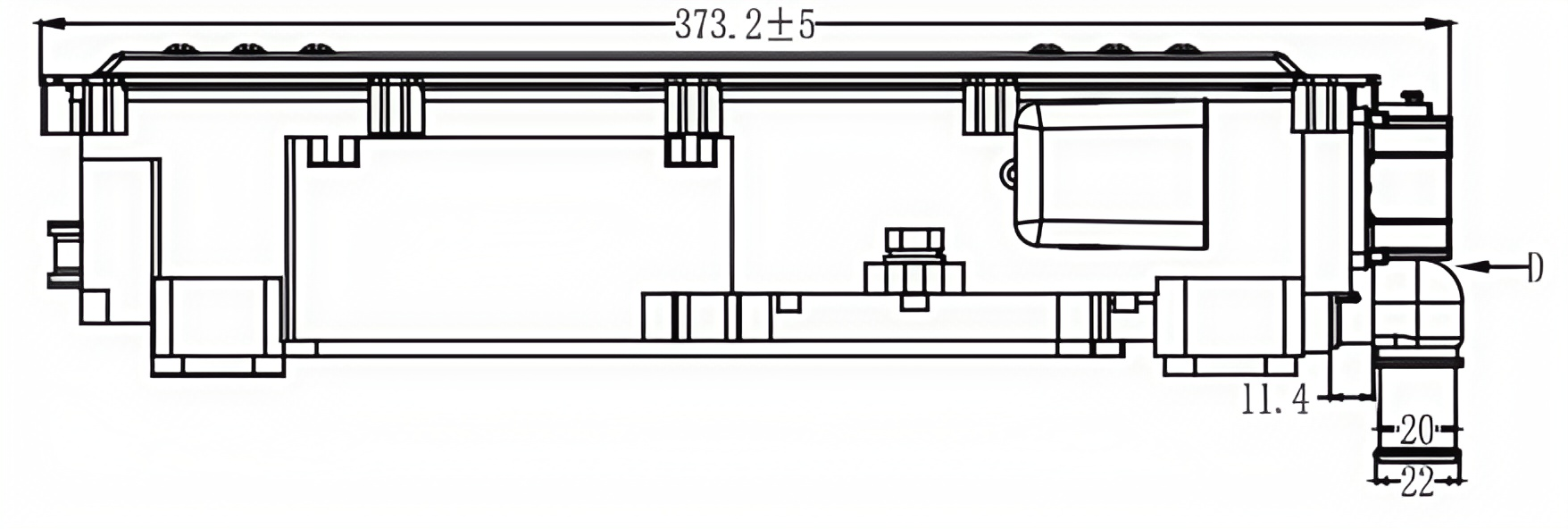

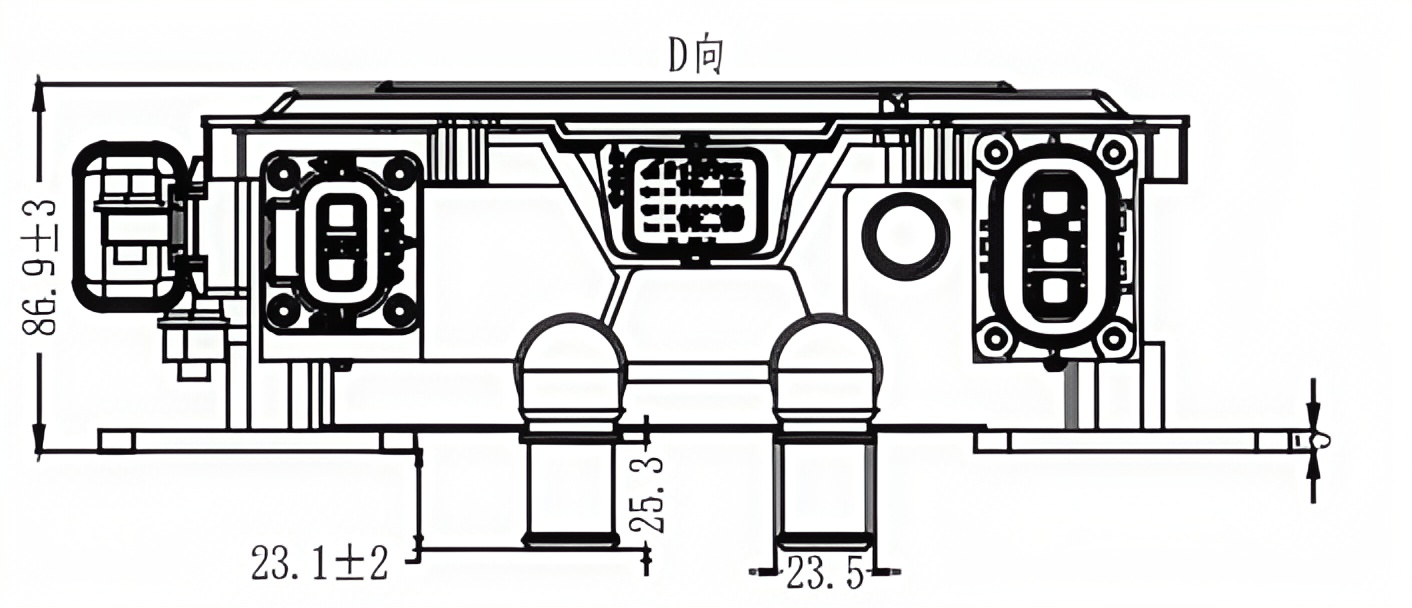

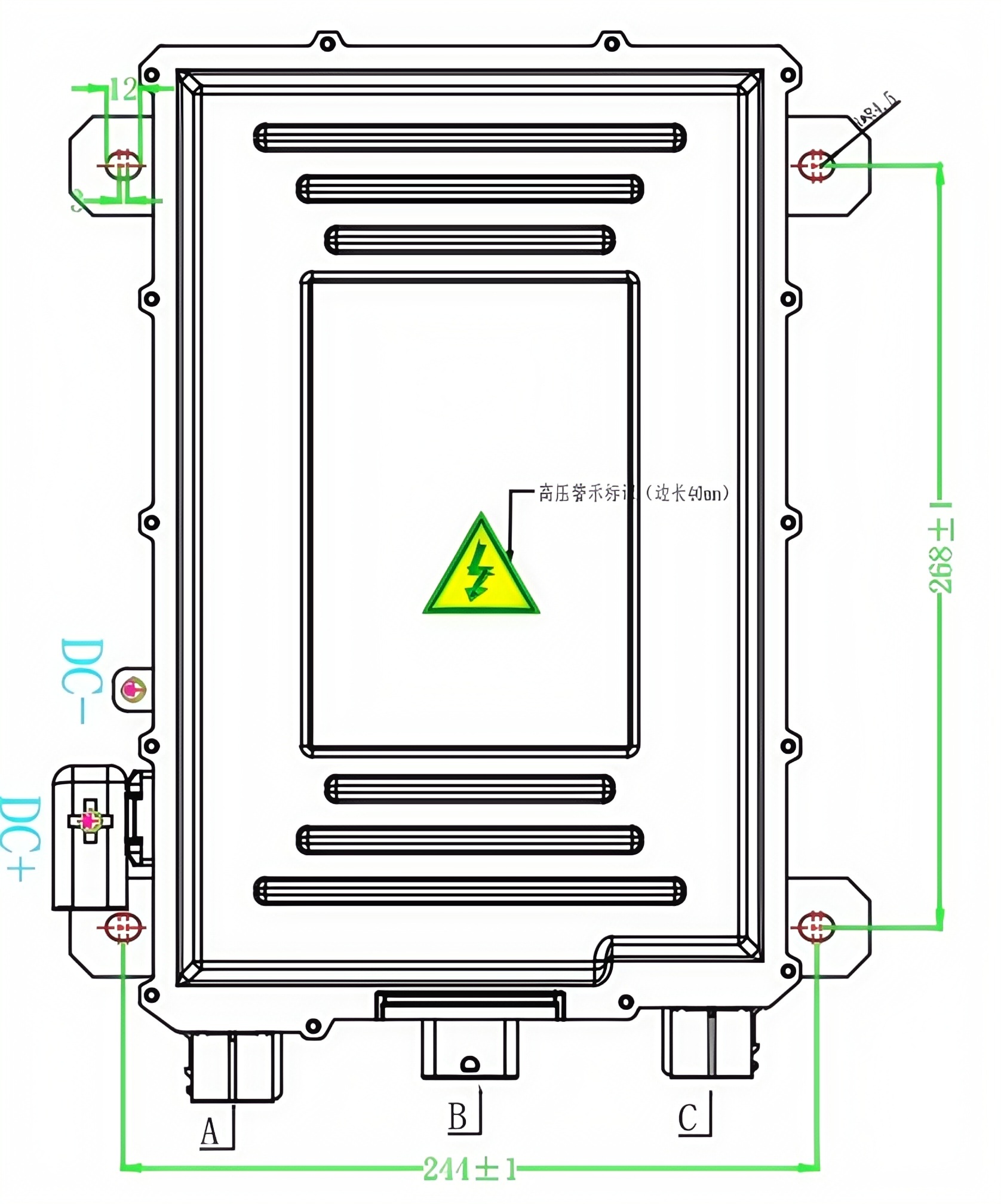

Product Structure Size
- Warranty:
- 2 Years
- Application:
- Electric
- Product Name:
- OBC
- Brand Name:
- Beiamp
- Model Number:
- V62320
- Place of Origin:
- Jiangsu, China
- Certification:
- UL/CB/CE/PSE/RCM/FCC/CEC/DOE
- AC Input:
- 200~450VDC
- Hertz:
- 45-65 Hz
- Input voltage range:
- 90~264 VAC /304-456 VAC
- Power Factor:
- ≥0.99
- Efficiency:
- ≥ 0.99 @Rated input and output
- Max. input current:
- 32 A/ 16 A
- Output voltage range:
- 200~450Vdc
- Output voltage accuracy:
- ≤ ±1%
- Output voltage ripple coefficient:
- ≤±5%
