Beiamp
1.2kW/1200W on board charger/ 72V20A/60V25A/48V25A/24V25A/Factory supply
stars, based on 0reviews
Quantity
Price
10+
$183.08
100+
$163.18
Product Tag:
1.2Kw Charger Charger for boradlithium battery charger1.2kW/1200W on board charger/ 72V20A/60V25A/48V25A/24V25A/Factory supplyon board chargeron-board chargeron-board charger electric vehiclecharger for electric carFactory supplyElectric Car ChargerShort-circuit protection3KW Off-Board Electric Vehicle Charger1.8KW ChargerEV charger3.3 kw on-board charger for electric vehicle6.6kW chargerProduct Detai Reference
|
Modle |
1200CG24XX |
1200CG48XX |
1200CG60XX |
1200CG72XX |
1200CG84XX |
|
|
|
Rated voltage |
24V |
48V |
60V |
72V |
84V |
||
|
Max output voltage |
34V |
60V |
73V |
88V |
103V |
||
|
Max output current |
25A |
25A |
25A |
20A |
15A |
||
|
Rated voltage AC |
110~250VAC;50/60Hz |
||||||
|
AC Input Max current |
|||||||
|
PF |
≥0.99 |
||||||
|
EffIciency |
≥90% |
||||||
|
Noise |
≤45dB |
||||||
|
IP Rating |
IP65 |
||||||
|
Net Weight |
2.2kg |
||||||
|
Operating Temperature |
(-30~65℃) |
||||||
|
Storage Temperature |
(-40℃~95℃) |
||||||
|
Comoliance |
UL/CB/CE/PSE/RCM/FCC/CEC/DOE/CP65 directives |
||||||

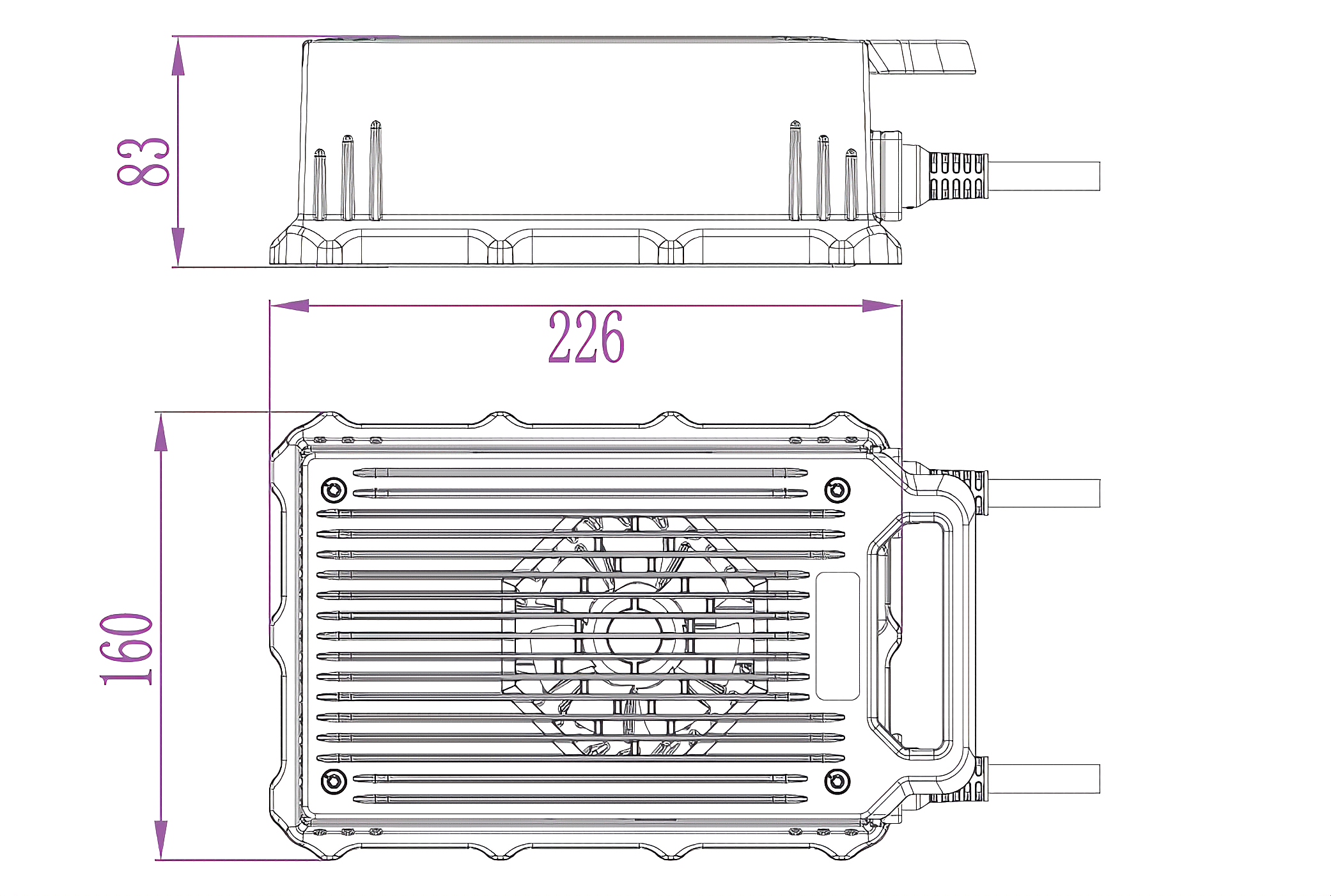

Product Structure Size
- Warranty:
- 2 Years
- Application:
- CAN BUS
- Application2:
- Auxiliary Power
- Application3:
- Vehicle Charge Interlock
- Application4:
- External Indicator
- Application5:
- Infrared
- Product Name:
- 1.2kW/1200W on board charger/ 72V20A/60V25A/48V25A/24V25A/Factory supply
- Brand Name:
- Beiamp
- Model Number:
- WT series
- Place of Origin:
- Jiangsu, China
- Certification:
- UL/CB/CE/PSE/RCM/FCC/CEC/DOE
- AC Input:
- 110~240VAC
- Hertz:
- 50Hz/60Hz
- AC Input Max Current:
- 12A@120VAC 6A@240VAC
- Power Factor:
- ≥0.99
- Efficiency:
- ≥90%
- Noise:
- ≤45dB
- DC Output Voltage:
- 84V
- DC Output Current:
- 20A
- Battery Type:
- Lifepo4/NMC
