ALQ EVQ100 magnetic relays High Voltage DC Contactor 100Amps

stars, based on 0reviews

$29.00 piece

Battery Type

Quantity Price

10+ $26.97

100+ $25.81

Product Detai Reference

Modle Paramenter name		EVQ100




Rated current		100A
Rated current		100A
Rated voltage		DC750V、DC1000V、DC1500V
Rated voltage		DC750V、DC1000V、DC1500V
Insulation voltage		≤50MΩ DC1000V
Insulation voltage		≤50MΩ DC1000V
Number of poles		Single pole
Number of poles		Single pole
Type of circuit		DC
Type of circuit		DC
Mechanical life		200,000 times
Mechanical life		200,000 times

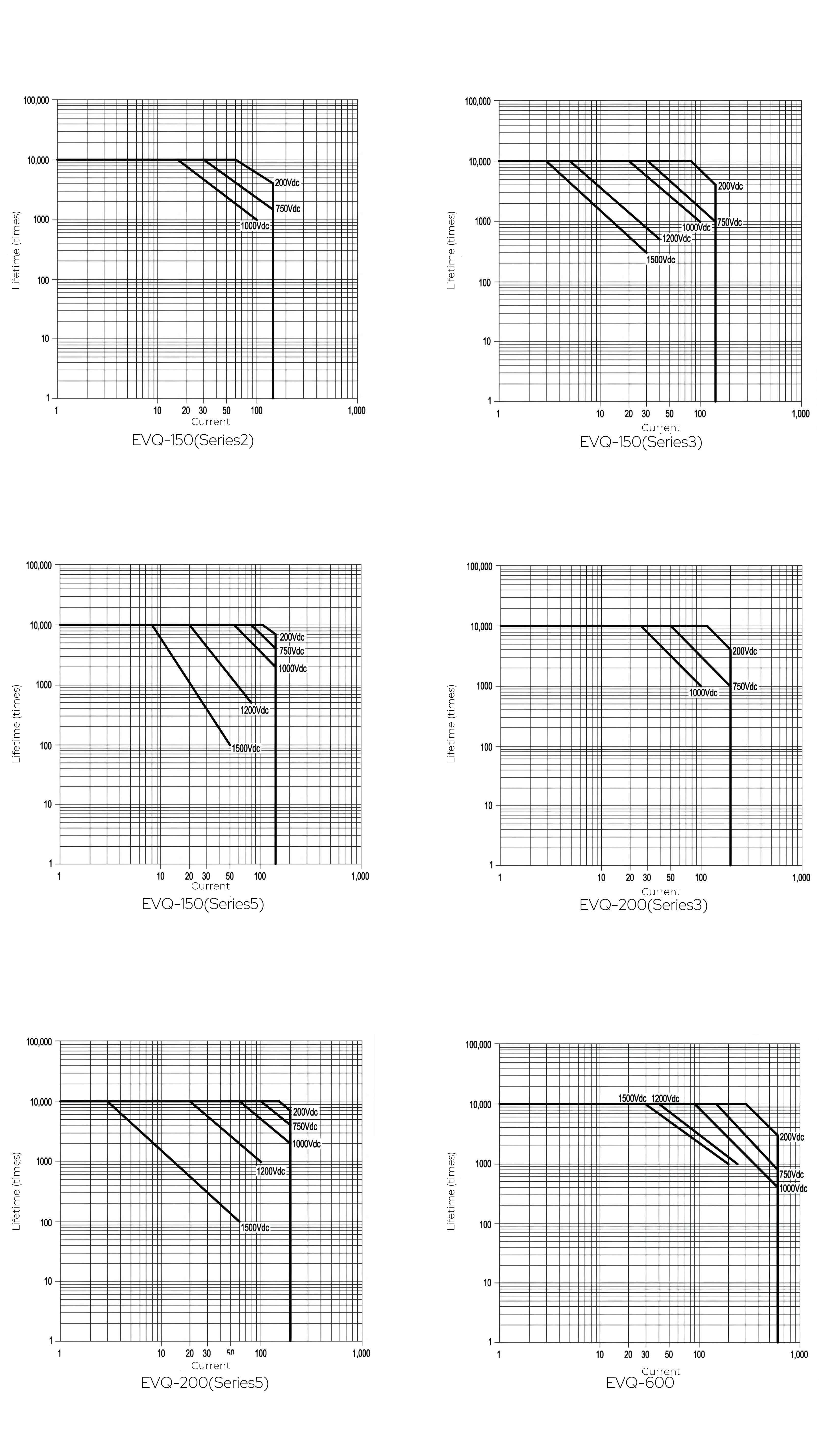

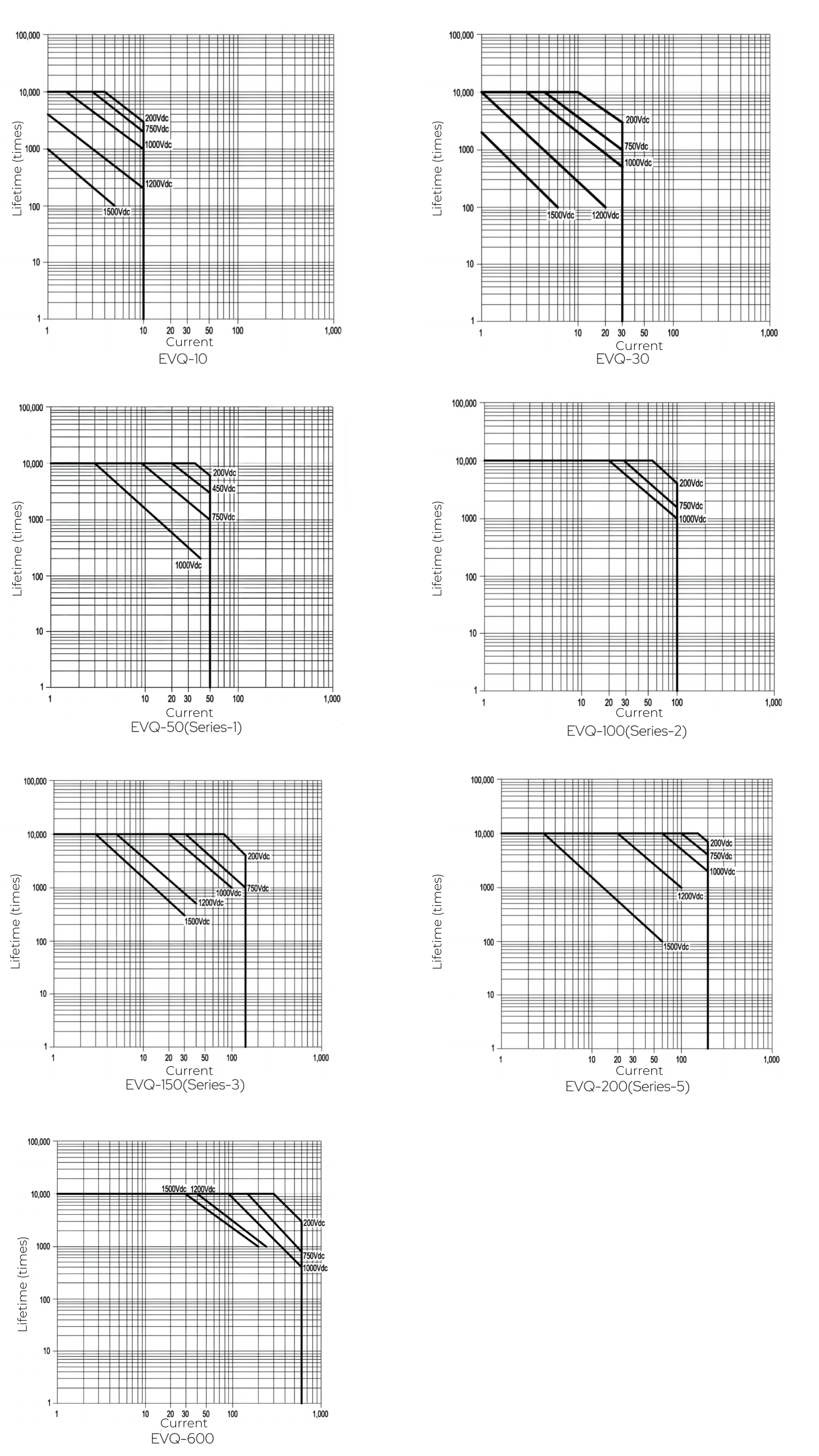

Electrical life(Switching Rating ,ON : OFF=1s:9s)	DV750V	100A,2500times




	DV1500V	15A,100imes




Contact Arrangement		1 Form A (SPST-NO)


Contact Polarized		Nonpolarized
Contact Polarized		Nonpolarized
Withstand voltage		AC 3500 Vrms/10mA 60s
Withstand voltage		AC 3500 Vrms/10mA 60s
Operate Time		30ms(Include bounce)
Operate Time		30ms(Include bounce)
Release Time		12ms(Include bounce)
Release Time		12ms(Include bounce)
Bounce Time		5ms


Auxiliary contact type		Without
Auxiliary contact type		Without
Workplace Temperature		（-40℃～+85℃）


Dielectric Strength	Between open contact	AC 3500 Vrms/10mA/1min
	Between open contact
	Between Contacts and Co

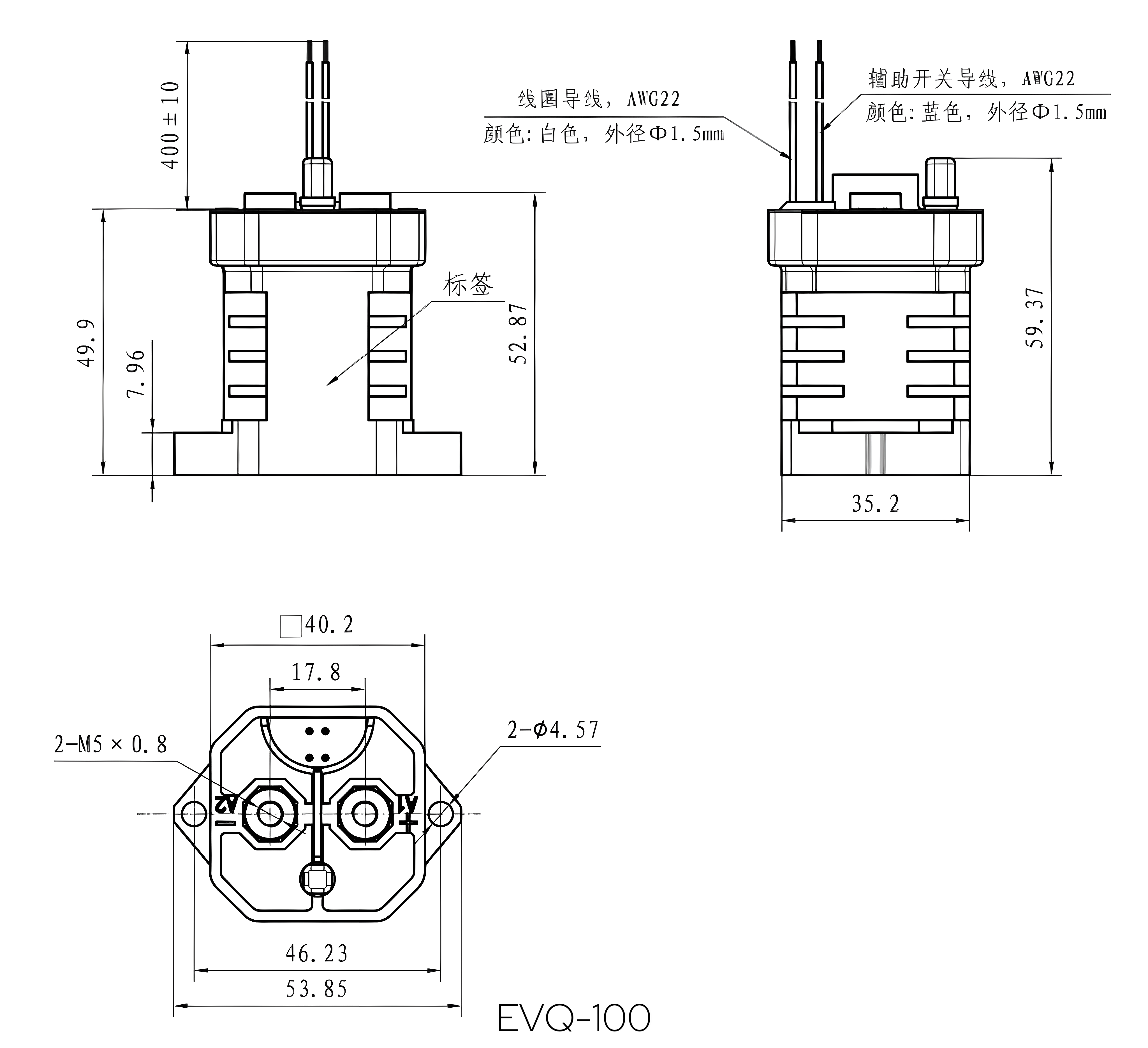

Product Dimension Drawing
